IMAGEN DE REFERENCIA

MD1-F000 FILTRO , 25 MICRAS, SIN CONEXION

0 Reseñas(s)
MD1-F000

FILTRO , 25 MICRAS, SIN CONEXION

MD1-F000

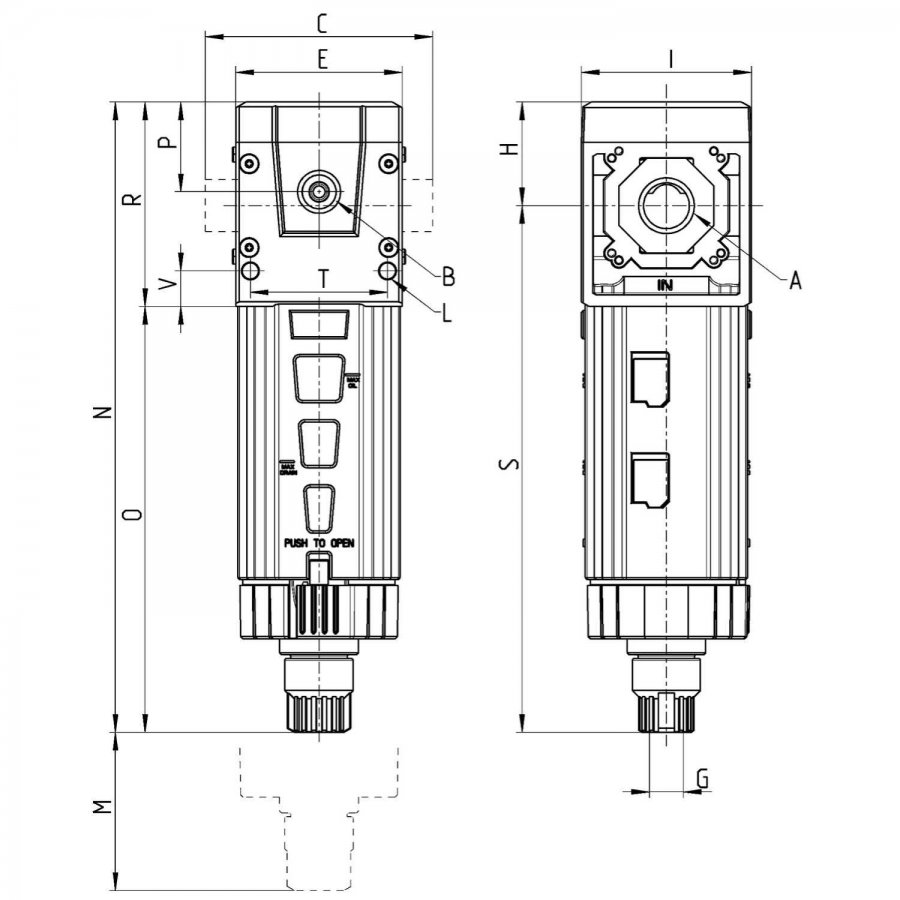

Series MD filters - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A B C E G H I L M N O P R S T V Weight (Kg)
MD1-F000 - G1/8 42 42 G1/8 26.2 43 Ø4 90 159.4 107.7 22.7 51.7 133.2 34.6 9 0.2
Series general data

Construction modular, compact with filtering element in HDPE
Materials see TABLE OF MATERIALS on the following page
Ports with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Condensate capacity 24 cm³
Fixing vertical in-line; wall-mounting by means of through holes in the body or with a support bracket
Operating temperature -5°C ÷ 50°C up to 16 bar
Condensate drain semi-automatic manual, automatic protected depressurisation, direct G1/8 exhaust
Quality of delivered air according to ISO 8573-1:2010 Class 6.8.4 with 5 µm filtering element Class 7.8.4 with 25 µm filtering element
Operating pressure 0.3 ÷ 16 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Fluid compressed air
