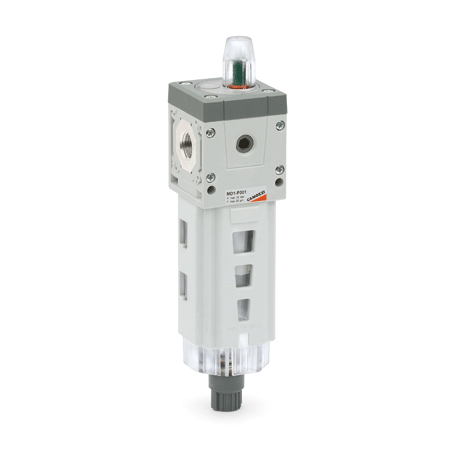

FILTRO ,0.01 MICRA, S.CONEX. IND.VISUAL
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

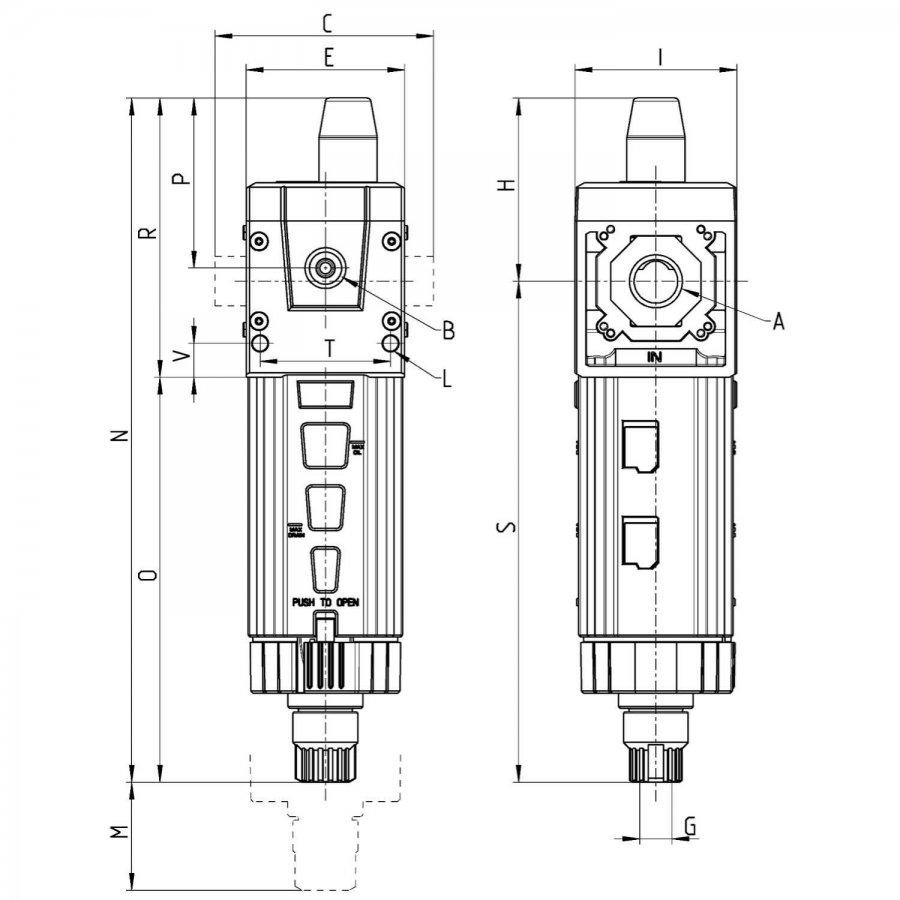

Mod. | A | B | C | E | G | H | I | L | M | N | O | P | R | S | T | V | Weight (Kg) |
MD1-FC001 | - | G1/8 | 42 | 42 | G1/8 | 48.7 | 43 | Ø4 | 90 | 181.9 | 107.7 | 45.2 | 74.2 | 133.2 | 34.6 | 9 | 0.2 |
Construction | modular, compact with filtering element in BOROSILICATE |
Materials | see TABLE OF MATERIALS on the following page |
Ports | with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm |
Condensate capacity | 24 cm³ |
Fixing | vertical in-line; wall-mounting by means of through holes in the body or with a support bracket |
Operating temperature | -5°C ÷ 50°C up to 16 bar |
Condensate drain | semi-automatic manual, automatic protected depressurisation, direct G1/8 exhaust |
Quality of delivered air according to ISO 8573-1:2010 | Class 2.8.2 with 1 µm filtering element (pre-filtering with Class 6.8.4 is recommended) Classe 1.8.1 with 0.01 µm filtering element (pre-filtering with Classe 2.8.2 is recommended) |
Operating pressure | 0.3 ÷ 16 bar |
Nominal flow | see FLOW DIAGRAMS on the following pages |
Oil retain efficiency | 99.80% (0.01µm) 97% (1µm) |
Particles retain efficiency | 99.99999% (0.01µm) 99.999% (1µm) |
Fluid | compressed air |
