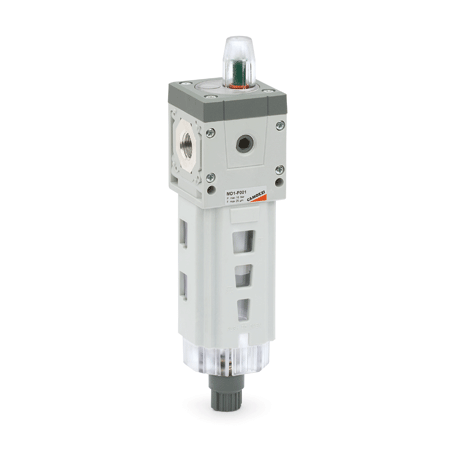

IMAGEN DE REFERENCIA

MD1-FC101 FILTRO , COALESCENTE 1

0 Reseñas(s)
MD1-FC101

FILTRO , COALESCENTE 1

MD1-FC101

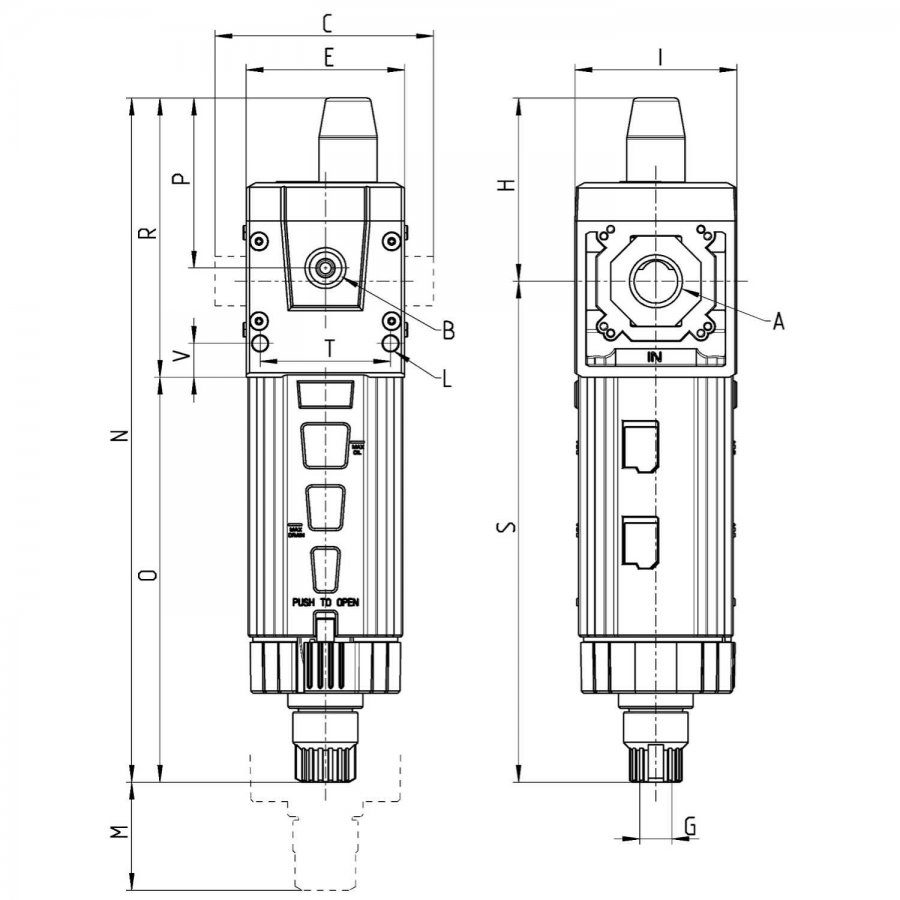

Series MD coalescing filters with visual indicator - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A B C E G H I L M N O P R S T V Weight (Kg)
MD1-FC001 - G1/8 42 42 G1/8 48.7 43 Ø4 90 181.9 107.7 45.2 74.2 133.2 34.6 9 0.2
Series general data

Construction modular, compact with filtering element in BOROSILICATE
Materials see TABLE OF MATERIALS on the following page
Ports with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Condensate capacity 24 cm³
Fixing vertical in-line; wall-mounting by means of through holes in the body or with a support bracket
Operating temperature -5°C ÷ 50°C up to 16 bar
Condensate drain semi-automatic manual, automatic protected depressurisation, direct G1/8 exhaust
Quality of delivered air according to ISO 8573-1:2010 Class 2.8.2 with 1 µm filtering element (pre-filtering with Class 6.8.4 is recommended) Classe 1.8.1 with 0.01 µm filtering element (pre-filtering with Classe 2.8.2 is recommended)
Operating pressure 0.3 ÷ 16 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Oil retain efficiency 99.80% (0.01µm) 97% (1µm)
Particles retain efficiency 99.99999% (0.01µm) 99.999% (1µm)
Fluid compressed airCode properties

Mod. A B C E G H I L M N O P R S T V Weight (Kg)
MD1-FC001 - G1/8 42 42 G1/8 48.7 43 Ø4 90 181.9 107.7 45.2 74.2 133.2 34.6 9 0.2
Series general data

Construction modular, compact with filtering element in BOROSILICATE
Materials see TABLE OF MATERIALS on the following page
Ports with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Condensate capacity 24 cm³
Fixing vertical in-line; wall-mounting by means of through holes in the body or with a support bracket
Operating temperature -5°C ÷ 50°C up to 16 bar
Condensate drain semi-automatic manual, automatic protected depressurisation, direct G1/8 exhaust
Quality of delivered air according to ISO 8573-1:2010 Class 2.8.2 with 1 µm filtering element (pre-filtering with Class 6.8.4 is recommended) Classe 1.8.1 with 0.01 µm filtering element (pre-filtering with Classe 2.8.2 is recommended)
Operating pressure 0.3 ÷ 16 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Oil retain efficiency 99.80% (0.01µm) 97% (1µm)
Particles retain efficiency 99.99999% (0.01µm) 99.999% (1µm)
Fluid compressed air
