MD1-FCA1 FILTRO , CARBON ACTIVADO,S/CON.

0 Reseñas(s)
MD1-FCA1

FILTRO , CARBON ACTIVADO,S/CON.

MD1-FCA1

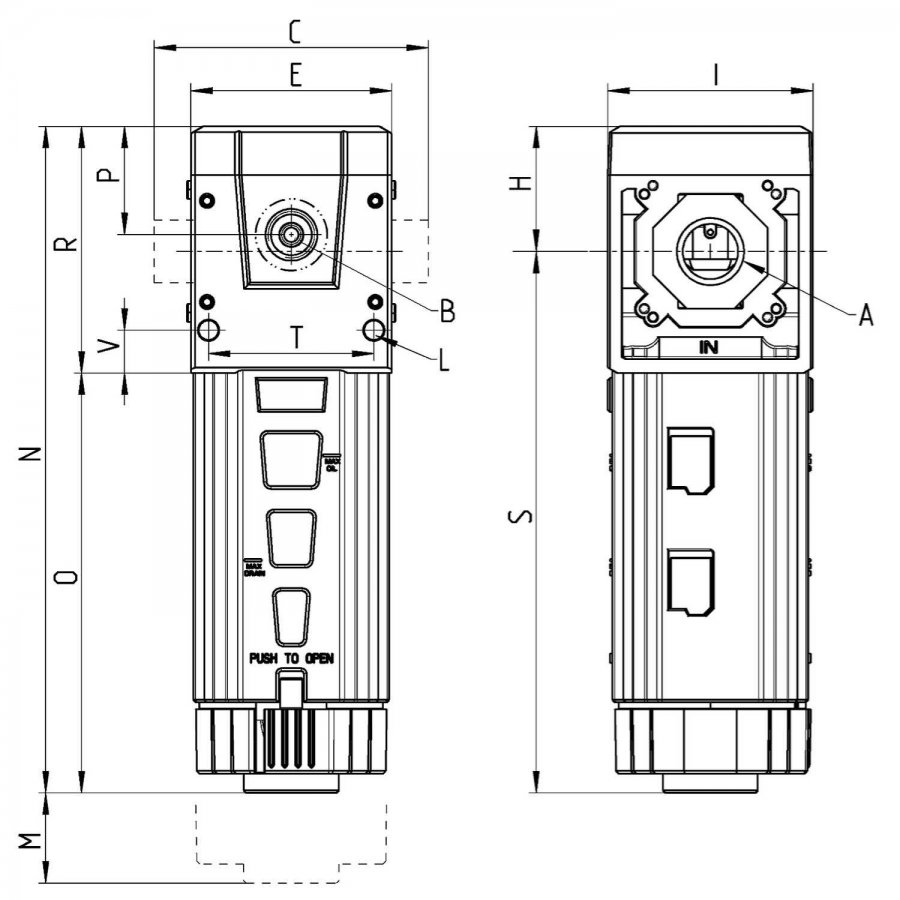

Series MD activated carbon filters - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A B C E H I L M N O P R S T V Weight (Kg)
MD1-FCA1 - G1/8 42 42 48.7 43 Ø4 90 162.2 88 45.2 74.2 113.5 34.6 9 0.2
Series general data

Construction modular, compact with activated carbon filtering element
Materials see TABLE OF MATERIALS on the following page
Ports With interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Mounting vertical in-line; wall-mounting by means of through holes in the body or with a support bracket
Operating temperature 10°C ÷ 40°C (t max = 60°C)
Condensate drain not present
Quality of delivered air according to ISO 8573-1:2010 Class 1.7.1 (pre-filtering in Class 1.8.1 is recommended)
Operating pressure 0.3 ÷ 16 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Filtering element actived carbon
Residual oil content < 0.003 mg/m³
Fluid compressed air
