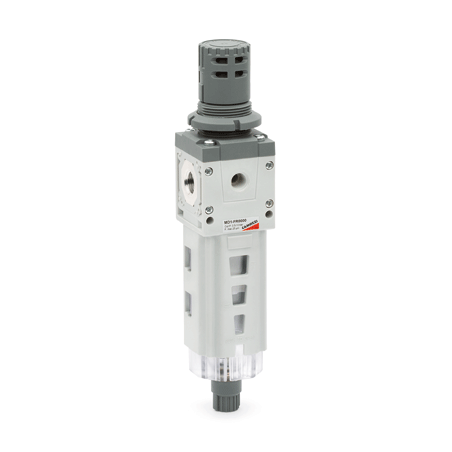

MD1-FR1000 FILTRO-REGULADOR, 5 MICRAS, S/CONEX

Referencia MD1-FR1000

FILTRO-REGULADOR, 5 MICRAS, S/CONEX

MD1-FR1000

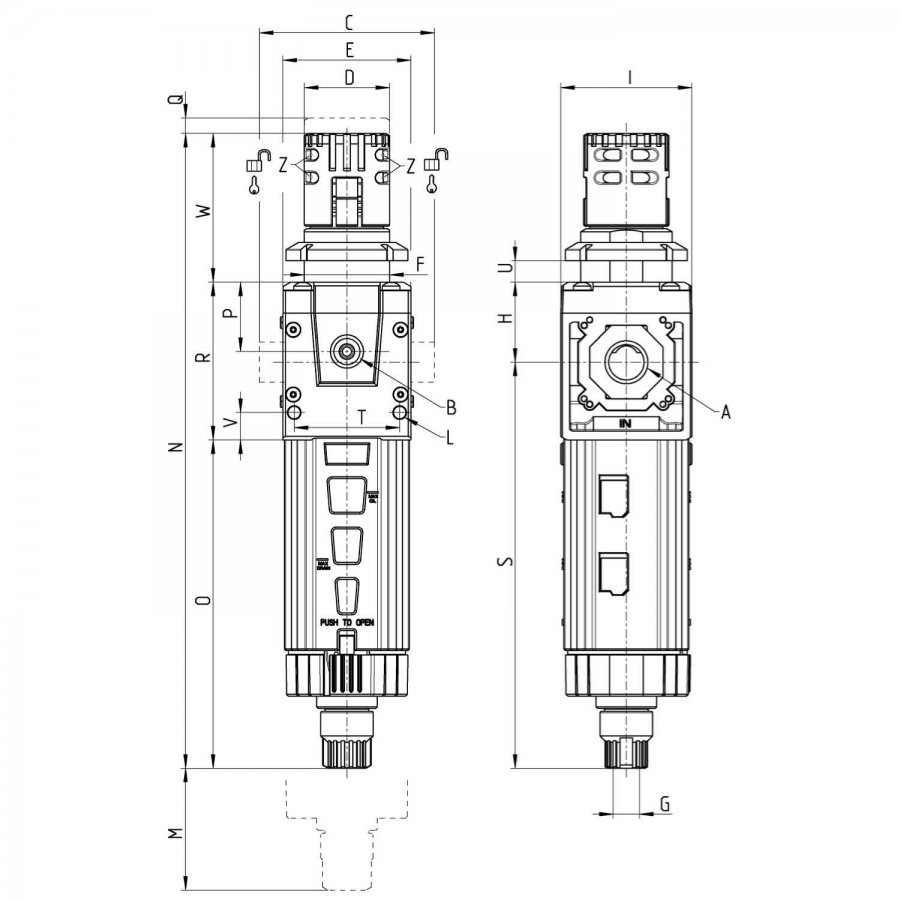

Series MD filter-regulators - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Mod.

Weight (Kg)

MD1-FR0000

G1/8

Ø28

M28X1,5

G1/8

26.2

Ø4

110

208.2

107.7

22.7

51.7

133.2

34.6

0 ÷ 11

48.8

Ø3.2

0.2

Series general data

Construction	modular, compact with filtering element in HDPE
Materials	see TABLE OF MATERIALS on the following page
Ports	with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with diameters of 6, 8 and 10 mm
Condensate capacity	24 cm³
Mounting	in-line; wall-mounting by means of through holes in the body or with a support bracket; panel mounting
Operating temperature	-5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Condensate drain	semi-automatic manual, automatic protected depressurisation, direct G1/8 exhaust
Quality of delivered air according to ISO 8573-1 2010	Class 6.8.4 with 5 µm filtering element Class 7.8.4 with 25 µm filtering element
Inlet pressure	0.3 ÷ 16 bar
Nominal flow	see FLOW DIAGRAMS on the following pages
Fluid	compressed air
