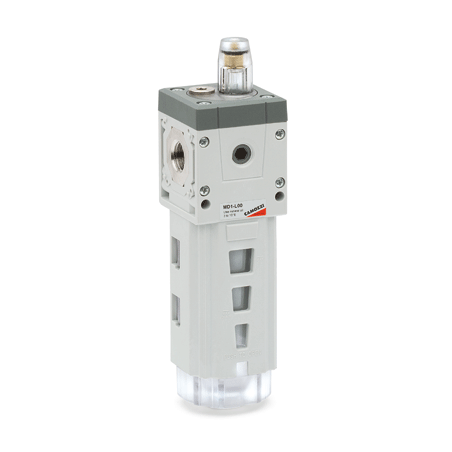

MD1-L00-1/4 LUBRICADOR DE 1/4PUL

Referencia MD1-L00-1/4

LUBRICADOR DE 1/4"

MD1-L00-1/4

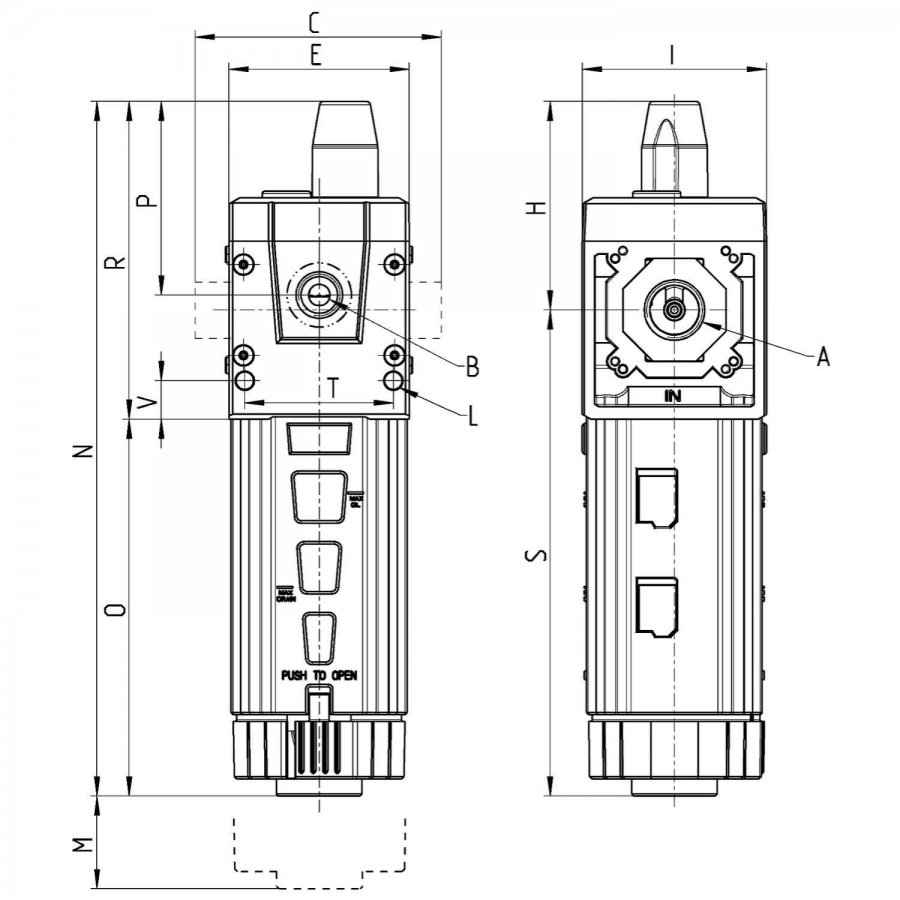

Series MD lubricators - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.

Weight (Kg)

MD1-L00-1/4

G1/4

G1/8

48.7

Ø4

162.2

45.2

74.2

113.5

34.6

0.2

Series general data

Construction	modular, compact
Materials	see TABLE OF MATERIALS on the following page
Ports	with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Oil capacity	40 cm³
Oil refilling	even during use
Mounting	in vertical position by means of through holes in the body
Operating temperature	-5°C ÷ 50°C up to 16 bar
Oil for lubrication	use ISO VG32 oils. Once applied, the lubrication should never be interrupted.
Operating pressure	0 ÷ 16 bar
Min. air consumption for lubrication at 1 bar	15 Nl/min
Min. air consumption for lubrication at 6 bar	25 Nl/min
Nominal flow	see FLOW DIAGRAMS on the following pages
fluid	compressed air
