MD1-M000 REGULADOR PRESION MANIFOLD, 0.5-10

Referencia MD1-M000

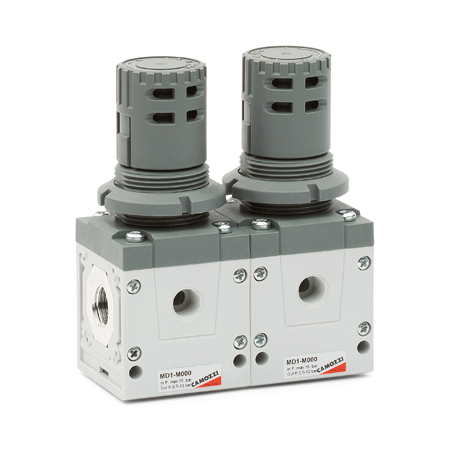

REGULADOR PRESION MANIFOLD, 0.5-10

MD1-M000

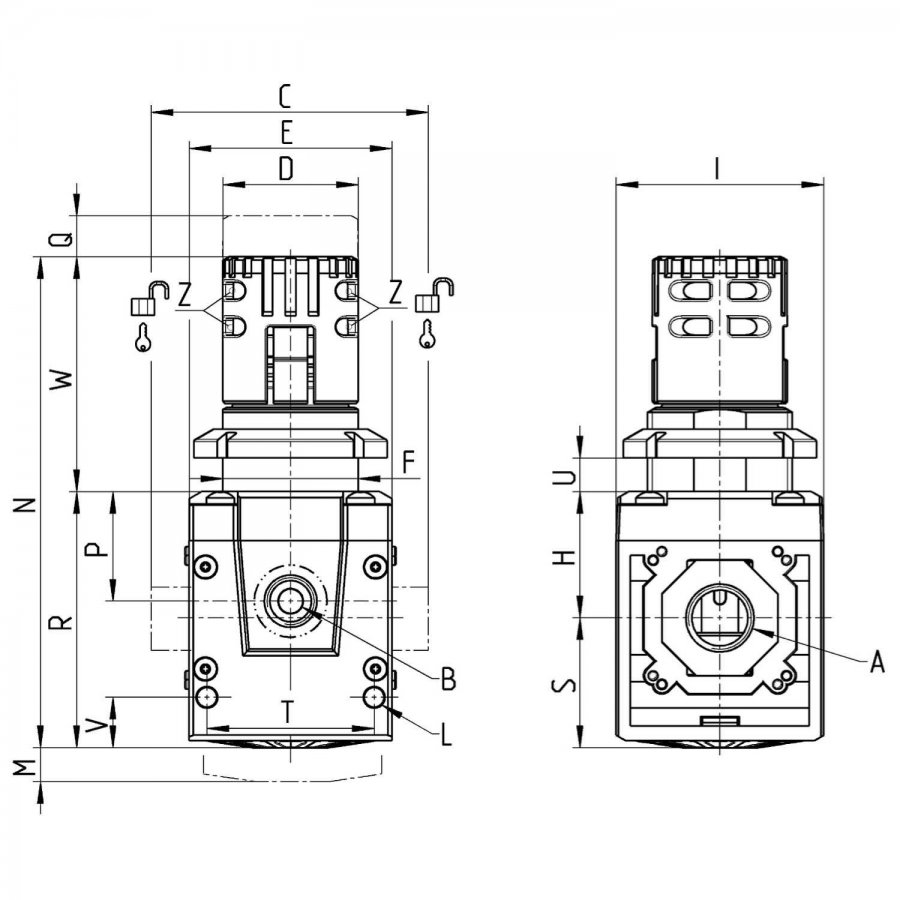

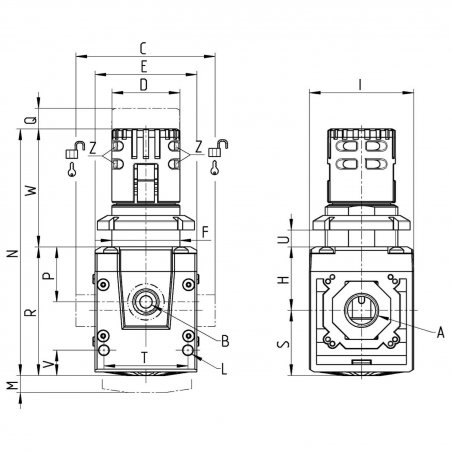

Series MD pressure regulators - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.

Weight (Kg)

MD1-M000

G1/8

Ø28

M28X1,5

26.2

Ø4

102

22.7

53.2

34.6

0 ÷ 11

10.5

48.8

Ø3.2

0.2

Series general data

Construction	modular, compact wiht pre-formed diaphragm
Materials	see TABLE OF MATERIALS on the following page
Ports	with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded or integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Fixing	in-line; wall-mounting by means of through holes in the body or with a support bracket; panel mounting
Operating temperature	-5°C ÷ 50°C up to 16 bar
Inlet pressure	0 ÷ 16 bar
Outlet pressure	0 ÷ 2 bar 0 ÷ 4 bar 0.5 ÷ 7 bar 0.5 ÷ 10 bar
Overpressure exhaust	with relieving without relieving
Nominal flow	see FLOW DIAGRAMS on the following pages
Fluid	compressed air
