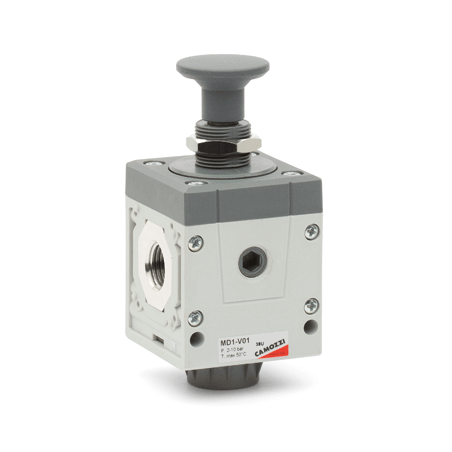

MD1-V01 VALVULA DE SEGURIDAD SIN

Referencia MD1-V01

VALVULA DE SEGURIDAD SIN

MD1-V01

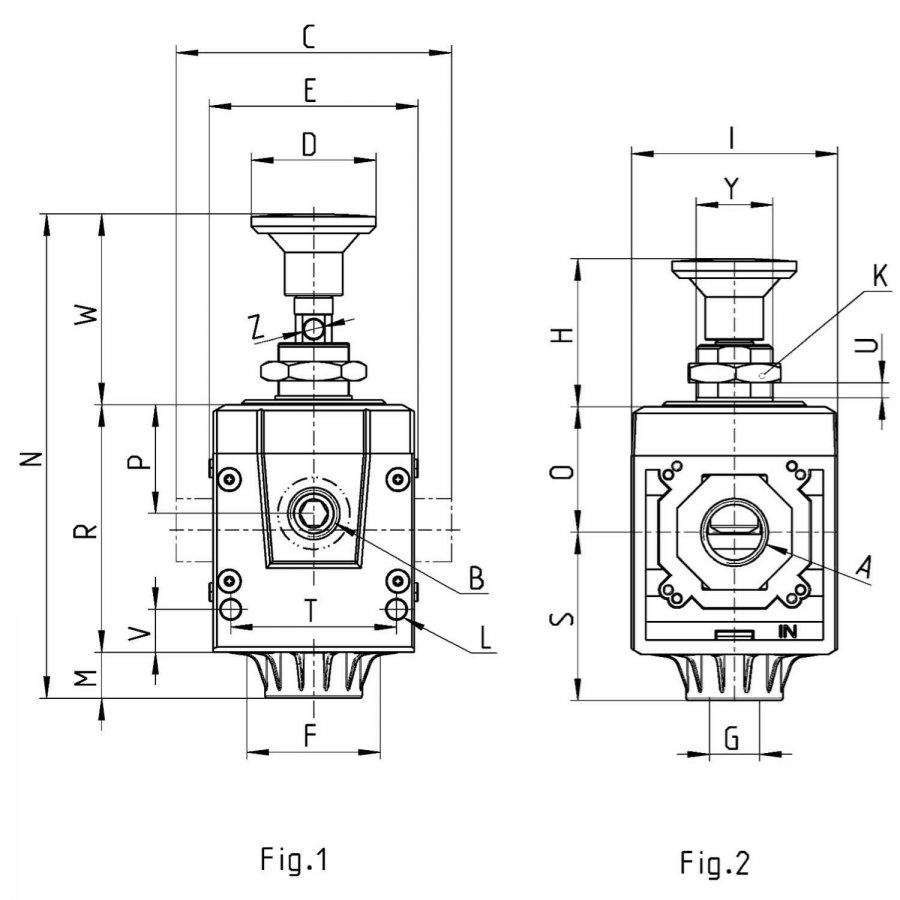

Manually operated valves - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.

Weight (Kg)

MD1-V01

G1/8

Ø26

28.5

G1/8

Ø4

9.5

101

26.2

22.7

51.7

35.1

34.6

0-8

39.8

M16X1

Ø4

0.2

Series general data

Construction	modular, compact, spool-type
Materials	see TABLE OF MATERIALS on the following page
Ports	with interchangeable cartridges: 1/8, 1/4 and 3/8 threaded, integrated with super-rapid fitting for tube with Ø 6, 8 and 10 mm
Fixing	in-line; wall-mounting by means of through holes in the body or with a support bracket; panel-mounting (for manually operated version only)
Operating temperature	-5°C ÷ 50°C up to 16 bar
Operating pressure	Manual valve: -0.8 bar ÷ 10 bar Electro-pneumatic valve: 2 bar ÷ 10 bar Servopilot or pneumatic valve: -0.8 bar ÷ 10 bar (with pilot 2 ÷ 10 bar)
Nominal flow	see FLOW DIAGRAMS on the following pages
Nominal exhaust flow at 6 bar with ∆p = 1 bar	850 Nl/min
Fluid	compressed air
