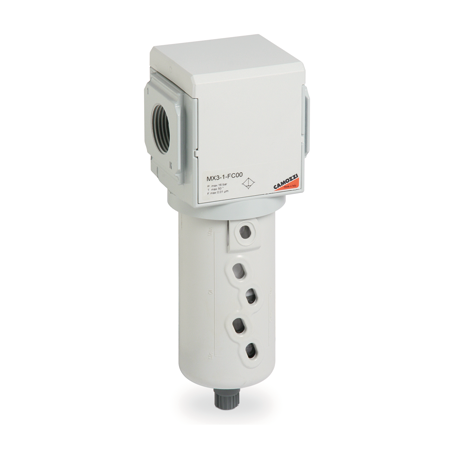

MX2-1/2-FC13 FILTRO 1/2, COALESC, AUTOMATICO 1M

Referencia MX2-1/2-FC13

FILTRO 1/2, COALESC, AUTOMATICO 1M

MX2-1/2-FC13

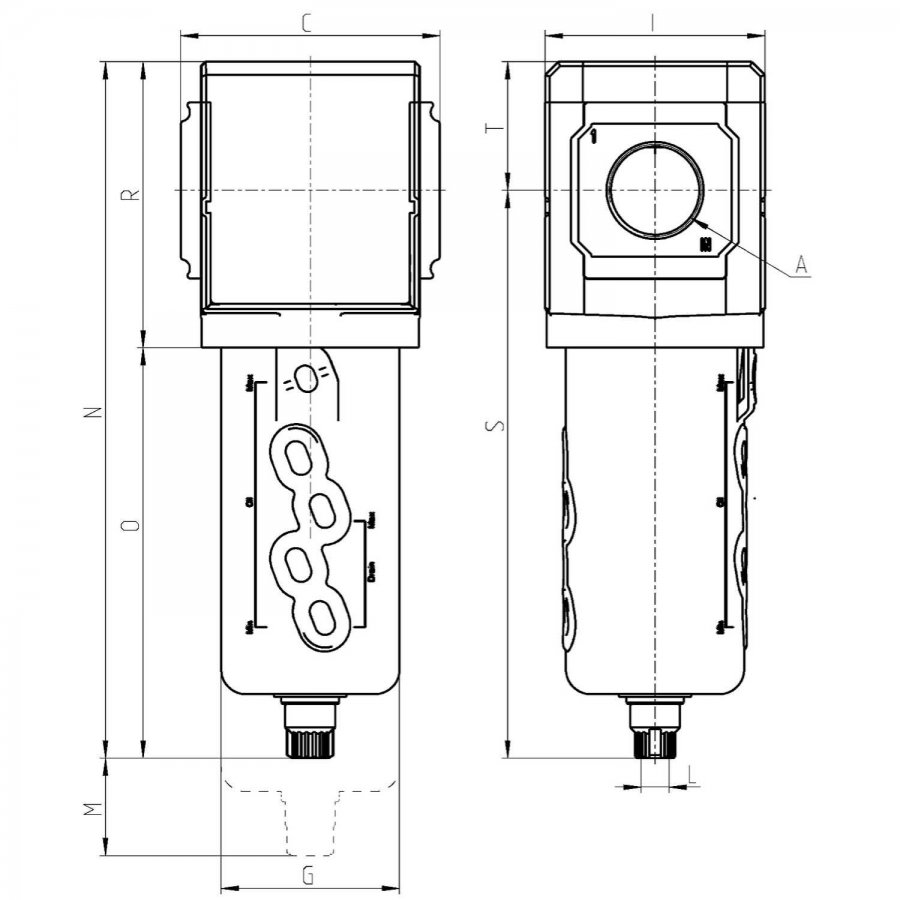

Coalescing filters Series MX - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.

Weight (Kg)

MX2-1/2-FC00

G1/2

55.3

G1/8

212

127

174.5

37.5

0.5

Series general data

Construction	modular, compact
Materials	see TABLE OF MATERIALS on the following page
Ports	MX2: G3/8, G1/2, G3/4 - MX3: G3/4, G1
Condensate capacity	MX2: 55 cm³ - MX3: 85 cm³
Mounting	vertical in-line or wall-mounting (by means of clamps)
Operating temperature	-5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temp.) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temp.)
Draining of condensate	manual-semi automatic (standard), automatic, depressurization protected, direct G1/8 exhaust
Operating pressure	0.3 ÷ 16 bar (with automatic drain 1.5 ÷ 12 bar)
Nominal flow	see FLOW DIAGRAMS on the following pages
Quality of delivered air according to ISO 8573-1:2010	Class 2.8.2 with 1 μm filtering element; Class 1.8.1 with 0.01 μm filtering element
Residual oil content with inlet at 3 mg/m³	< 0.01mg/m³ < 0.1mg/m³
Oil retain efficiency	99.80% 97%
Particles retain efficiency	99.99999% 99.999%
Fluid	compressed air
Pre-filtering with filtering element of 1µm Pre-filtering with filtering element of 0.01µm	it is recommended to use a filter of 5µm it is recommended to use a filter of 1µm
