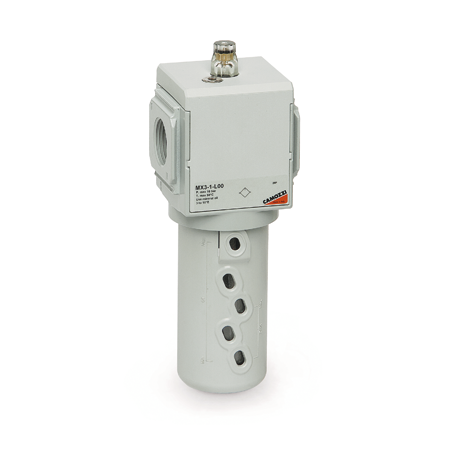

LUBRICADOR 3/4" SERIE MX
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

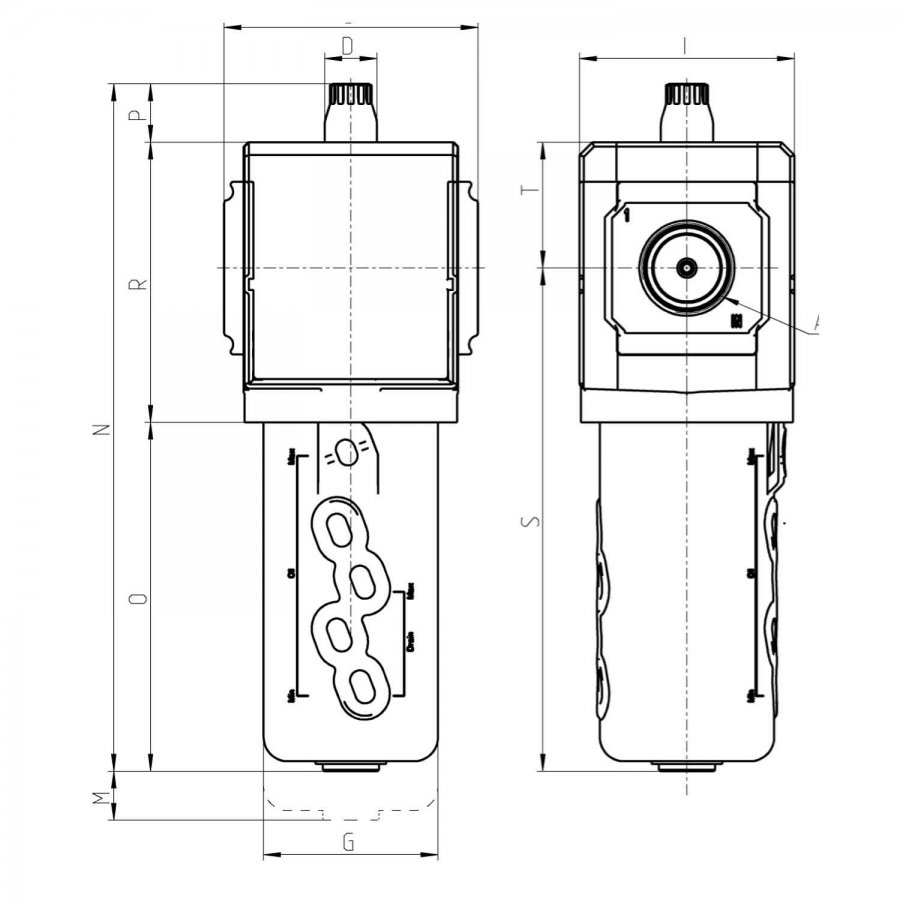

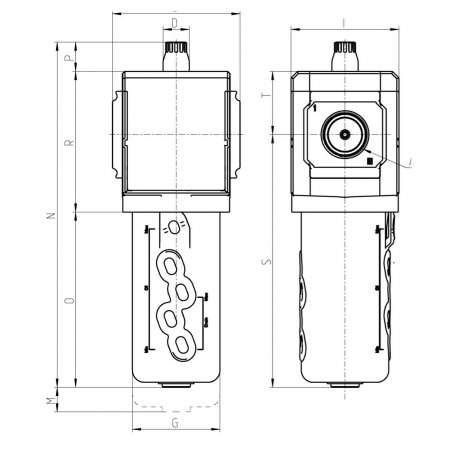

Mod. | A | C | D | G | I | M | N | O | P | R | S | T | Weight (Kg) |
MX2-3/4-L00 | G3/4 | 70 | 18.5 | 55.5 | 68 | 84.5 | 210 | 104.5 | 20.5 | 85 | 152 | 37.5 | 0.5 |
Construction | modular, compact |
Materials | see TABLE OF MATERIALS on the following page |
Ports | MX2: G3/8 - G1/2 - G3/4 MX3: G3/4 - G1 |
Oil capacity | MX2: 118 cm³ MX3: 170 cm³ |
Oil refilling | even during use |
Mounting | vertical in-line wall-mounting (by means of clamps) |
Operating temperature | -5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) |
Oil for lubrication | use ISO VG32 oils. Once applied, the lubrication should never be interrupted. |
Operating pressure | 0 ÷ 16 bar |
Min. air consumption for lubrication at 1 bar | MX2: 17 Nl/min MX3: 50 Nl/min |
Min. air consumption for lubrication at 6 bar | MX2: 38 Nl/min MX3: 90 Nl/min |
Nominal flow | see FLOW DIAGRAMS on the following pag |
