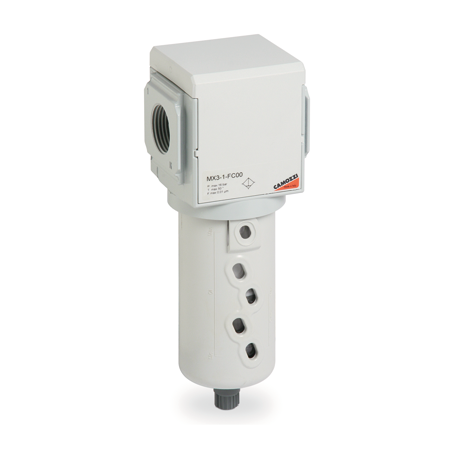

IMAGEN DE REFERENCIA

  • Sobre pedido

MX2-3/8-FC03 FILTRO 3/8, COALESC, AUTOMATICO

0 Reseñas(s)
MX2-3/8-FC03

FILTRO 3/8, COALESC, AUTOMATICO

MX2-3/8-FC03

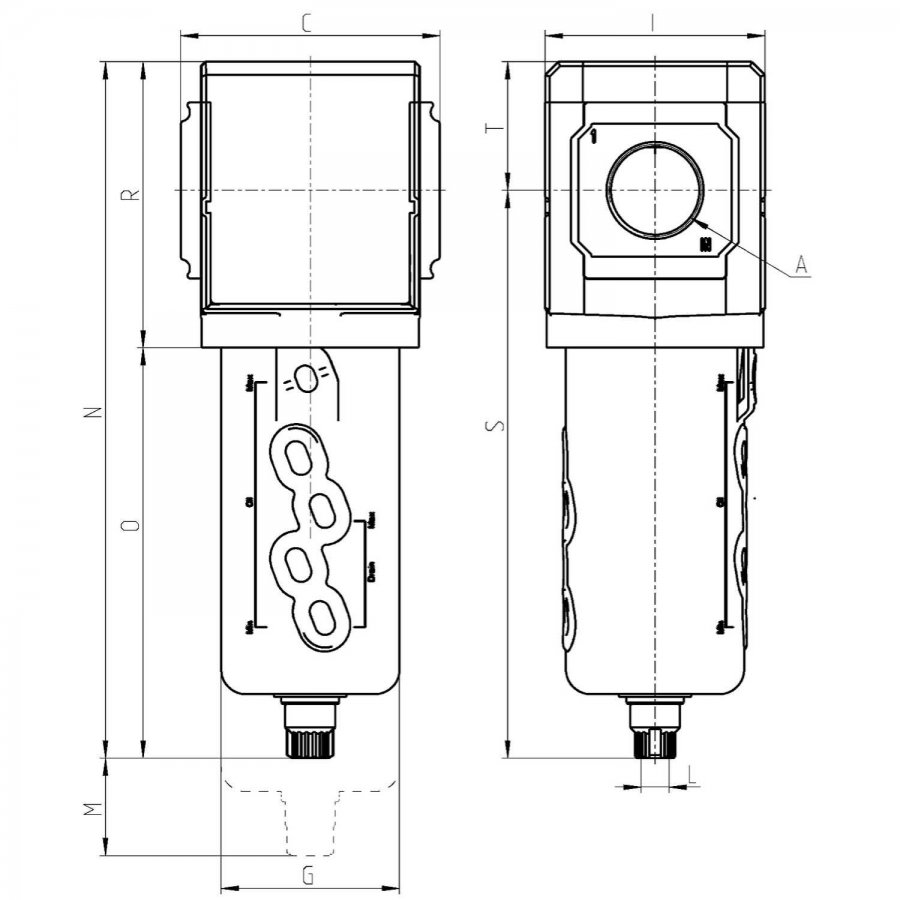

Coalescing filters Series MX - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A C G I L M N O R S T Weight (Kg)
MX2-3/8-FC00 G3/8 70 55.3 68 G1/8 52 212 127 85 174.5 37.5 0.5
Series general data

Construction modular, compact
Materials see TABLE OF MATERIALS on the following page
Ports MX2: G3/8, G1/2, G3/4 - MX3: G3/4, G1
Condensate capacity MX2: 55 cm³ - MX3: 85 cm³
Mounting vertical in-line or wall-mounting (by means of clamps)
Operating temperature -5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temp.) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temp.)
Draining of condensate manual-semi automatic (standard), automatic, depressurization protected, direct G1/8 exhaust
Operating pressure 0.3 ÷ 16 bar (with automatic drain 1.5 ÷ 12 bar)
Nominal flow see FLOW DIAGRAMS on the following pages
Quality of delivered air according to ISO 8573-1:2010 Class 2.8.2 with 1 μm filtering element; Class 1.8.1 with 0.01 μm filtering element
Residual oil content with inlet at 3 mg/m³ < 0.01mg/m³ < 0.1mg/m³
Oil retain efficiency 99.80% 97%
Particles retain efficiency 99.99999% 99.999%
Fluid compressed air
Pre-filtering with filtering element of 1µm Pre-filtering with filtering element of 0.01µm it is recommended to use a filter of 5µm it is recommended to
