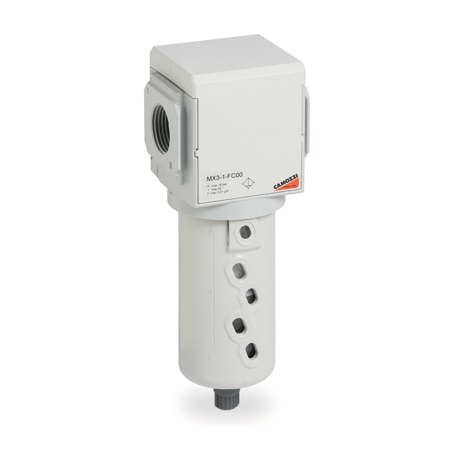

IMAGEN DE REFERENCIA

MX3-1-F00 FILTRO 1, 25 MICRAS SERIE MX

0 Reseñas(s)
MX3-1-F00

FILTRO 1", 25 MICRAS SERIE MX

MX3-1-F00

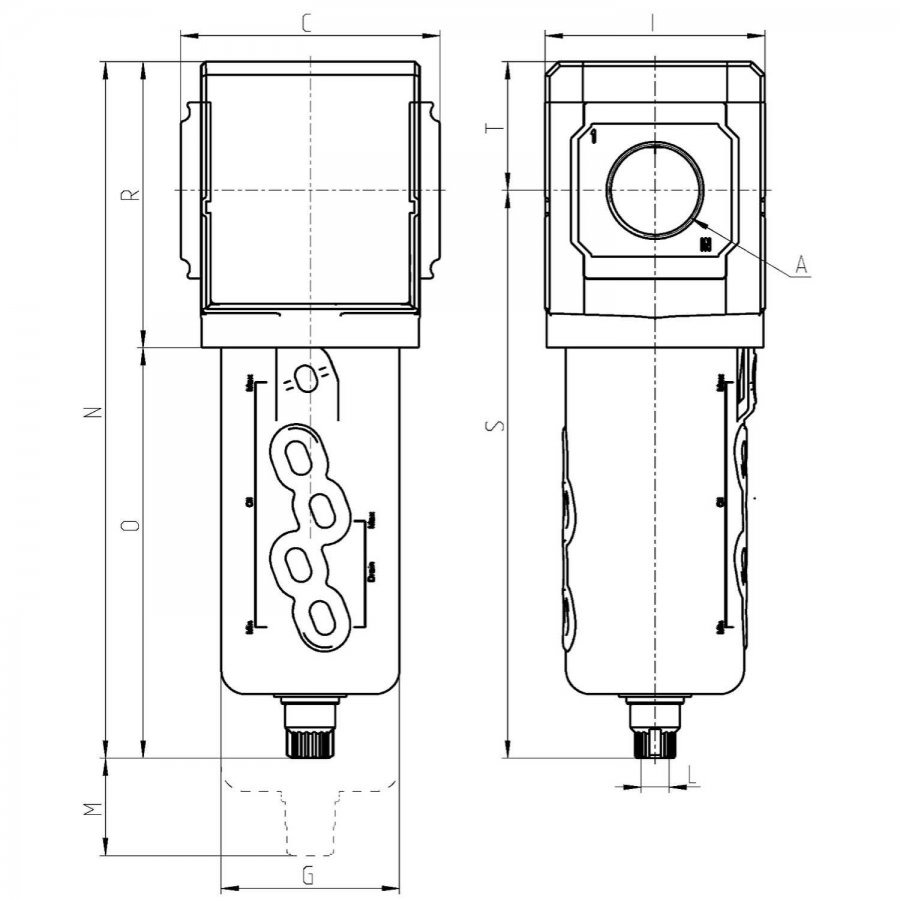

Filters Series MX - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A C G I L M N O R S T Weight (Kg)
MX3-1-F00 G1 89.5 61.5 76 G1/8 75 241 142 99 196.5 44.5 0.8
Series general data

Construction modular, compact with filtering element in HDPE
Materials see TABLE OF MATERIALS on the following page
Ports MX2: G3/8 - G1/2 - G3/4 MX3: G3/4 - G1
Condensate capacity MX2: 55 cm³ MX3: 85 cm³
Mounting vertical in-line wall-mounting (by means of clamps)
Operating temperature -5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air according to ISO 8573-1:2010 Class 6.8.4 with 5 μm filtering element Class 7.8.4 with 25 μm filtering element
Operating pressure 0.3 ÷ 16 bar (with automatic drain 1.5 ÷ 12 bar)
Nominal flow see FLOW DIAGRAMS on the following pages
Fluid compressed air
