IMAGEN DE REFERENCIA

  • Sobre pedido

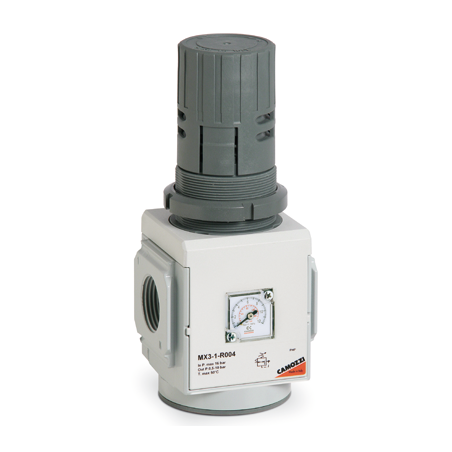

MX3-1-R000 REGULADOR 1PUL, SERIE MX

0 Reseñas(s)
MX3-1-R000

REGULADOR 1", SERIE MX

MX3-1-R000

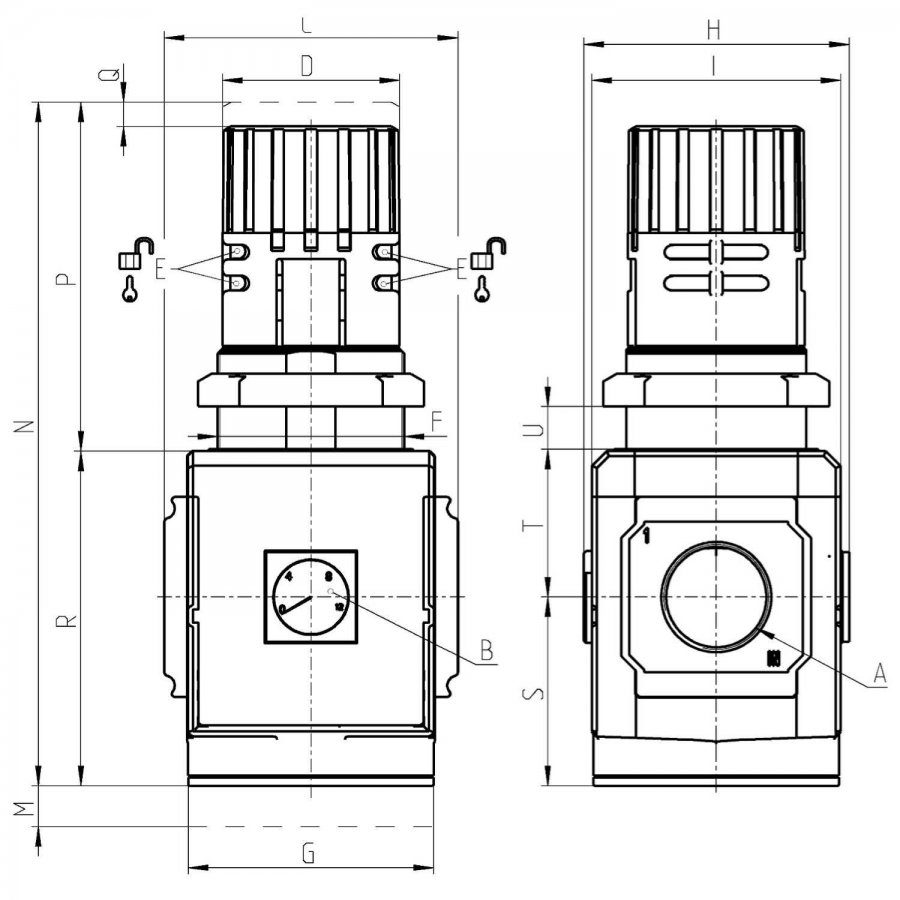

Pressure regulators Series MX - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A B (bar) C D E F G H I M N P Q R S T U Weight (Kg)
MX2-3/8-R004 G3/8 0 ÷ 12 70 45 Ø 4 M47x1,5 70 74,5 68 45 166 78 5 88 50,5 37,5 0 ÷ 13 0.6
Series general data

Construction modular, compact, diaphragm type
Materials see TABLE OF MATERIALS on the following page
Ports MX2: G3/8 - G1/2 - G3/4 - MX3: G3/4 - G1 Manifold regulator: G1/2 (MX2 only)
Mounting vertical in-line, wall-mounting (by means of clamps), panel mounting
Operating temperature -5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Inlet pressure 0 ÷ 16 bar
Outlet pressure 0.5 ÷ 10 bar (standard) 0 ÷ 4 bar 0.5 ÷ 7 bar (MX2 only)
Overpressure exhaust with relieving (standard) or without relieving
Nominal flow see FLOW DIAGRAMS on the following pages
Fluid compressed air
Pressure gauge built-in pressure gauge (standard) with G1/4 port (MX3 only) or G1/8 port (MX2 only)
