IMAGEN DE REFERENCIA

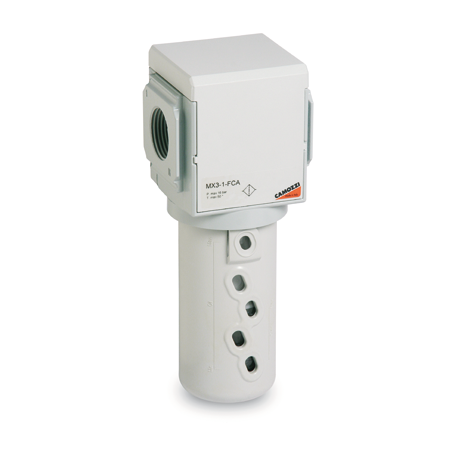

MX3-3/4-FCA FILTRO 3/4, CARBON ACTIVADO SERIE MX

MX3-3/4-FCA

FILTRO 3/4, CARBON ACTIVADO SERIE MX

MX3-3/4-FCA

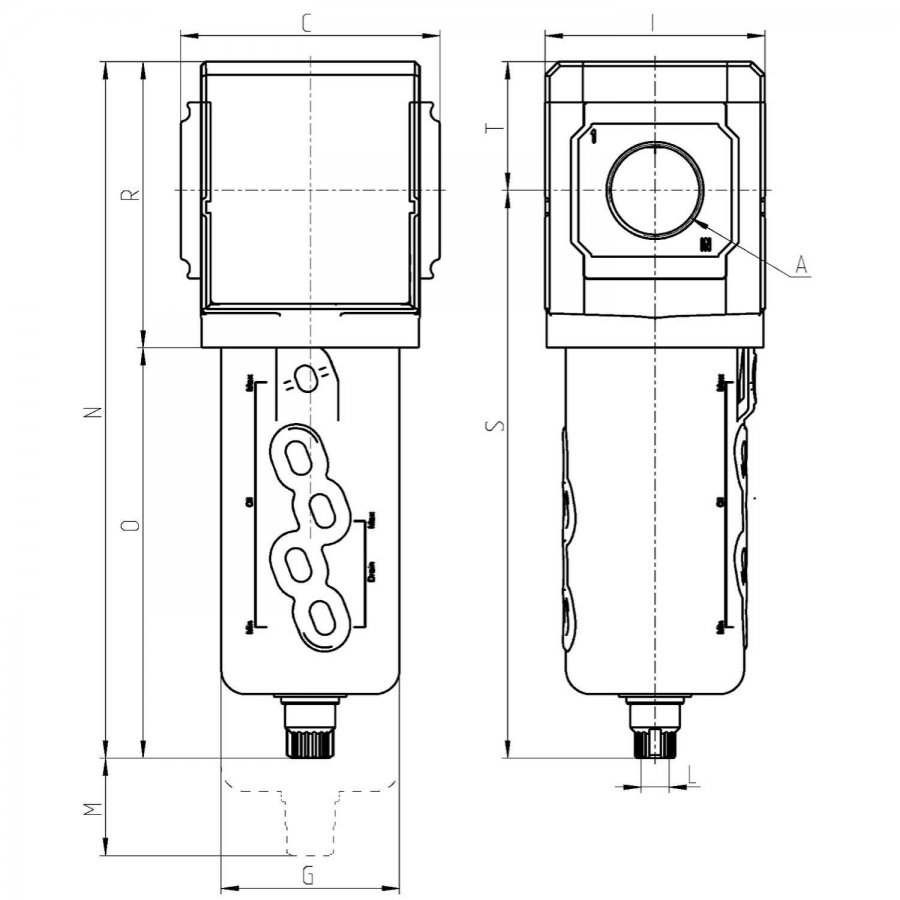

Activated carbon filters Series MX - dimensions

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod. A C G I M N O R S T Weight (Kg)
MX3-1-FCA G1 89.5 61.5 76 107 222 123 99 177.5 44.5 0.8
Series general data

Construction modular, compact with activated carbon filtering element
Materials see TABLE OF MATERIALS on the following page
Ports MX2: G3/8 - G1/2 - G3/4 MX3: G3/4 - G1
Mounting vertical in-line wall-mounting (by means of clamps)
Operating temperature 10°C ÷ 40°C (t max = 60°C)
Quality of delivered air according to ISO 8573-1:2010 Class 1.7.1
Draining of condensate No draining
Operating pressure 0.3 ÷ 16 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Filtering element actived carbon
Residual oil content < 0,003 mg/m³
Fluid compressed air
Pre-filtering it is recommended to use a filter with residual oil of 0,01mg/m³
