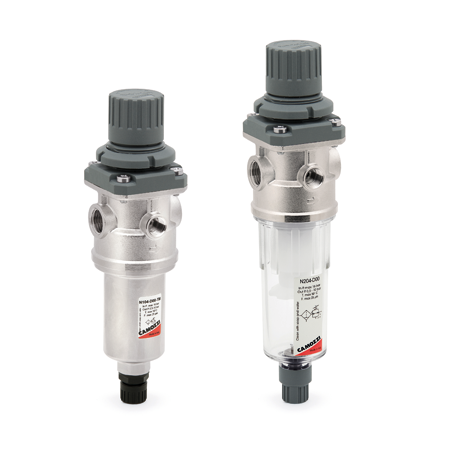

IMAGEN DE REFERENCIA

  • Sobre pedido

N104-D10 FILTRO-REGULADOR 1/4 5 MICRAS VASO

0 Reseñas(s)
N104-D10

FILTRO-REGULADOR 1/8 25 MICRAS VASO

N104-L00
Series N filter-regulators

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod. A B C D F G I L M N O P Q R S U
N104-D00 167 78 50 39 101 27 28 М30x1,5 45 45 G1/8 38 40 3 0 ÷ 6 G1/4
Series general data

Construction HDPE and coalescing filtering element
Materials brass body and poppet stainless steel spring NBR O-ring HDPE filtering element transparent PA12 or nickel-plated bowl others: PA
Ports G1/8 - G1/4
Max. condensate capacity 11 cm³ (bowl size = 1) 28 cm³ (bowl size = 2)
Weight 0.370 Kg
Pressure gauge ports G1/8
Mounting vertical, in-line
Operating temperature -5°C ÷ 50°C a 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air according to ISO 8573-1 2010 Class 7.8.4 with 25 µm filtering element Class 6.8.4 with 5 µm filtering element
Draining of condensate see the coding example
Inlet pressure with standard drain and protected depressurisation 0.3 ÷ 16 bar
Outlet pressure with depressurisation drain 0.3 ÷ 10 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Secondary pressure relieving with relieving (standard) without relieving
Fluid compressed air
