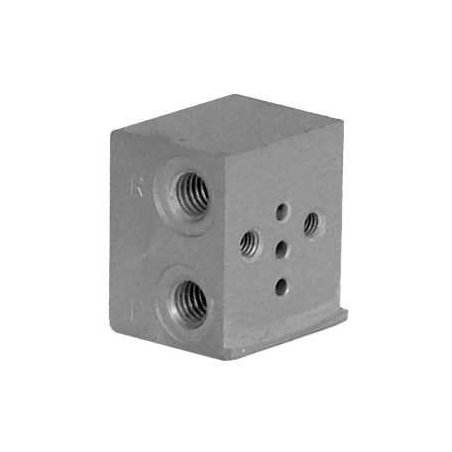

IMAGEN DE REFERENCIA

  • Sobre pedido

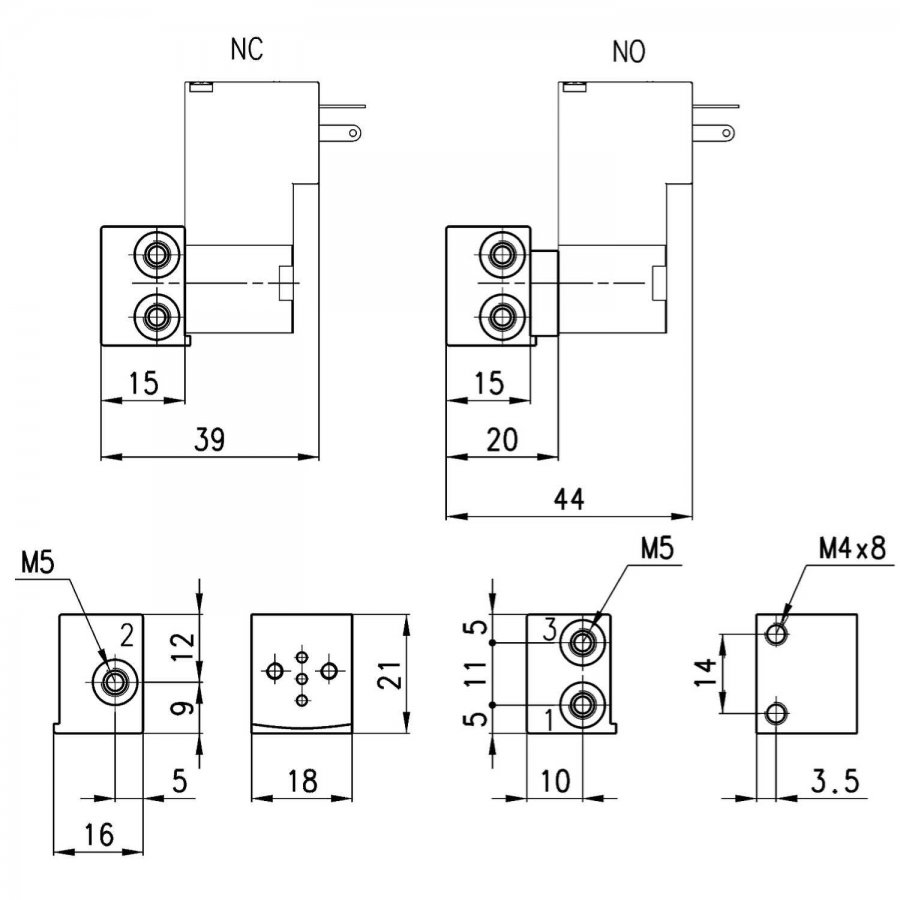

P001-02 PLACA BASE INDIVIDUAL P/SERIE P

0 Reseñas(s)
P001-02

PLACA BASE INDIVIDUAL P/SERIE P

P001-02
Single sub-base

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

Mod.
P001-02
Series general data


TECHNICAL FEATURES
Function Operation Pneumatic connections Nominal diameter Nominal flow Flow coefficient kv (l/min) Operating pressure Operating temperature Media Response time (ISO 12238) Manual override Installation 3/2 NC - 3/2 NO direct acting poppet type on subbase with ISO 15218 interface by means of screws 0.8 … 1.5 mm 14 … 35 Nl/min (air @ 6 bar ΔP 1 bar) 0.21 … 0.54 0 ÷ 3 … 10 bar 0°C ÷ 50°C filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas ON <10 msec - OFF <15 msec monostable button in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body Seals Internal parts PBT technopolymer FKM, NBR (FKM on demand) stainless steel
ELECTRICAL FEATURES
Voltage Voltage tolerance Power consumption Duty cycle Electrical connection Protection class 12 … 110 V DC - 24 … 110 V AC 50/60 Hz ±10% 2 W - 1 W (24 V DC only) ED 100% with industrial standard connector (9.4 mm) IP65 with connector
Special versions available on demand
