QCTF2A025A075 CILINDRO D.E. MAG. CON GUIAS

0 Reseñas(s)
QCTF2A025A075

CILINDRO D.E. MAG. CON GUIAS

QCTF2A025A075
Mod. QCTF and QCBF type "A"

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar

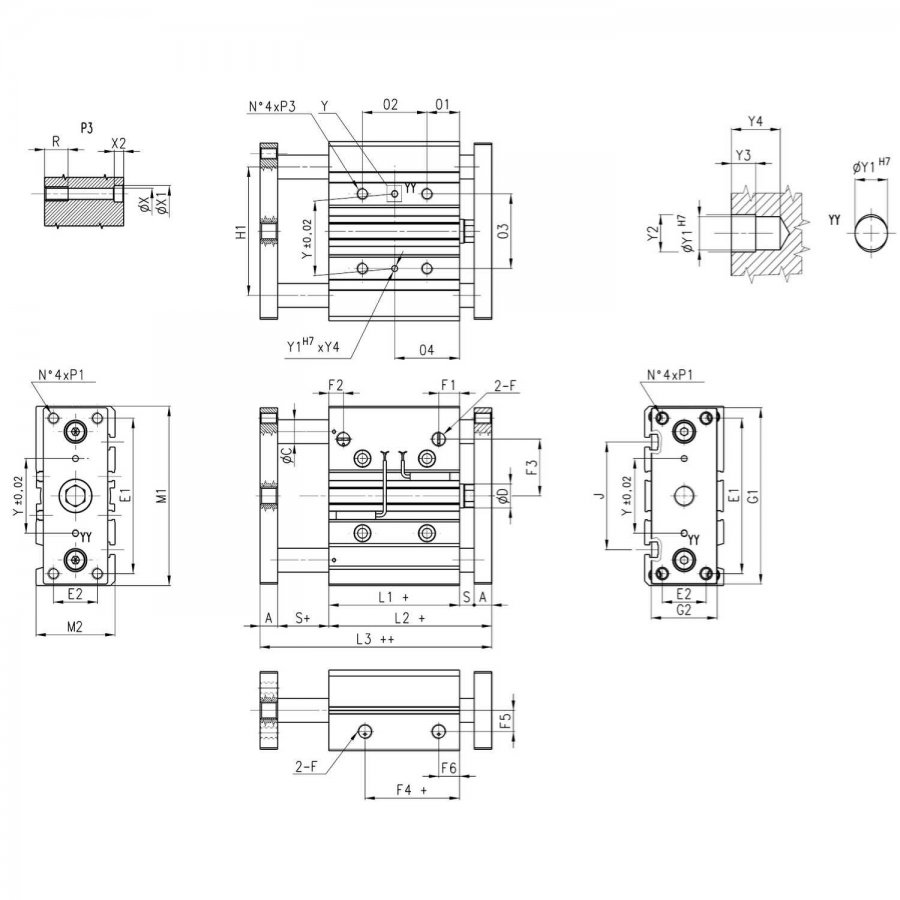

Code properties

Ø A D E1 E2 F F1 F2 F3 F4 F5 F6 G1 G2 H1 L1 L2 L3 M1 M2 01 03 R S Y
25 10 12 78 26 1/8 11.5 8 28.5 12.5 13.5 11.5 91 40 64 37.5 53.5 69.5 93 42 17 34 12 6 34
Series general data

Type of construction guided with double bearings and double flanges QCTF = sintered bronze bushes QCBF = linear ball bearings
Operation double-acting
Materials body = anodized AL flanges = zinc-plated steel piston rod = rolled stainless steel AISI QCTF columns = rolled stainless steel 420B QCBF columns = hardened steel C50 seals = PU
Mounting threaded and non threaded holes in the body
Strokes min. max (see table)
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Speed 50 ÷ 500 mm/s
Stroke end cushioning Type A extended stroke - fixed mechanical cushioning retracted stroke - fixed mechanical cushioning we recommend preventing the piston from striking against the end covers
Stroke end cushioning Type B extended stroke - shock absorber retracted stroke - shock absorber
Stroke end cushioning Type C extended stroke - shock absorber retracted stroke - fixed mechanical cushioning we recommend preventing the piston from striking against the end covers
Operating pressure 1 ÷ 10 bar
Fluid clean air, non lubricated. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
