QN1A12A10 CILINDRO DE CARRERA CORTA S.E. SERIE

Referencia QN1A12A10

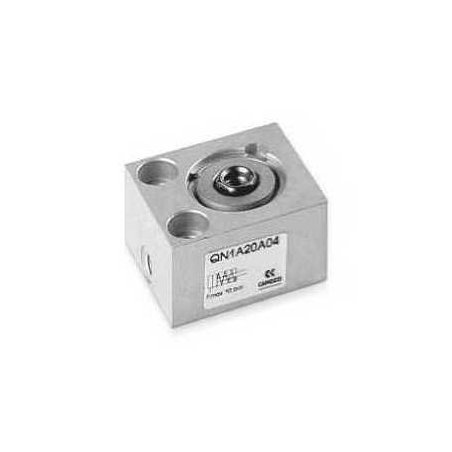

CILINDRO DE CARRERA CORTA S.E. SERIE

QN1A12A10
Short-stroke cylinders Series QN - bores ø 8, 12 and 20

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

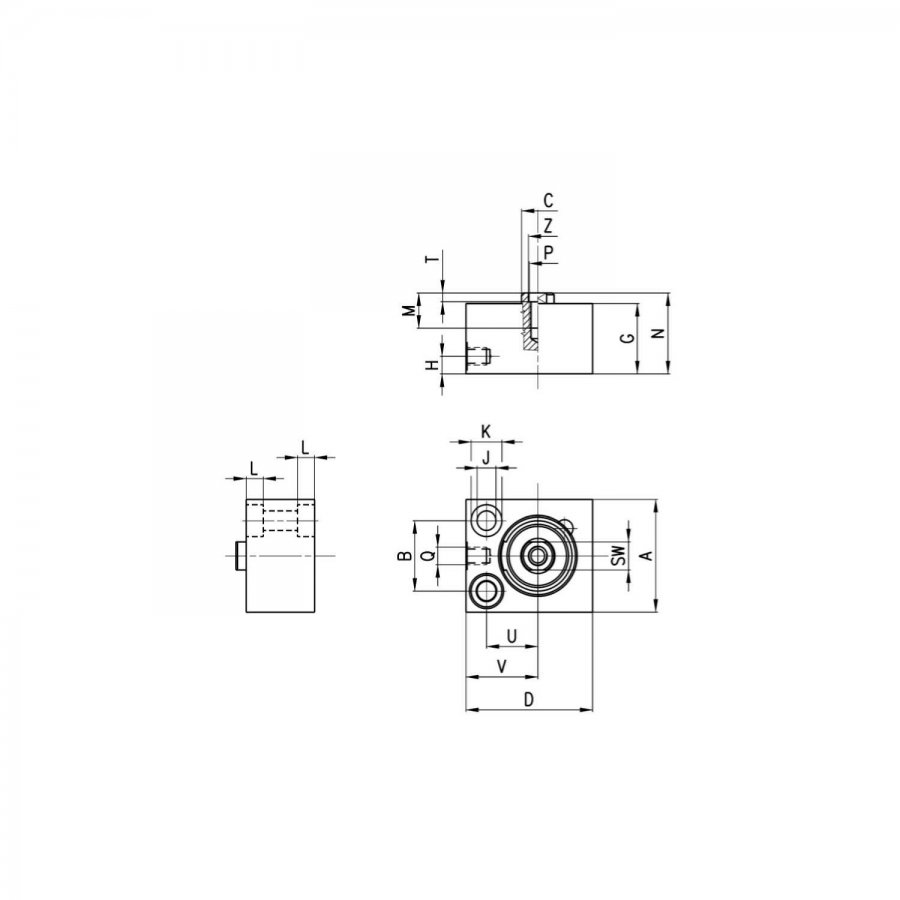

Mod.	Ø	A	B	C	D	G	H	J	K	L	M	N	P	Q	SW	T	U	V	Z
QN1A12A10	12	20	13	5	25	26	5	3,2	5,8	3	-	30	-	M5	-	-	9	16	-

Series general data

Type of construction	compact
Operation	single-acting
Materials	aluminium body - NBR seals - other materials in stainless steel and brass
Operating pressure	P. min 2 bar P. max 10 bar
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Fluid	clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
Bore	ø 8, 12, 20, 32, 50, 63
Stroke	see table
Type of mounting	by means of screws in the body
