QN1A32A05 CILINDRO DE CARRERA CORTA S.E. SERIE

Referencia QN1A32A05

CILINDRO DE CARRERA CORTA S.E. SERIE

QN1A32A05

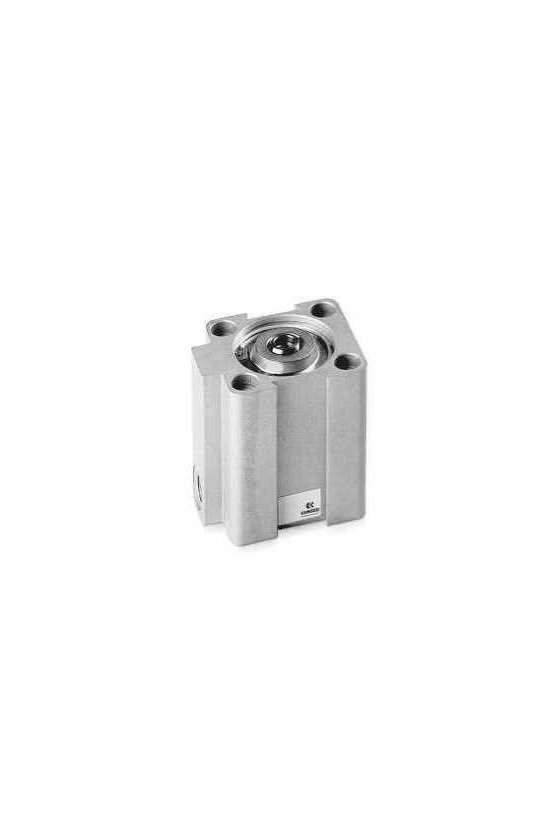

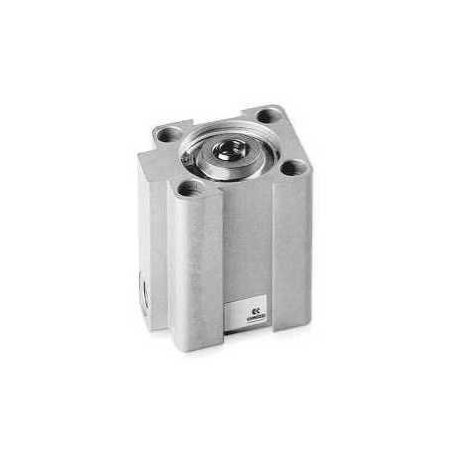

Short-stroke cylinders Series QN - bores ø 32, 50 and 63

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

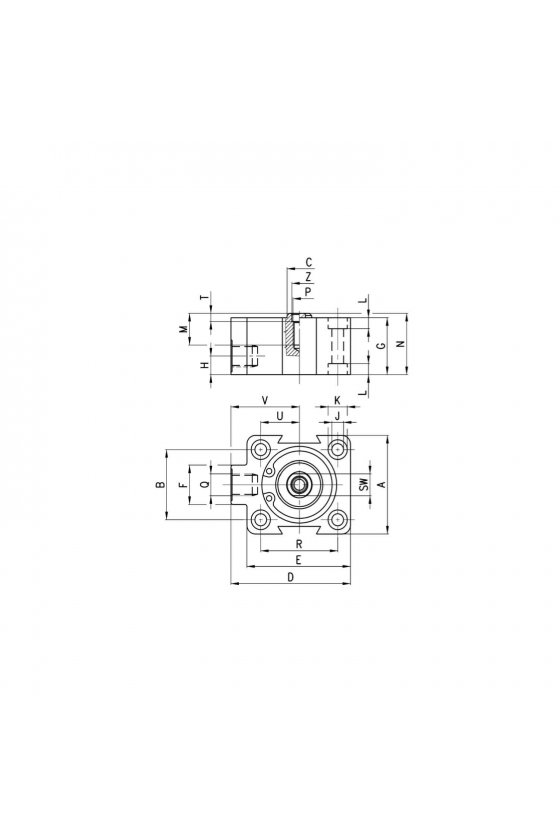

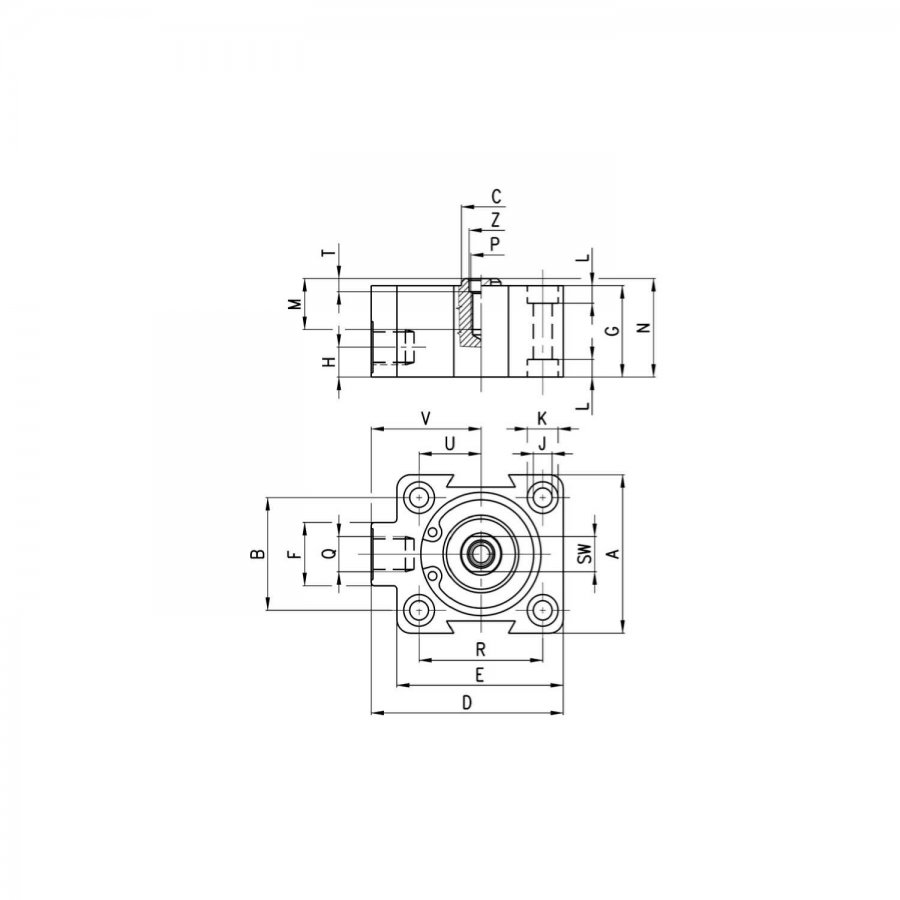

Mod.	Ø	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	SW	T	U	V	Z
QN1A32A05	32	45	32	12	56	48,5	18	26	8,5	5,5	9	5	14,5	27	M6	G18	36	10	2,5	18	32	7

Series general data

Type of construction	compact
Operation	single-acting
Materials	aluminium body - NBR seals - other materials in stainless steel and brass
Operating pressure	P. min 2 bar P. max 10 bar
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Fluid	clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
Bore	ø 8, 12, 20, 32, 50, 63
Stroke	see table
Type of mounting	by means of screws in the body
