QN1A50A10 CILINDRO DE CARRERA CORTA S.E. SERIE

Referencia QN1A50A10

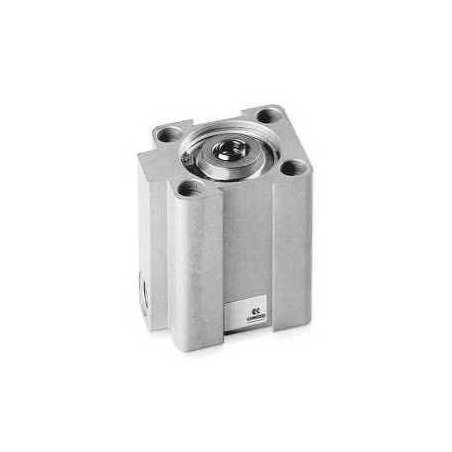

CILINDRO DE CARRERA CORTA S.E. SERIE

QN1A50A10
Short-stroke cylinders Series QN - bores ø 32, 50 and 63

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

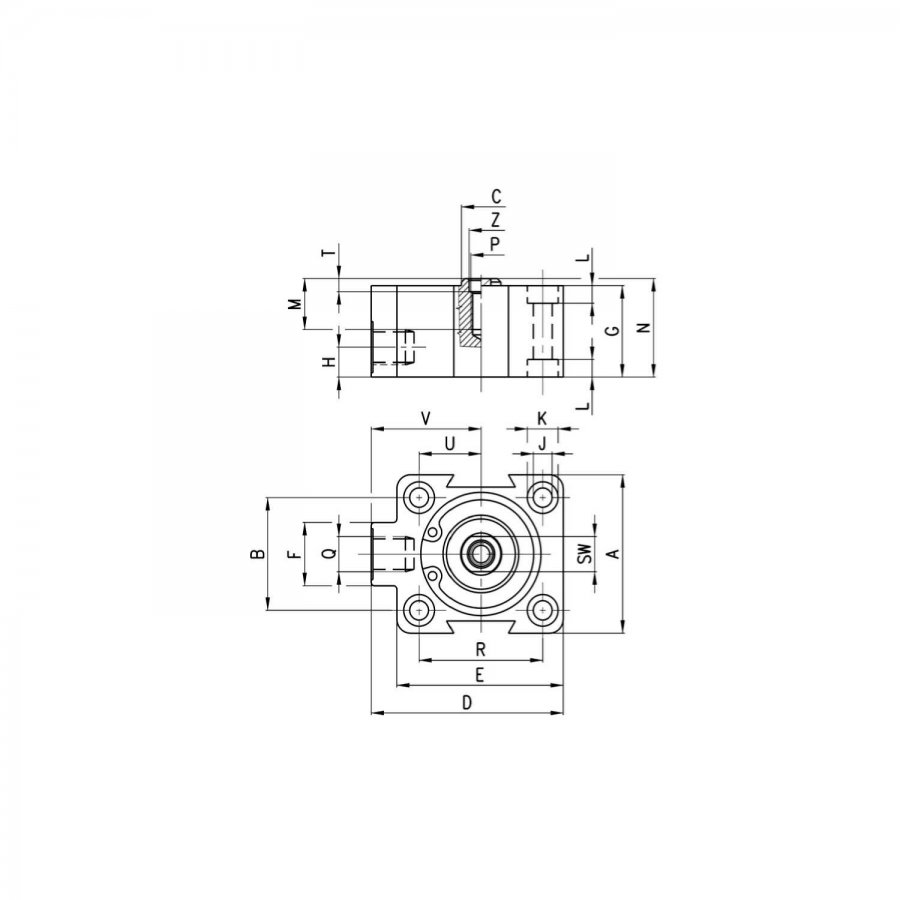

Code properties

Mod.	Ø	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Q	R	SW	T	U	V	Z
QN1A50A10	50	64	50	16	72	64	20	30	8,5	6,5	10,5	6,3	15,5	31	M8	G18	50	13	3,5	25	40	8,5

Series general data

Type of construction	compact
Operation	single-acting
Materials	aluminium body - NBR seals - other materials in stainless steel and brass
Operating pressure	P. min 2 bar P. max 10 bar
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Fluid	clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
Bore	ø 8, 12, 20, 32, 50, 63
Stroke	see table
Type of mounting	by means of screws in the body
