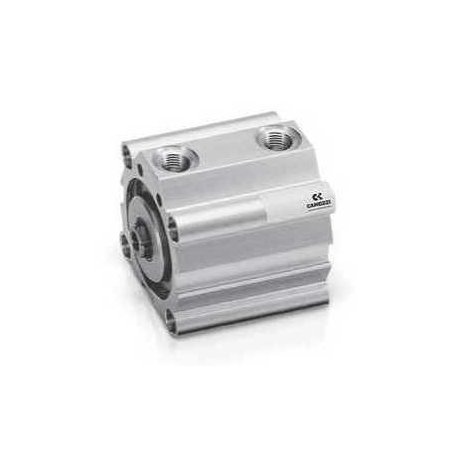

QP2A020A010 CILINDRO DE CARRERA CORTA S.E. SERIE

QP2A020A010

CILINDRO DE CARRERA CORTA S.E. SERIE

QP2A020A010
Short-stroke cylinders Series QP

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

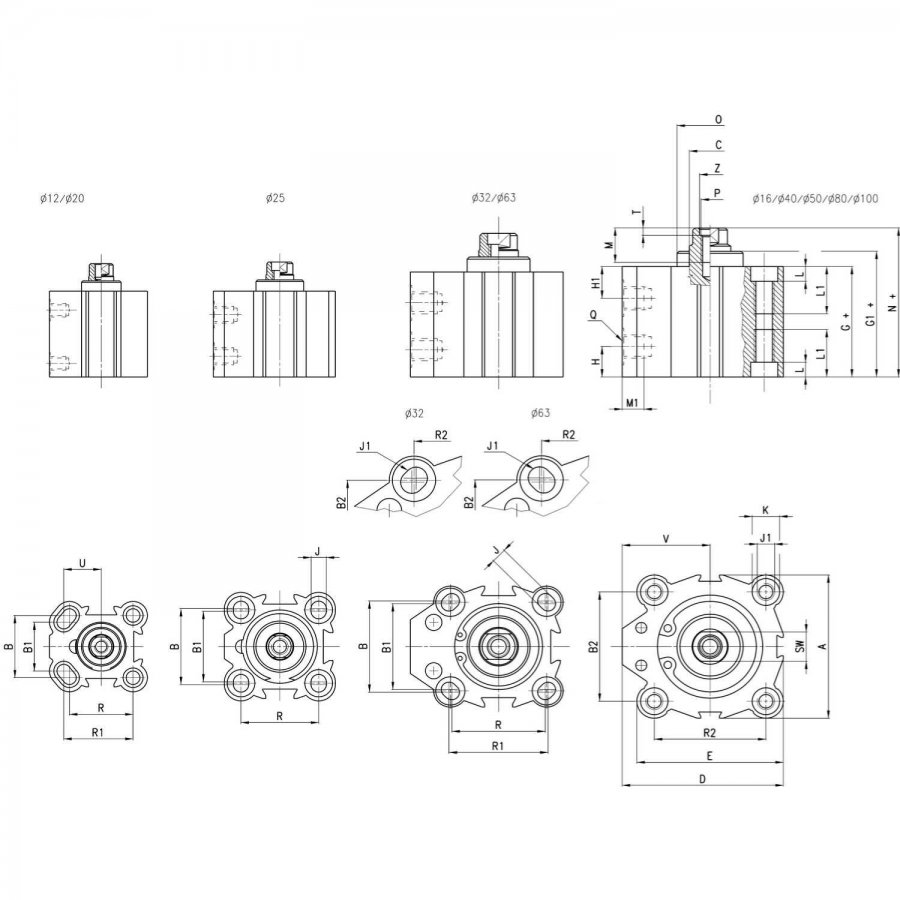

Ø A B B1 B2 C D E G + G1 + H1 H J J1 K L L1 M M1 N + O P Q R R1 R2 SW T U V Z
20 37 25.5 20 - 10 39.25 39.25 31.2 31.7 9.8 9.8 5.5 - 9 6 - 8 4.5 36 19.5 M6 M5 25.5 27.75 - 8 - 15 20.75 -
Series general data

Type of construction Series QP: compact profile Series QPR: compact with non rotating guides
Operation Series QP: single and double-acting Series QPR: double-acting
Materials body: anodized AL rod: rolled stainless steel piston seals: PU rod seals: PU (Ø 12 ÷ 25 mm) - NBR (Ø 32 ÷ 100 mm)
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Assembly by means of screws or brackets
Operating pressure 1 ÷ 10 bar (double-acting) 2 ÷ 10 bar (single-acting)
Fluid filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Strokes (min-max) Series QP: 1 ÷ 150 mm (ø12 ÷ ø 25) - 1 ÷ 200 mm (ø 32 ÷ ø 100) Series QPR: 1 ÷ 50 mm (ø 12) - 1 ÷ 75 mm (ø 16) - 1 ÷ 100 mm (ø 20 ÷ ø 100)
Strokes the minimum stroke for use of the sensors is 10 mm
Bores ø 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
