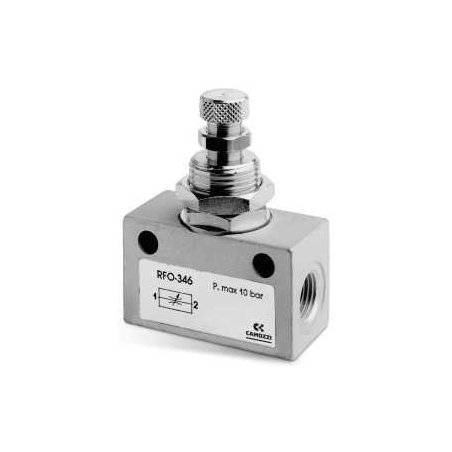

IMAGEN DE REFERENCIA

RFO 344-1/4 REGULADOR DE CAUDAL BIDIRECCIONAL

RFO 344-1/4

REGULADOR DE CAUDAL BIDIRECCIONAL

RFO 344-1/4
Bidirectional flow control valves Series RFO

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

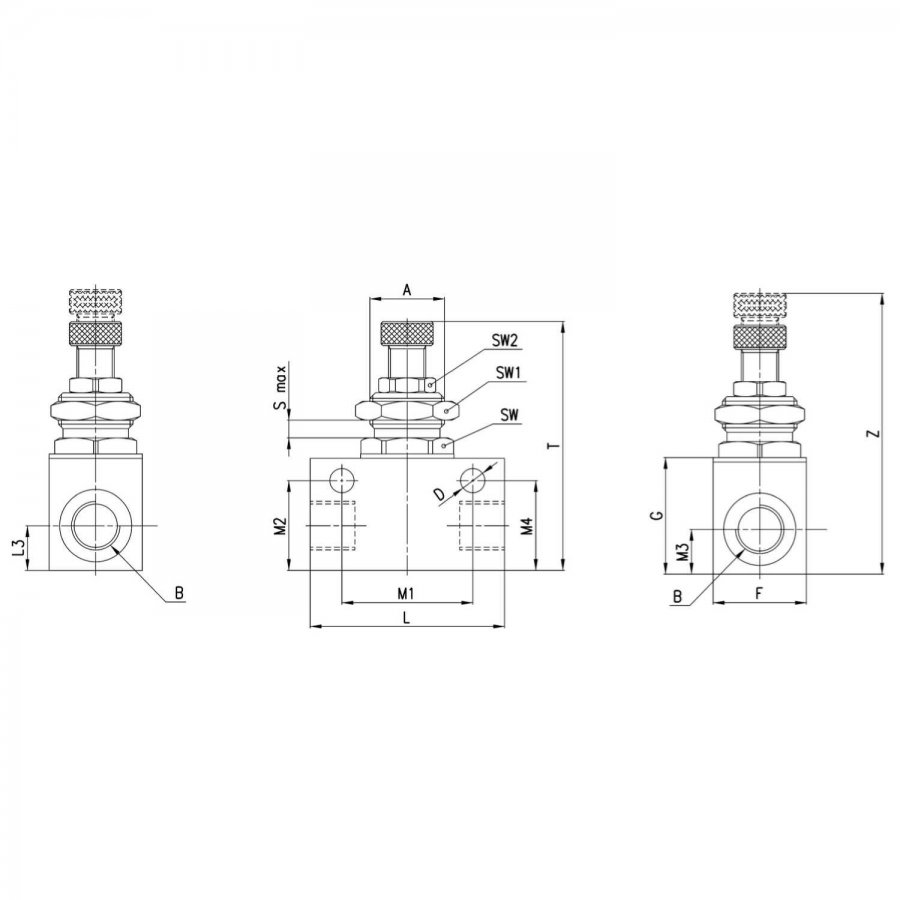

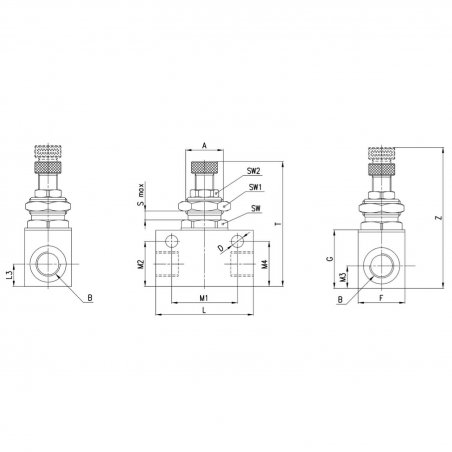

Code properties

Mod. Ø A B D F G L M1 M2 M3 L3 M4 T Z S SW SW1 SW2
RFO 344-1/4 4 M20x1.5 G1/4 6.5 25 30 52 35 24 12 - 24 60 69 7 22 24 14
Series general data

Construction needle-type
Valve group unidirectional and bidirectional controller
Materials AL body - brass needle (not nickel-plated) - NBR seals
Mounting with screws in the holes of the valve body or panel mounted
Threaded ports M5 - G1/8 - G1/4 - G3/8 - G1/2
Installation as required
Operating temperature 0°C ÷ 80°C (with dry air - 20°C)
Operating pressure 1 ÷ 10 bar (for models with M5 - G1/8 - G1/4 ports) 2 ÷ 10 bar (for models with G3/8 - G1/2 ports)
Nominal pressure 6 bar
Nominal flow see graph
Nominal diameter M5 = 1,5 - G1/8 = 2 or 3 mm - G1/4 = 4 or 6 mm - G3/8 and G1/2 = 7 mm
Fluid filtered air
