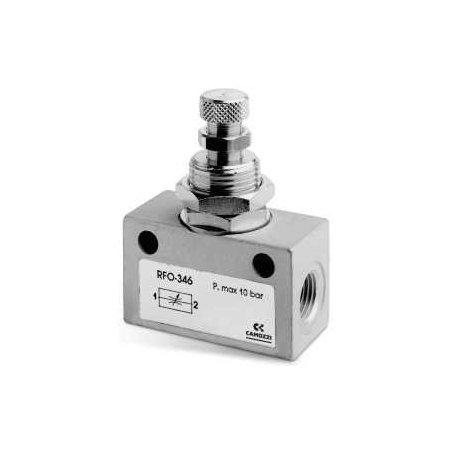

RFO 377-1/2 REGULADOR DE CAUDAL BIDIRECCIONAL

Referencia RFO 377-1/2

REGULADOR DE CAUDAL BIDIRECCIONAL

RFO 377-1/2
Bidirectional flow control valves Series RFO

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

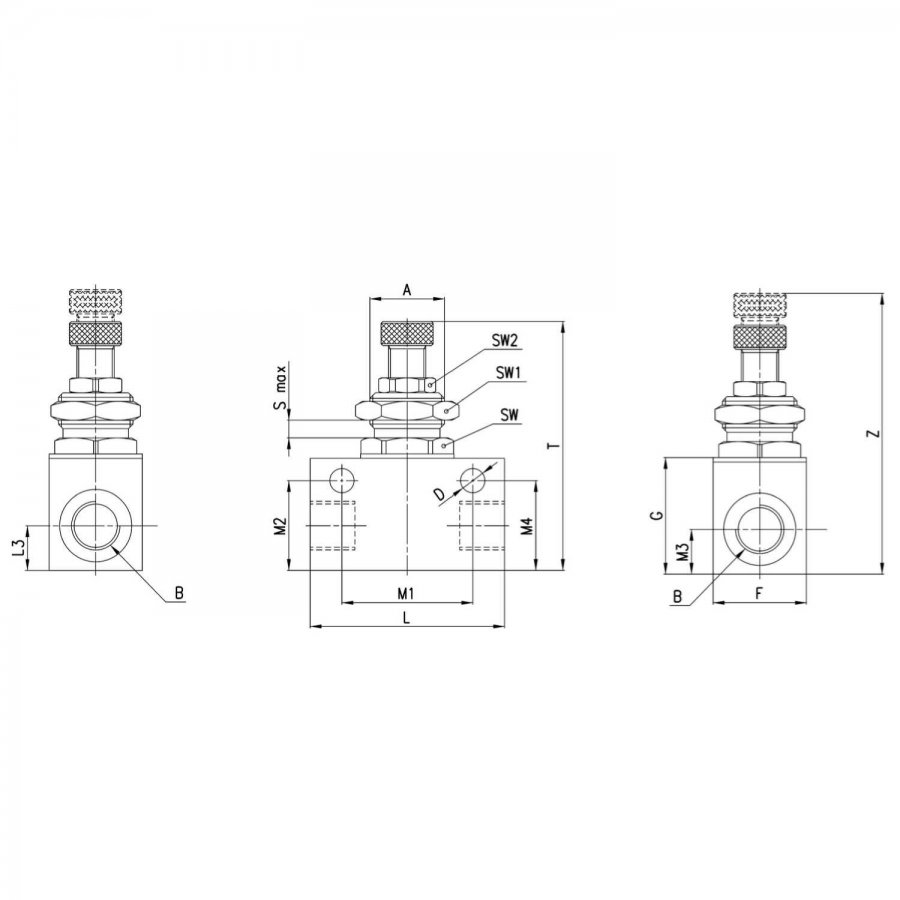

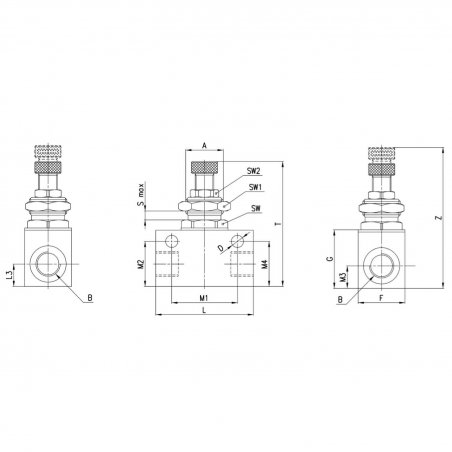

Code properties

Mod.

SW1

SW2

RFO 377-1/2

M18x1

G1/2

6.5

34.5

7.5

Series general data

Construction	needle-type
Valve group	unidirectional and bidirectional controller
Materials	AL body - brass needle (not nickel-plated) - NBR seals
Mounting	with screws in the holes of the valve body or panel mounted
Threaded ports	M5 - G1/8 - G1/4 - G3/8 - G1/2
Installation	as required
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Operating pressure	1 ÷ 10 bar (for models with M5 - G1/8 - G1/4 ports) 2 ÷ 10 bar (for models with G3/8 - G1/2 ports)
Nominal pressure	6 bar
Nominal flow	see graph
Nominal diameter	M5 = 1,5 - G1/8 = 2 or 3 mm - G1/4 = 4 or 6 mm - G3/8 and G1/2 = 7 mm
Fluid	filtered air
