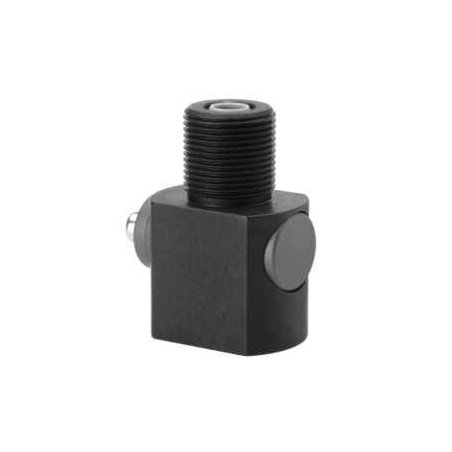

RLC-24-25 MECANISMO BLOQUEO VASTAGO

Referencia RLC-24-25

MECANISMO BLOQUEO VASTAGO

RLC-24-25
Series RL Rod Lock - Ø 20 - 25 mm

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

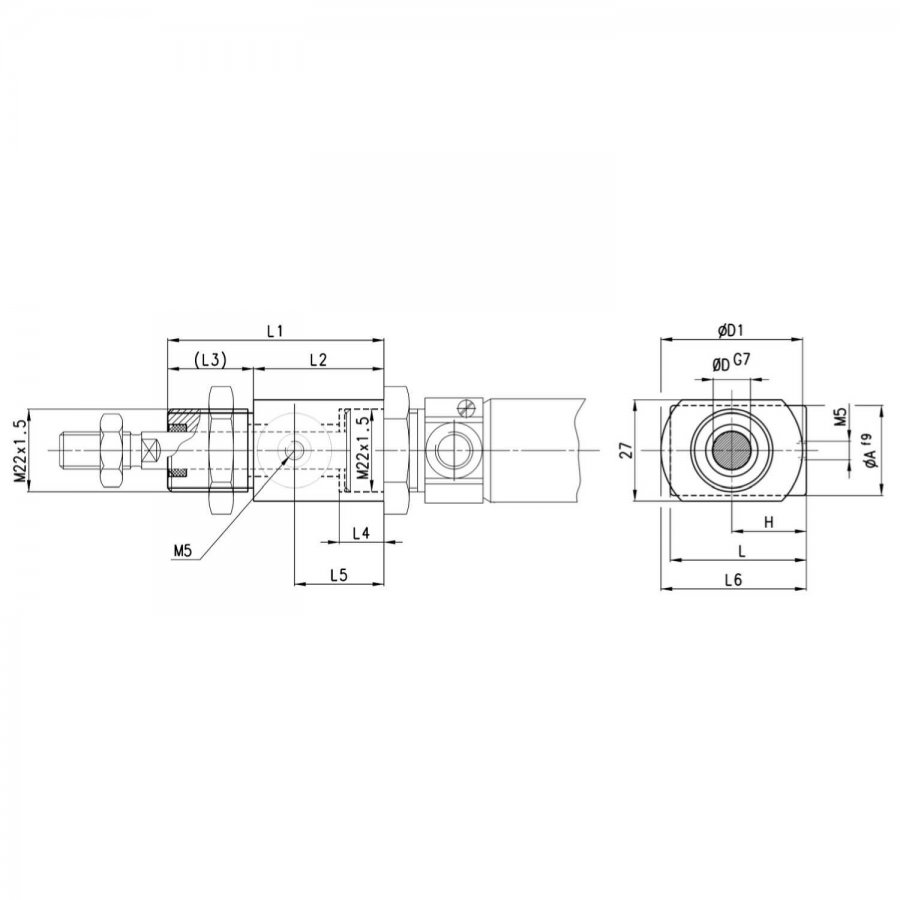

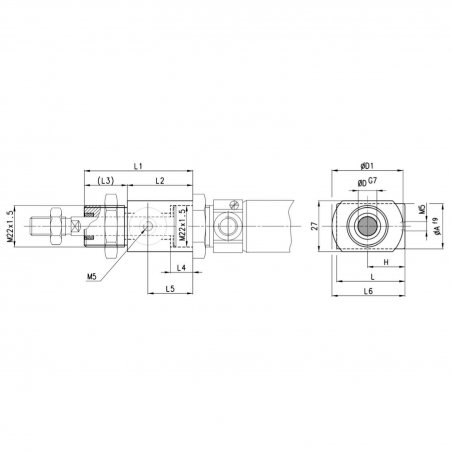

Mod.	Ø	D	A	D1	H	L	L1	L2	L3	L4	L5	L6
RLC-24-25	25	10	20	38	21	40	58	35	23	12	24	40

Series general data

Type of construction	compact
Operation	piston operated clamp
Materials	housing: anodized AL clamp: brass seals: NBR
Cylinder diameter	ø 20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 - 125
Operating temperature	0°C ÷ 80°C (with dry air -20°C)
Configuration	pressure release
Operating pressure	3 ÷ 8 bar
Ports	M5 = ø20, 25, 32 - G1/8 = ø40, 50, 63, 80, 100, 125
Fluid	Filtered air without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted
