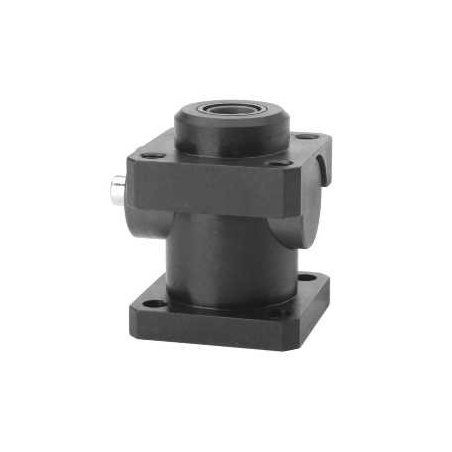

RLC-41-125 MECANISMO BLOQUEO VASTAGO D-125

Referencia RLC-41-125

MECANISMO BLOQUEO VASTAGO D-125

RLC-41-125
Series RL Rod Lock - Ø 32 ÷ 125 mm

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

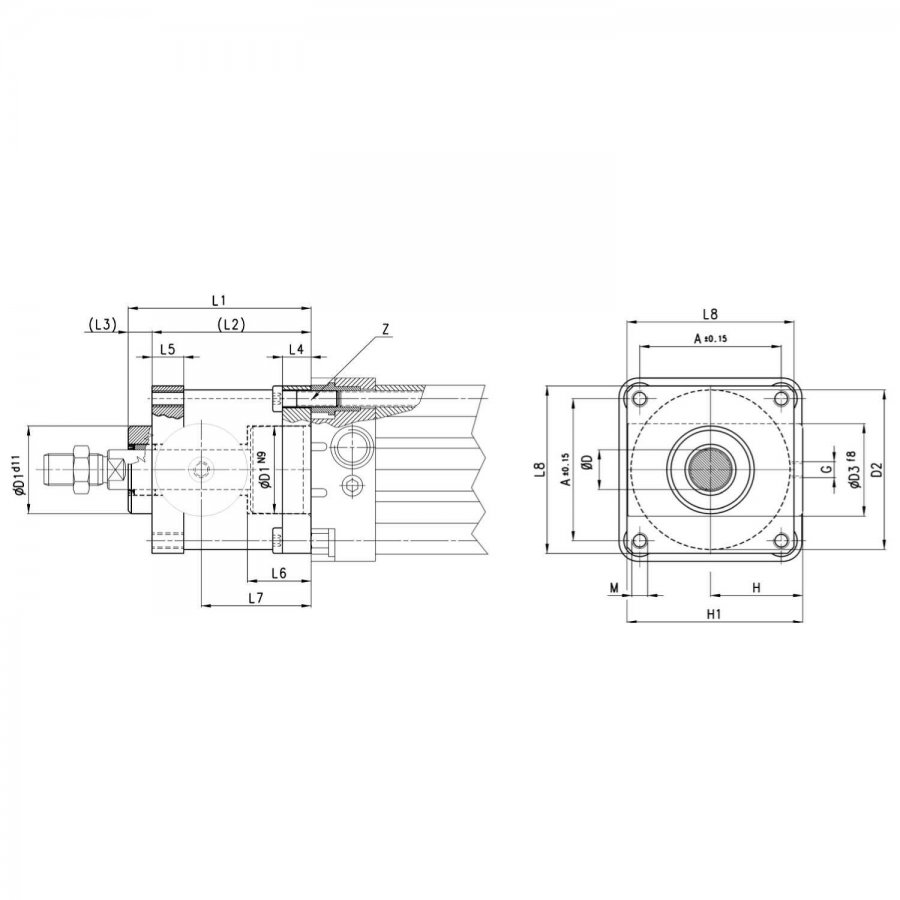

Code properties

Mod.	Ø	D	D1	D2	D3	G	L1	L2	L3	L4	L5	L6	L7	L8	A	M	H	H1	Z
RLC-41-125	125	32	60	130	65	G1/8	167	122	45	22	30	51	86,5	140	110	M12	80	150	M12X40

Series general data

Type of construction	compact
Operation	piston operated clamp
Materials	housing: anodized AL clamp: brass seals: NBR
Cylinder diameter	ø 20 - 25 - 32 - 40 - 50 - 63 - 80 - 100 - 125
Operating temperature	0°C ÷ 80°C (with dry air -20°C)
Configuration	pressure release
Operating pressure	3 ÷ 8 bar
Ports	M5 = ø20, 25, 32 - G1/8 = ø40, 50, 63, 80, 100, 125
Fluid	Filtered air without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted.
