IMAGEN DE REFERENCIA

  • Sobre pedido

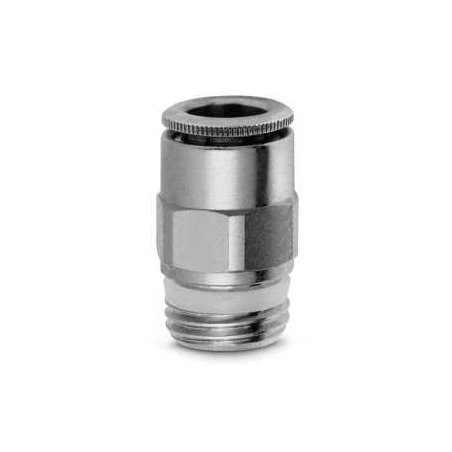

S6510 12-3/8 RACOR SUPER RAPIDO RECTO MACHO

0 Reseñas(s)
S6510 12-3/8

RACOR SUPER RAPIDO RECTO MACHO

S6510 12-3/8
Fittings Mod. S6510

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

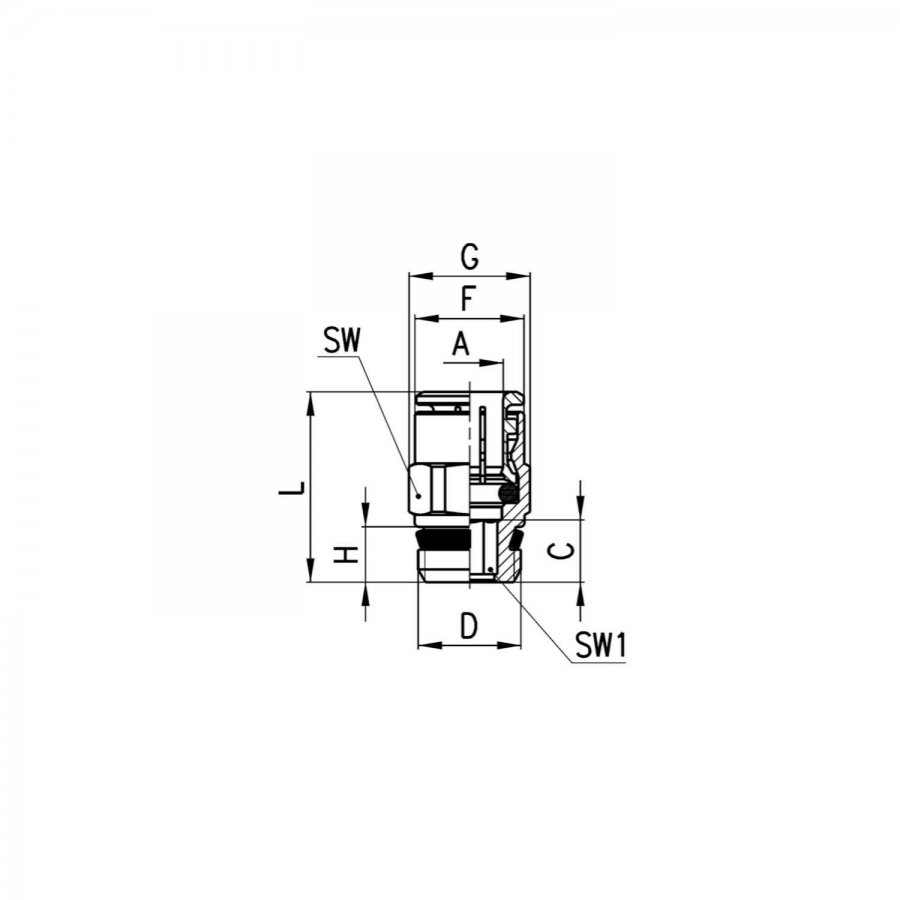

Mod. A D C F G H L SW SW1 Weight (g)
S6510 12-3/8 12 G3/8 9,3 18,3 20,5 8 28,5 19 9 30
Series general data

Diameters ø 4 - 5 -6 - 8 - 10 - 12 - 14 - 16 mm Micro models: ø 3 - 4 - 6 - 8 - 10 mm
Threads GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other metric threads available on request; NPT on request Micro models: M3 - M5 - M7 - G1/8 - G1/4
Temperature -20°C ÷ 80°C (see the technical data of tubing used) Micro models: -10°C ÷ 80°C (see the technical data of tubing used)
Tube to connect Polyamide (PA) 6 - 11 - 12, Polyurethane (PU), Polyethylene (PE), hytrel Polyester
Fluid compressed air (for other types of fluid, contact our engineers)
Materials - standard models: body and collet in nickel-plated brass, O-Ring in NBR, thread seals in PTFE - NBR - PA - models with self-retaining device: body and collet in nickel-plated brass, poppet valve in brass, spring in stainless steel, O-Ring in NBR, thread seals in PTFE
Working pressure - standard models: min -0,9 bar - max 16 bar (see tubing) - models with self-retaining device: 0 ÷ 16 bar
