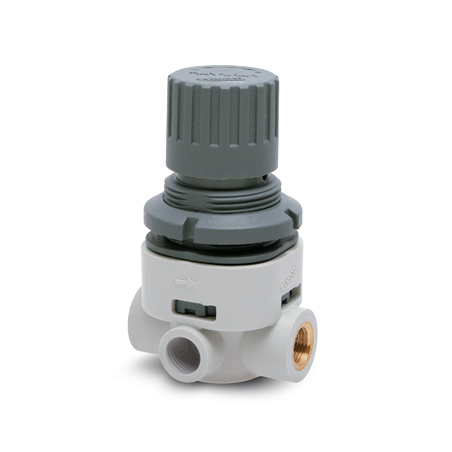

IMAGEN DE REFERENCIA

T108-R00 REGULADOR PRESION 1/8 (0-10 BARS)

T108-R00

REGULADOR PRESION 1/8 (0-10 BARS)

T108-R00
Series T pressure microregulator

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod. A B C F G I L M N R S U
T108-R00 77 35 42 9.5 25.5 28 M30X1.5 46 41 3 7 G1/8
Series general data

Construction piston
Materials technopolymer body and piston, stainless steel spring, brass inserts, NBR O-ring and poppet
Ports G1/8 - G1/4
Weight g 95
Pressure gauge ports G1/8
Mounting in-line or panel mounting (in any position)
Operating temperature -5°C ÷ 50°C (with the dew point of the fluid lower than 2°C at the min. working temperature)
Inlet pressure 0 ÷ 12 bar
Outlet pressure 0.5 ÷ 10 bar (standard) 0 ÷ 2 bar 0 ÷ 4 bar 0.5 ÷ 7 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Secondary pressure relieving with relieving (standard) without relieving (all regulators are provided with high relief flow VS function)
fluid compressed air
