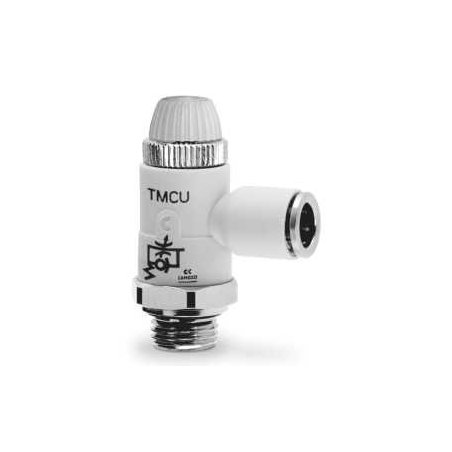

TMCU 976-1/8-8 REGULADOR DE CAUDAL CIL. UNIDIR. MAN.

Referencia TMCU 976-1/8-8

REGULADOR DE CAUDAL CIL. UNIDIR. MAN.

TMCU 976-1/8-8
Series TMCU valves

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

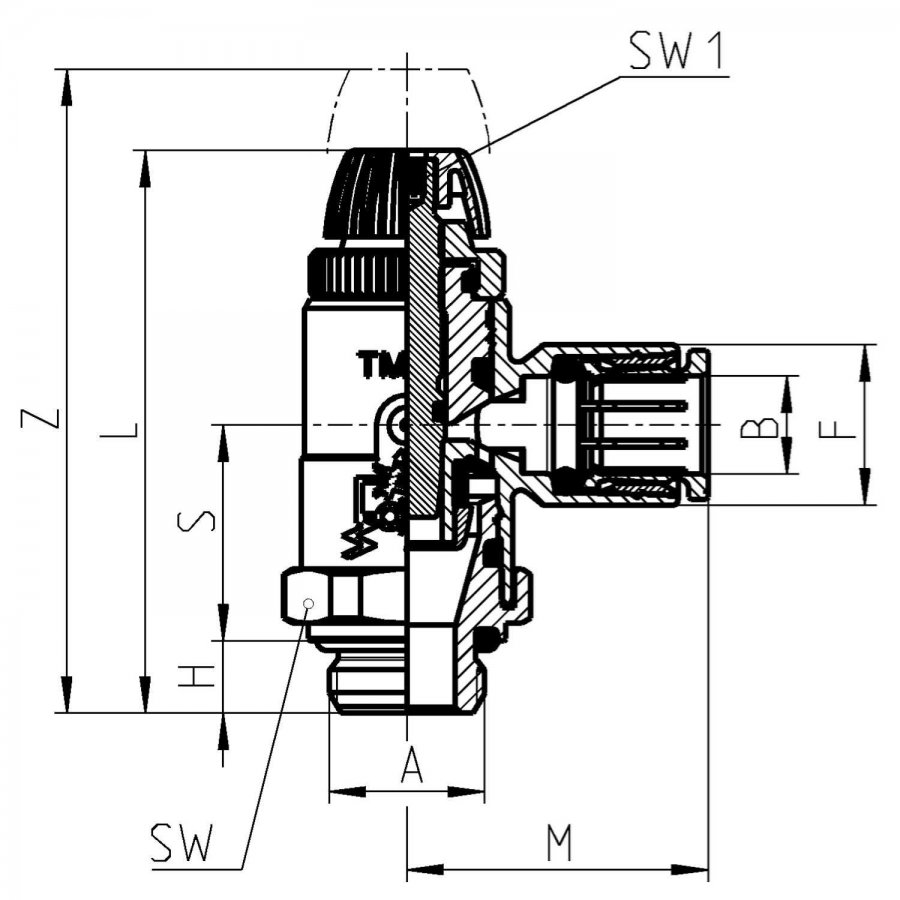

Mod.	A	B	F	H	L	M	S	SW	SW1	Z
TMCU 976-1/8-8	G1/8	8	13,5	5	47	25	17,5	19	2,5	54

Series general data

Construction	needle - type
Valve group	unidirectional and bidirectional controller
Materials	brass - technopolymer - NBR
Mounting	by male threaded
Threaded ports	G1/8 - G1/4 - G3/8 - G1/2
Installation	in any position
Operating temperature	0°C ÷ 60°C (with dry air -20°C)
Operating pressure	0,5 ÷ 10 bar
Nominal pressure	6 bar
Nominal flow	see graph
Nominal dia.	Tube 4 Ø2 - Tube 6 Ø3,8 - Tube 8 Ø5,8 - Tube 10 and 12 Ø8
Fluid	filtered air If lubricated air is used, it is recommended to use ISOVG 32 oil. Once applied the lubrication should never be interrupted.
