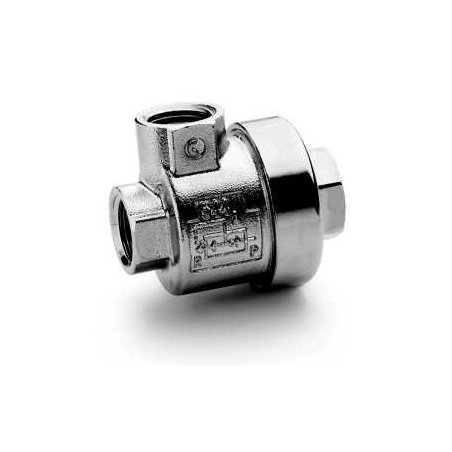

IMAGEN DE REFERENCIA

VSC 588-1/8 VALVULA DE ESCAPE RAPIDO 1/8

VSC 588-1/8

VALVULA DE ESCAPE RAPIDO 1/8

VSC 588-1/8
Series VSC quick exhaust valves

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

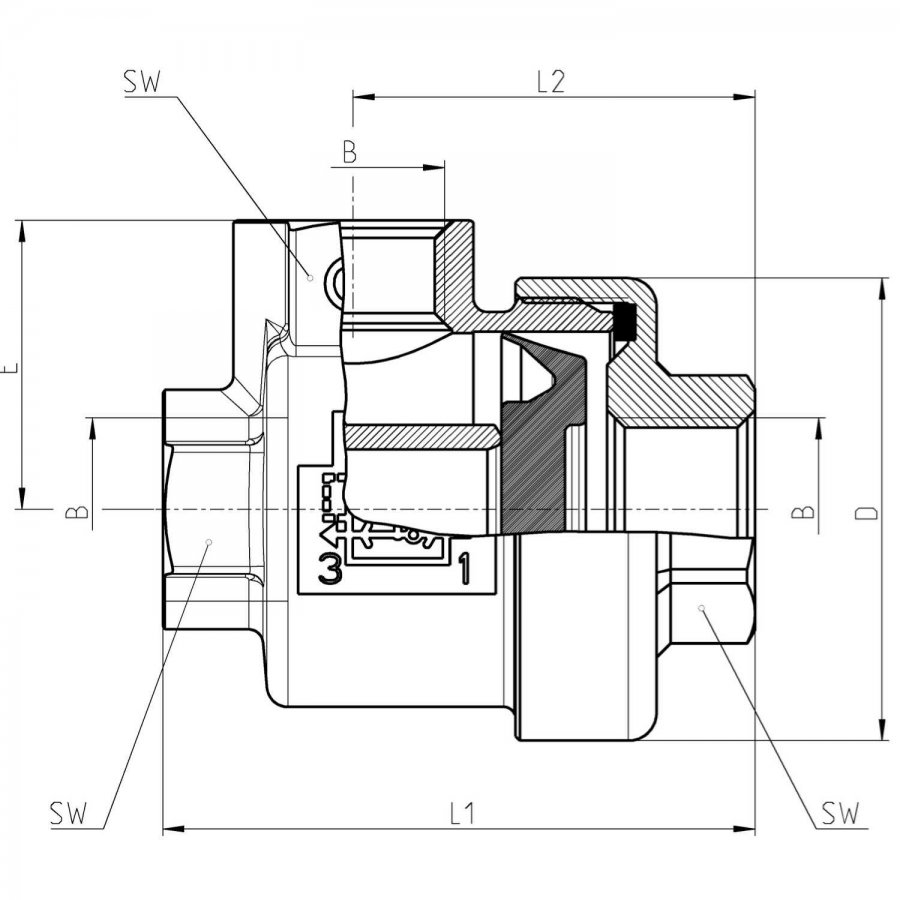

Mod. B D E L1 L2 SW Ports Medium inlet flow rate 1 > 2 [flow at 6 bar, ∆P 1 bar] (Nl/min) Medium exhaust flow rate 2 > 3 [flow at 6 bar, ∆P 1 bar] (Nl/min) Min. operating pressure (bar) Max working pressure (bar)
VSC 588-1/8 1/8 28 17.5 36.5 25 14 G1/8 630 940 0.5 12
Series general data

Valve group automatic valves
Construction poppet-type
Materials Series VSO: brass body - NBR seals Series VSC: brass body - Desmopan seal
Mounting in any position
Ports Series VSO: M5, G1/8, cartridge ø4 Serie VSC: G1/8, G1/4, G1/2
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Fluid filtered air, without lubrication. If lubricated air is used, it is recommended to use ISO VG32 oil. Once applied the lubrication should never be interrupted.
