VTCF-0050N-M5M VENTOSA NBR PLANA REDONDA 5mm, R-

Referencia VTCF-0050N-M5M

VENTOSA NBR PLANA REDONDA 5mm, R-

VTCF-0050N-M5M
Suction pad VTCF-0050 to 0500 - male thread

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

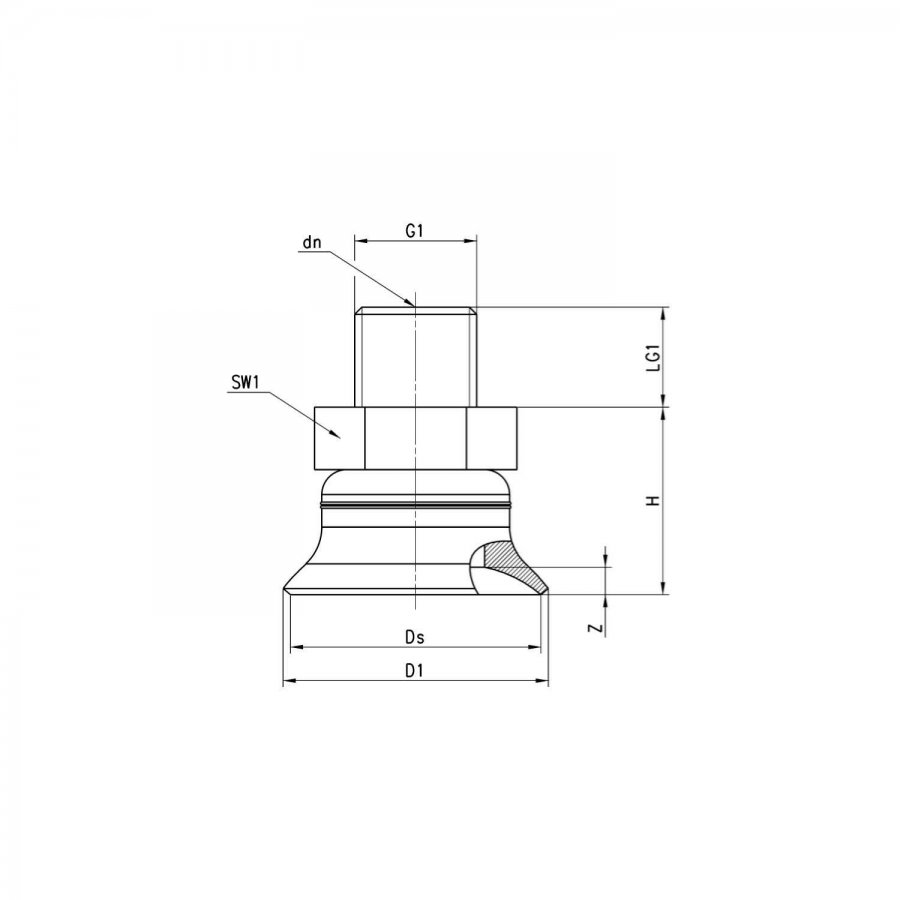

Suction pad with nipple	D1	dn	Ds	G1	H	LG1	SW1	Z	Suction pad	Nipple
VTCF-0050*-M5M	5,4	2	5	M5 M	11,5	4,5	8	0,9	VTCF-0050*	NPV-B-M5-M

Series general data

Description	robust hard-wearing suction pads consisting of suction pad VTCF and connection nipple
Constuction	- nipples and suction pads are supplied not assembled - diameters of 60 mm and more: nipple screwed into supporting plate vulcanised to the pad
Maintenance	it is possible to replace the soft element
Working temperature	NBR version: -30°C ÷ +120°C (for short time <30 sec.); -10°C ÷ +70°C (long-term) SILICONE version: -50°C ÷ +220°C (for short time <30 sec.); -30°C ÷ +180°C (long-term)
