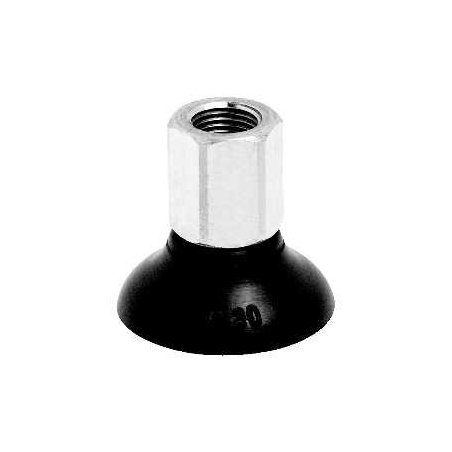

VTCF-0100S-1/8F VENTOSA SILICO PLANA REDONDA 10mm,

0 Reseñas(s)
VTCF-0100S-1/8F

VENTOSA SILICO PLANA REDONDA 10mm,

VTCF-0100S-1/8F
Suction pad VTCF-0050 to 0500 - female thread

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

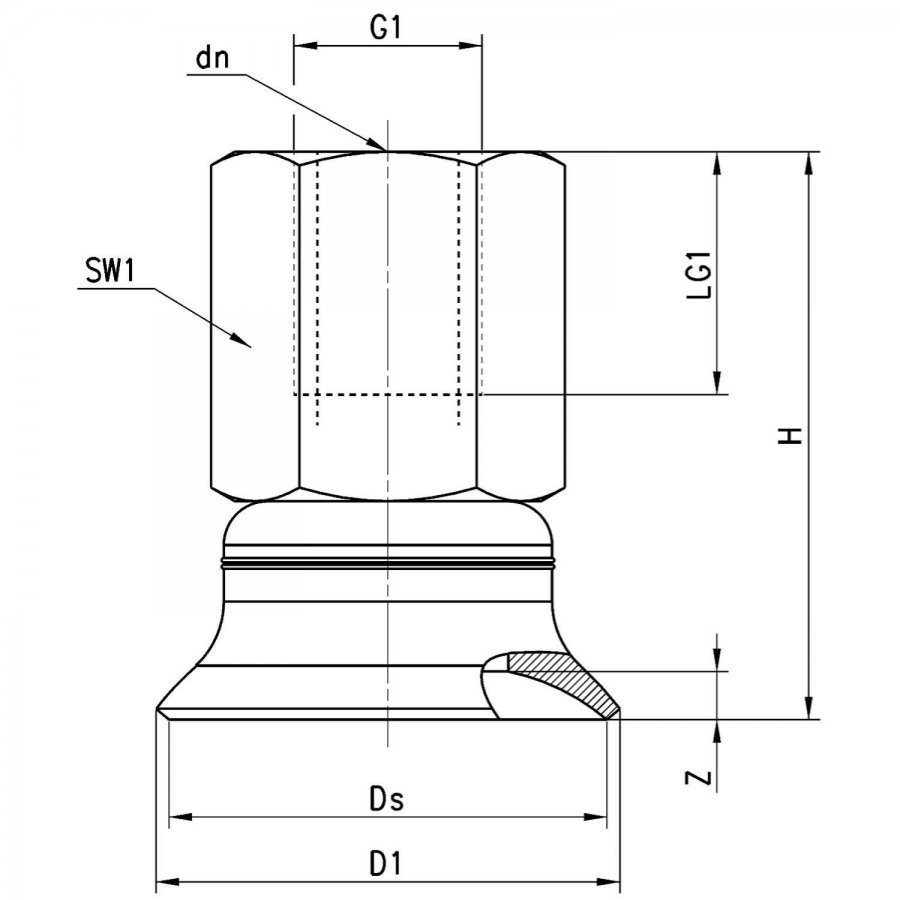

Suction pad with nipple D1 dm Ds G1 H LG1 SW1 Z Suction pad Nipple
VTCF-0100*-1/8F 10,7 2 10 G1/8 F 23,5 9 14 1,3 VTCF-0100* NPV-F-1/8-F
Series general data

Description robust hard-wearing suction pads consisting of suction pad VTCF and connection nipple
Constuction - nipples and suction pads are supplied not assembled - diameters of 60 mm and more: nipple screwed into supporting plate vulcanised to the pad
Maintenance it is possible to replace the soft element
Working temperature NBR version: -30°C ÷ +120°C (for short time <30 sec.); -10°C ÷ +70°C (long-term) SILICONE version: -50°C ÷ +220°C (for short time <30 sec.); -30°C ÷ +180°C (long-term)
