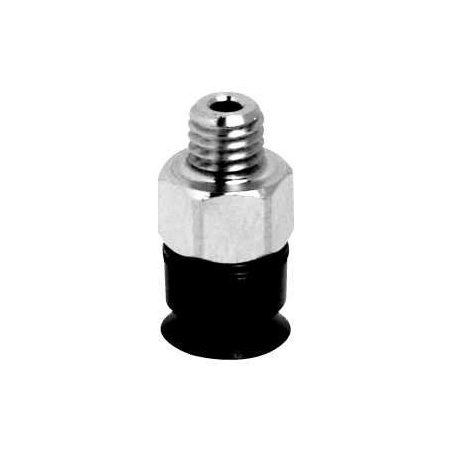

VTCF-0150N-1/8M VENTOSA VACIO PLANA REDONDA 15mm,

0 Reseñas(s)
VTCF-0150N-1/8M

VENTOSA VACIO PLANA REDONDA 15mm,

VTCF-0150N-1/8M
Suction pad VTCF-0050 to 0500 - male thread

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Code properties

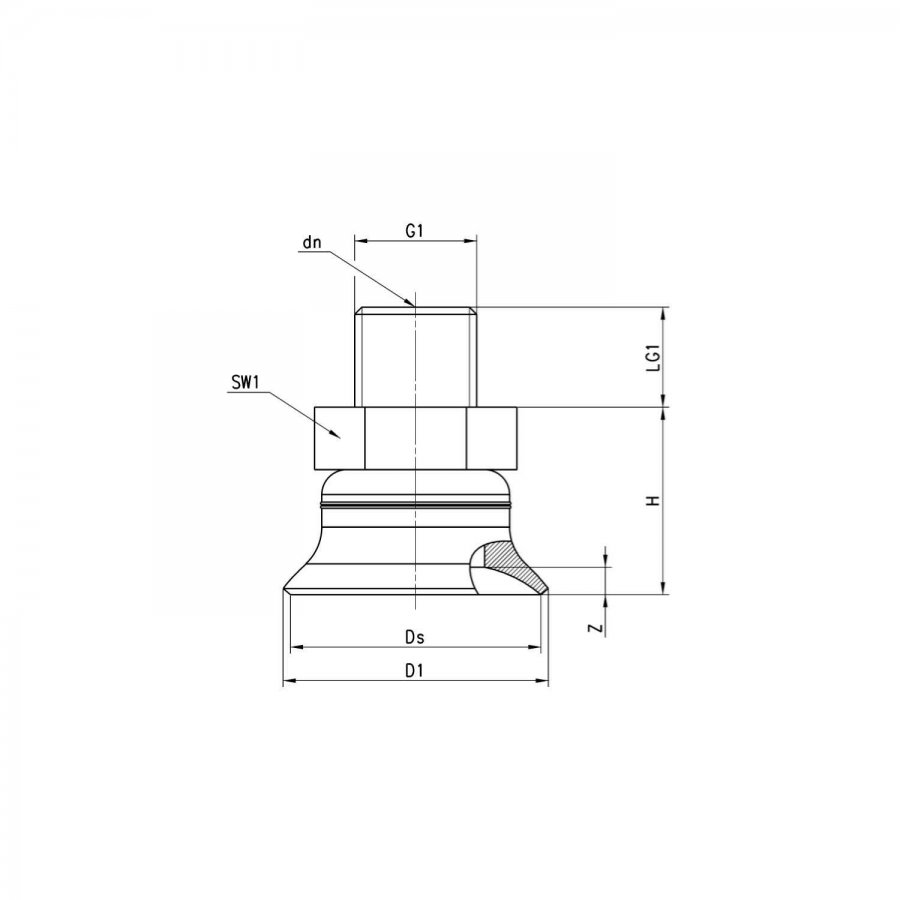

Suction pad with nipple D1 dn Ds G1 H LG1 SW1 Z Suction pad Nipple
VTCF-0150*-1/8M 15,8 2 15 G1/8 M 13 8 14 1,9 VTCF-0150* NPV-G-1/8-M
Series general data

Description robust hard-wearing suction pads consisting of suction pad VTCF and connection nipple
Constuction - nipples and suction pads are supplied not assembled - diameters of 60 mm and more: nipple screwed into supporting plate vulcanised to the pad
Maintenance it is possible to replace the soft element
Working temperature NBR version: -30°C ÷ +120°C (for short time <30 sec.); -10°C ÷ +70°C (long-term) SILICONE version: -50°C ÷ +220°C (for short time <30 sec.); -30°C ÷ +180°C (long-term)
