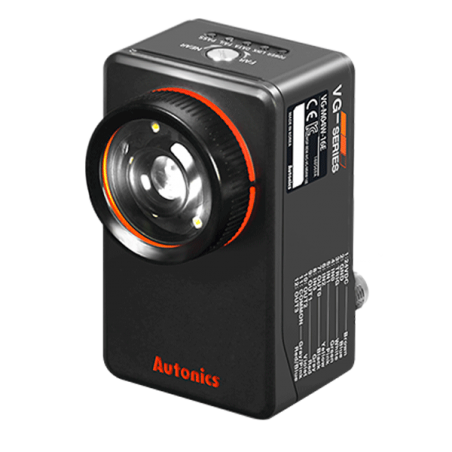

VG-M04B-16E Sensor de visión

VG-M04B-16E

Sensor de vision de inspeccion general, elemento de imagen monocromatico CMOS; resolucion 752x480, luz azul; longitud focal efectiva 16mm, comunicacion Ethernet (TCP/IP).

  • Effective focal length : 16mm
  • Min. sensing distance : 100mm
  • Power supply : 24VDC EQ.svg ±10%
  • Current consumption : 1A
  • Inspection_Inspection item : Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting
  • Environment_Ambient temperature : 0 to 45℃, storage: -20 to 70℃
  • Protection structure : IP67(IEC standard)
  • Approval : CE.svg KC.svg

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Serie: VG, Categoría: VISION SEN , EAN: A1655000011

Effective focal length 16mm
Min. sensing distance 100mm
Power supply 24VDC EQ.svg ±10%
Current consumption 1A
Inspection_Inspection item Alignment, brightness, contrast, area, edge, shape comparison, length, angle, diameter, object counting
Inspection_Work group 32
Inspection_Simultaneous inspection 64
Inspection_Camera frame per second Max. 60fps
Image snap_Image filter Preprocessing, external filter(color filter, polarizing filter)
Image snap_Image element 1/3 inch mono CMOS
Image snap_Resolution 752×480 pixel
Image snap_Camera frame per second Max. 60fps
Image snap_Shutter Global shutter
Image snap_Exposure time 20 to 10,000㎲
Light_ON/OFF method Pulse
Light_Color Blue
Trigger mode External trigger, internal trigger, free-run trigger
Input_Signal Rated input 24VDC EQ.svg (±10%)
Input_Type External trigger input(TRIG), encoder input(IN2, IN3), work group change(IN0 to IN3)
Output_Signal NPN or PNP open collector output
Max. 24VDC EQ.svg 50mA, residual voltage: max. 1.2VDC EQ.svg
Output_Type Control output(OUT0 to OUT3): inspection completion, inspection result, external light trigger, alarm, camera busy
Output_FTP transmission Possible
Communication Ethernet(TCP/IP), 100BASE-TX/10BASE-T
Protection circuit Output short over current protection circuit
Indicator ᆞPower indicator(POWER), Ethernet connection indicator(LINK), pass indicator(PASS): Green LED
ᆞData transmission indicator(DATA): Orange LED
ᆞFailure indicator(FAIL): Red LED
Insulation resistance Over 20MΩ (at 500VDC megger)
Dielectric strength 500VAC~ 50/60Hz for 1 min.
Vibration 1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature 0 to 45℃, storage: -20 to 70℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH

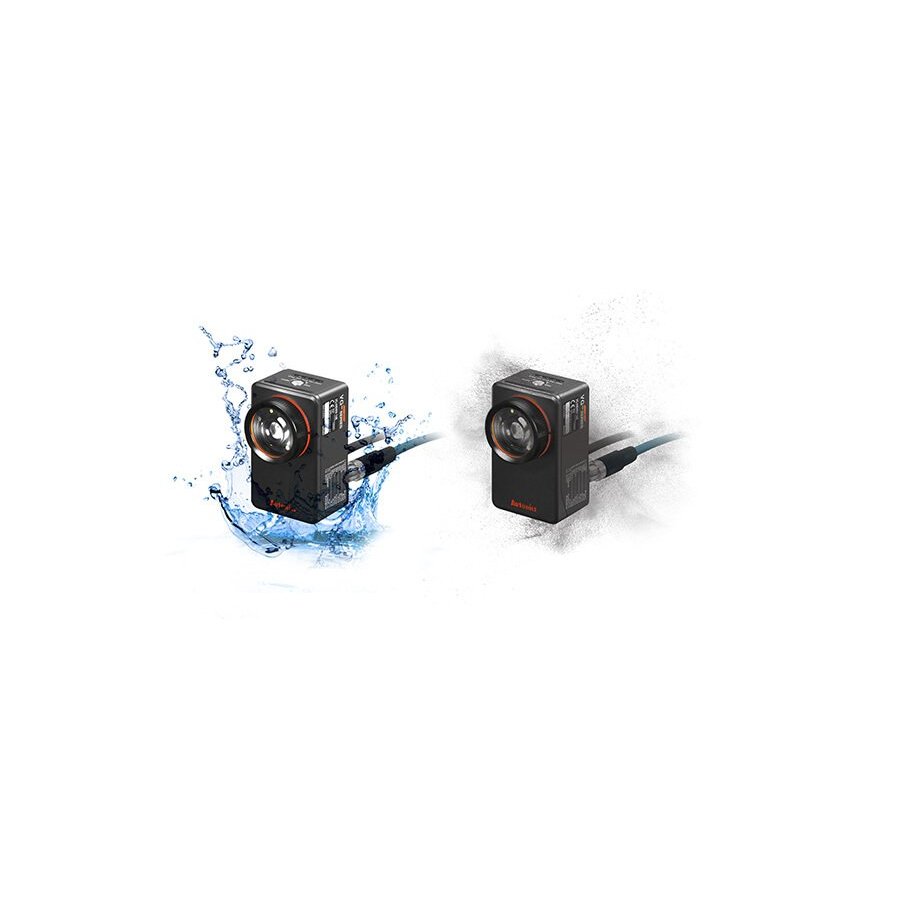

Protection structure IP67(IEC standard)
Material Case: aluminium, lens cover/focus adjuster: polycarbonate, cable: polyurethane
Accessories Assembly tool, bracket A, mounting screw: 2

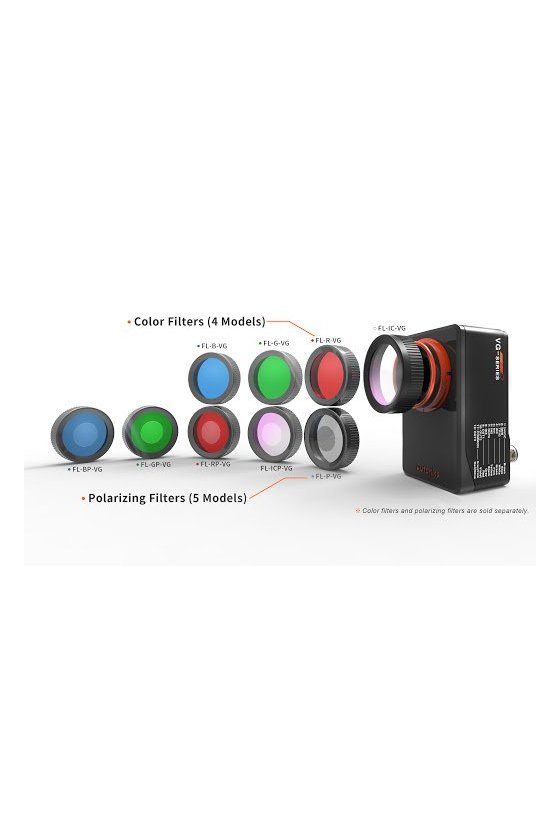

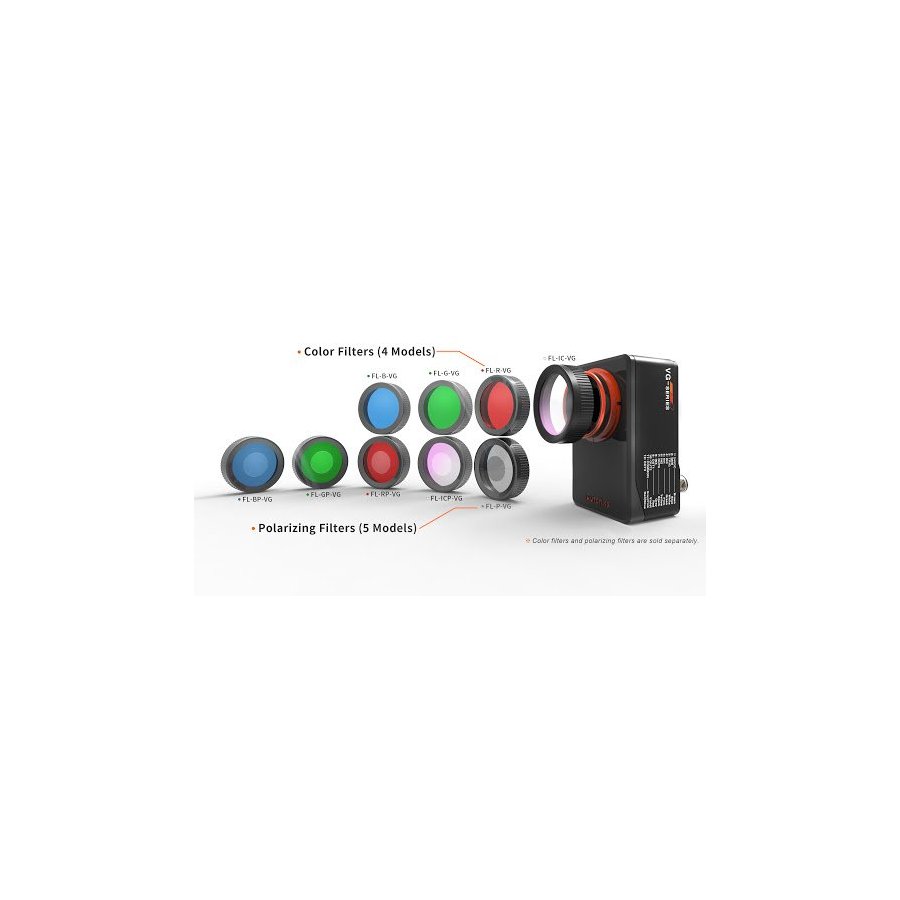

Sold separately Light, color filter, polarizing filter, power I/O cable, Ethernet cable, bracket B, protection cover
Approval CE.svg KC.svg
Weight Approx. 416g(approx. 274g)
