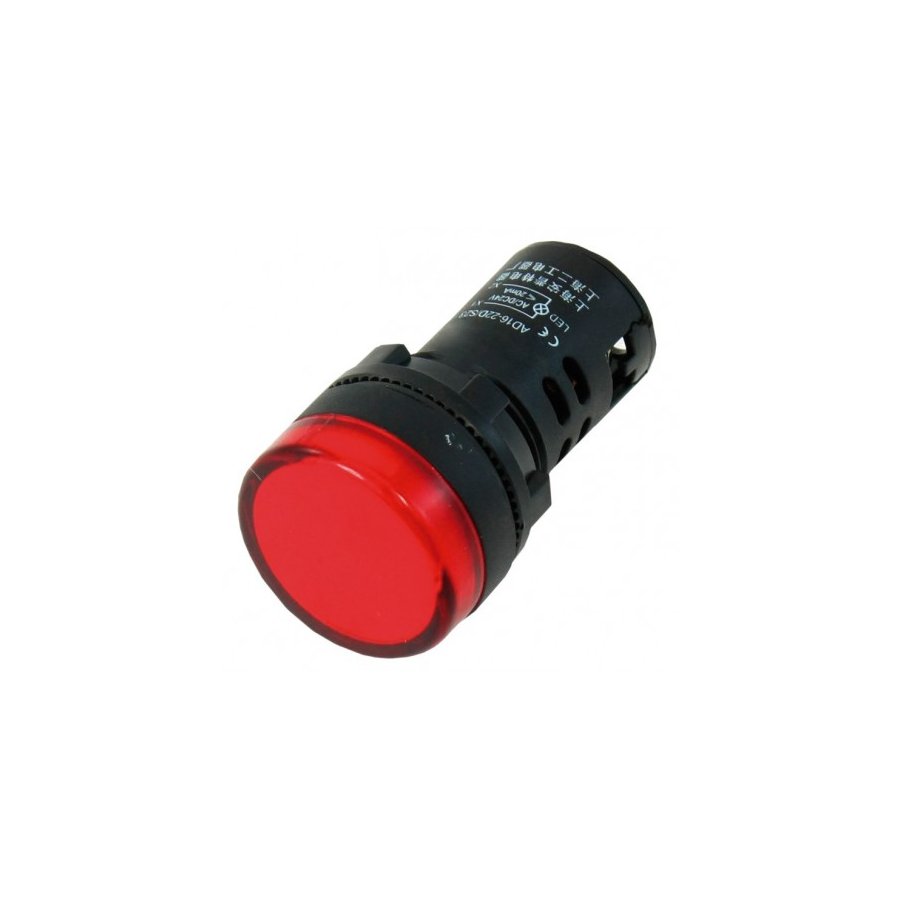

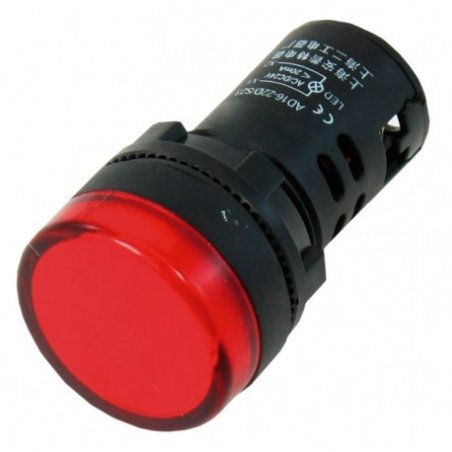

MRP-TA0R Lampara piloto rojo guarda plastica extendida 100-240vac 22mm

MRP-TA0R
Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Unidad de contacto de acción rápida

·         Brillante y duradero gracias al uso de luz LED

·         Protector de aluminio / Protector de plástico

·         Tipo de montaje (actuador y pieza de contacto)

·         Estructura de protección IP65 (Pulsador, Lámpara piloto, Parada de emergencia)

+ PILOT LAMP
Suffix code
MRP-A MRP-N MRP-R MRP-K MRP-T
Aluminum guard
(Ø30)
Aluminum guard
(Ø25)
Aluminum guard
(Ø22)
Plastic guard
(Ø25)
Plastic guard
(Ø22)


Contact composition 1a1b
Contact action Snap-action
Installing panel thickness 7.0 ㎜ (when excluded the additional accessories)

Material

Contact material AgSnO2
Contact body material Polycarbonate(P.C)
Mechanical characteristic Fixed torque Installing nut : 1.96 N•m max, Installing nut : 0.78 N•m max
Operating power 6.47 N (operation part + 1a1b contact)
Operating distance 5 ㎜ ±0.2
Reflection time max 3 ㎳
Durability of actuator Button: min 500 thousand times, Selector switch: min 200 thousand times
Electrical characteristic Dielectric strength 2,000 V a.c. 1 min
Contact resistance max 50 ㏁ (Initial setting)
Insulation resistance min 100 ㏁ 500 V d.c.
Rated current 6 A 250 V a.c.
Min load current 5 ㎃ 24 V d.c., 10 ㎃ 110 V d.c.
Min load current 200 thousand times
Light source Power supply voltage 100 - 240 V a.c. (LED condenser voltage dropping type)
380 V a.c. (LED condenser voltage dropping type)
12 - 24 V d.c./a.c. (LED resistance voltage dropping type)
Buzzer volume Approx. 90 dB
Environment condition Ambient temperature -20 ~ 55 ℃
Ambient humidity 35 ~ 85 % RH
Storage temperature -40 ~ 85 ℃
Shock resistance 300 ㎨ pulse cycle 11 ㎳
Vibration resistance 100 ㎨ 10 - 55 ㎐, amplitude 0.75 ㎜ (within 1 ㎳ )
