Product Specifications

Dimensions (in.)

11-13/16 in. high x 5-43/64 in. long (Union body no tailpieces)

Dimensions (mm)

300 mm high x 144 mm long (Union body no tailpieces)

Item Type

Product

Approvals, Canadian Standards Association

Certified (B356-10)

Operating Temperature Range (F)

140 F Maximum

Operating Temperature Range (C)

60 C Maximum

Approvals, Others

NSF/ANSI; IAPMO

Connection Type

Femaile NPT Threaded Inlet & Outlet Externally threaded for Unions

Pipe Size (inch)

2 IN.

Pipe Size (DN)

DN50

Valve Type

Pressure Regulating Valve

Controlled Fluid

Potable water

Materials (Body)

Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics.

Outlet Pressure Adjustment Range (psi)

25-90 psi

Max. Inlet Pressure Rating (psi)

250 psi

Gauge Tap

1/4 in. NPT (two, one on each side of body).

Calibrated Adjustment Dial

YES

Reducing Ratio

10:1 Maximum

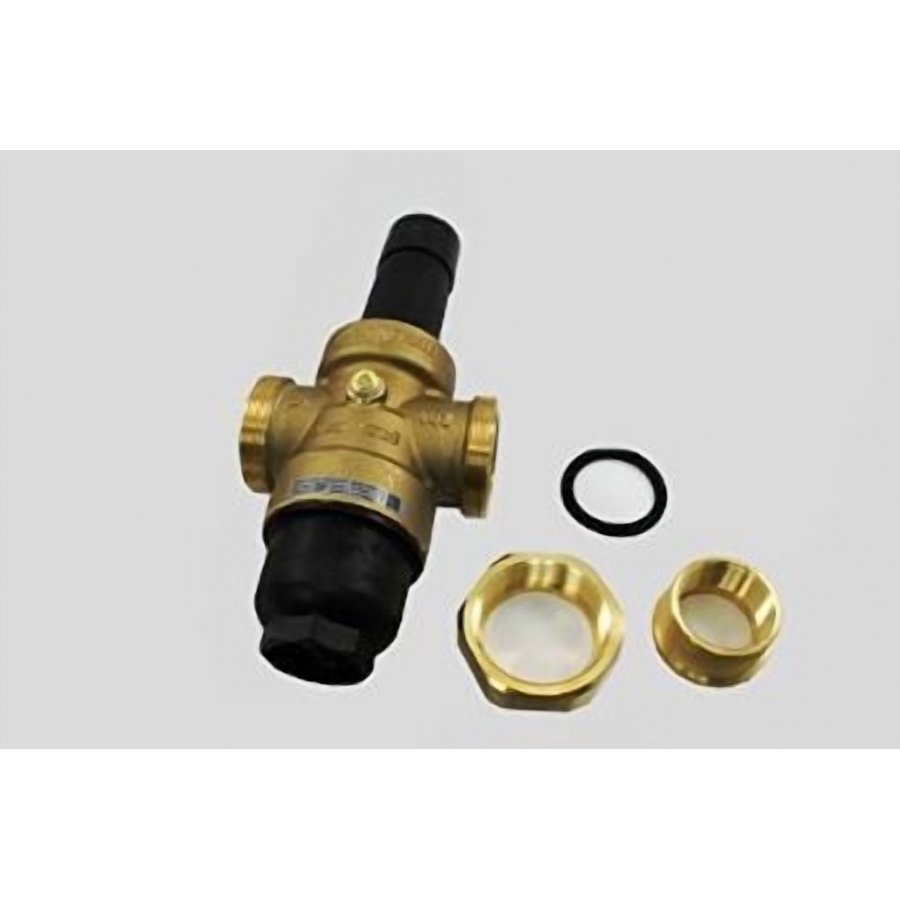

Union Fittings

Single-Union Threaded

Approvals, ASSE

Certified 1003-2009

Approvals, IAPMO

Listed
