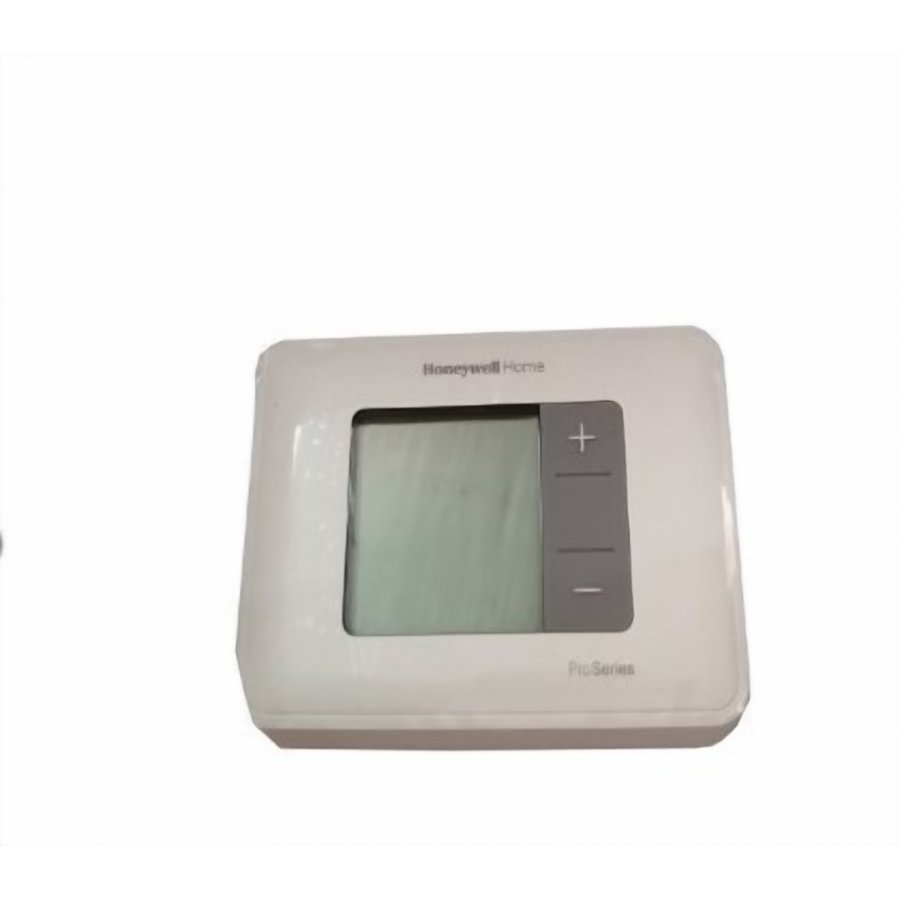

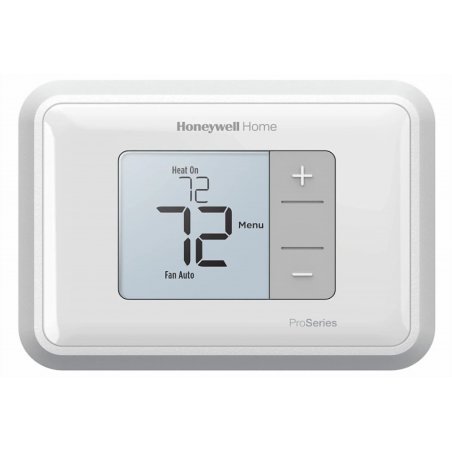

Product Specifications

Application

Conventional and Heat Pump systems

Dimensions (in.)

3.86 in. High x 5.36 in. Wide x 1.08 in. Deep

Dimensions (mm)

98 mm High x 136 mm Wide x 27.4 mm Deep

Includes

Thermostat, UWP mounting system, Installation (J-box) adaptor,

Item Type

Product

Mounting

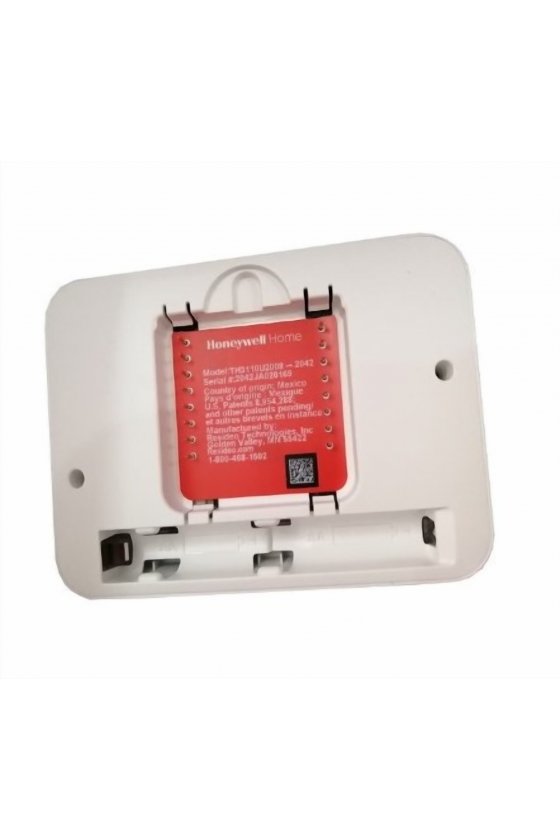

UWP Mounting System

Electrical Ratings

20 to 30 Vac

Frequency

50 Hz; 60 Hz

Stages

Up to 1 Heat/1 Cool Heat Pumps; Up to 1 Heat/1 Cool Conventional Systems

Electrical Connections

UWP Mounting System

Operating Humidity Range (% RH)

5 to 90% RH, non-condensing

Supply Voltage

20 to 30 Vac

Switch Positions (System)

HEAT-OFF-COOL-AUTO

Switch Positions (Fan)

AUTO-ON

Operating Temperature Range (F)

37 F to 102 F

Operating Temperature Range (C)

2.7 C to 39 C

Shipping and Storage Temperature Range (F)

- 20 F to 120 F

Shipping and Storage Temperature Range (C)

- 28.9 C to 48.9 C

LEDs

LED Back Light

Power Method

Battery or Hardwired

Ambient Temperature Range (C)

0 C to 50 C

Ambient Temperature Range (F)

32 F to 120 F

Color

White

Display

Medium display, Soft Key Controls

Accuracy (F)

±1 F

Accuracy (C)

± 0.5 C

Differential Temperature (F)

±1 F

Differential Temperature (C)

± 0.5 C

Switch Type

Relay

Programmability

Non-programmable

Terminal Designations

RC, R, C, W, O/B, Y, G, K

Display Size

3.79 sq. in.

Temperature Control Mode Selections

Ambient Air Temperature

Changeover

Auto or Manual

Setting Temperature Range (F)

Heat: 40 F to 90 F; Cool: 50 F to 99 F

Setting Temperature Range (C)

Heat: 4.5 C to 32 C; Cool: 10 C to 37 C

Cool Current

0.02 A to 1.0 A running

Heat Current

0.02 A to 1.0 A

Fan Current

0.02-.05 A
