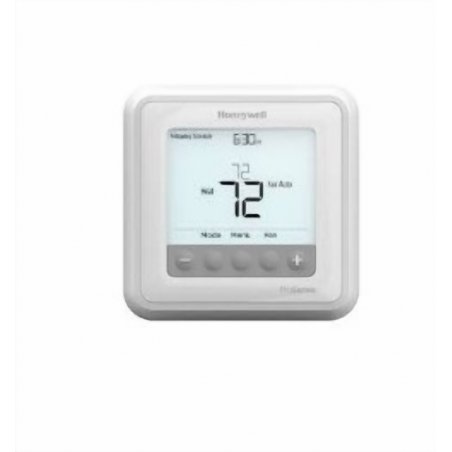

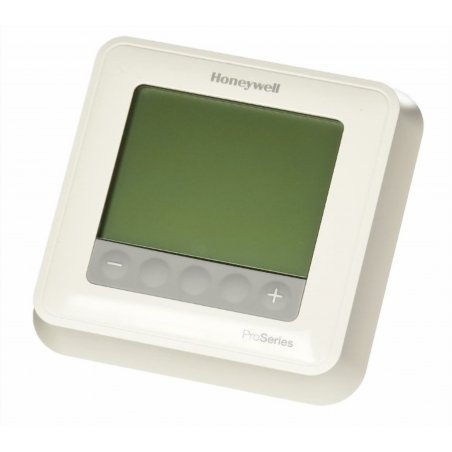

TH6220U2000 Termostato para expansión directa 2H 2C alimentación a 24 VAC cuadrado

Referencia TH6220U2000

Termostato programable T6 Pro con etapas de hasta 2 bombas de calor de calor/1 frío o sistemas convencionales de 2 calor/2 fríos.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

TH6320U Up to 3H/2C heat pump and 2H/2C conventional
TH6220U Up to 2H/1C heat pump and 2H/2C conventional
TH6210U Up to 2H/1C heat pump and 1H/1C conventional
7-day, 5-2, 5-1-1 or non-programmable

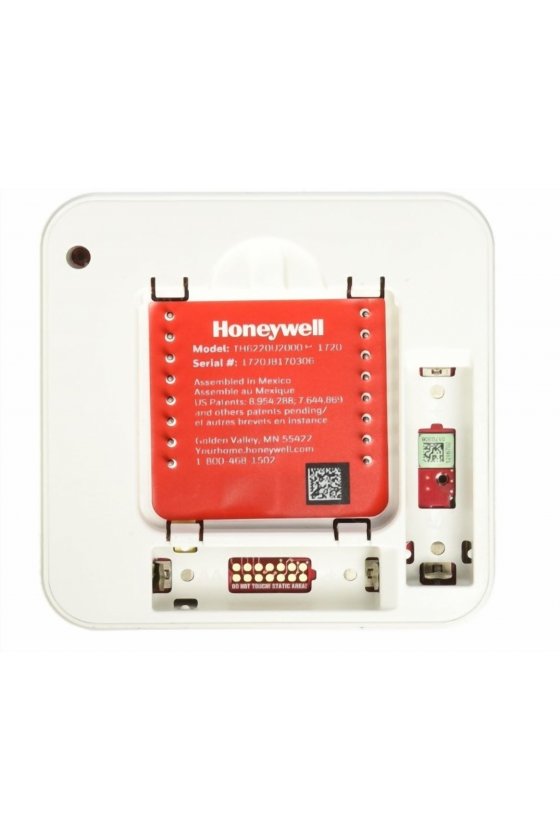

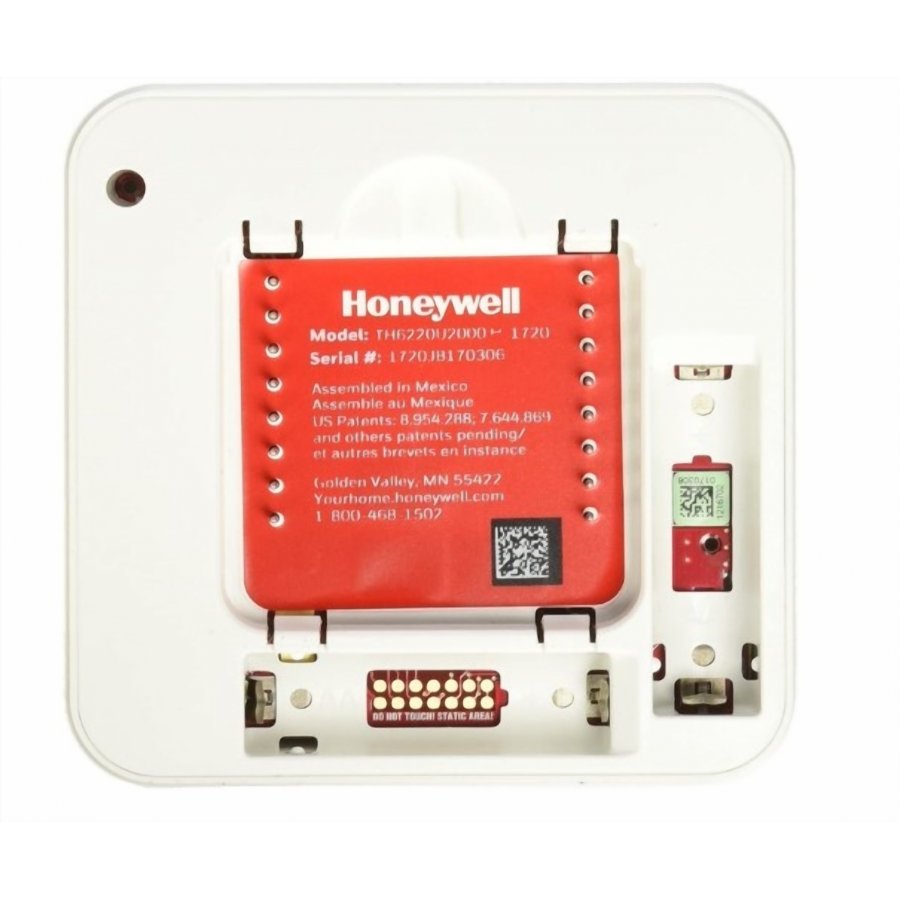

Uses the UWP mounting system that’s standard across all T Series thermostats
Easy upsell to a connected Lyric T6 Pro Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
Optional dual fuel (TH6320U & TH6220U only)
Optional wired indoor/outdoor sensors (TH6320U & TH6220U only)
Simple push-button functionality
Filter change reminders
5-year warranty

Product Specifications

Application: Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot water Fan Coil, Geothermal Heat Pump, Air to Air Heat Pump, Hot Water Radiant Heat, Steam
Dimensions (in.): 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Dimensions (mm): 103.6 mm long x 103.6 mm wide x 28 mm deep
Includes: Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
Item Type: Product
Mounting: UWP Mounting System
Electrical Ratings: 20 to 30 Vac
Stages: Up to 2 Heat/1 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
Electrical Connections: Honeywell UWP Mounting System
Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
Supply Voltage: 20 to 30 Vac
Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
Operating Temperature Range (F): 37 F to 102 F
Operating Temperature Range (C): 2.7 C to 39 C
Shipping and Storage Temperature Range (F): - 20 F to 120 F
Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
LEDs: LED Back Light
Power Method: Battery or Hardwired
Ambient Temperature Range (C): 0 C to 50 C
Ambient Temperature Range (F): 32 F to 120 F
Display: Large Display, Soft Key Controls
Accuracy (F): 1 F
Accuracy (C): 0.5 C
Differential Temperature (F): ± 1 F
Differential Temperature (C): ± 0.5 C
Interstage Differential Temperature (F): 1 to 1.5 F Multistage models only
Programmability: 7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display Size: 5.44 sq. in.
Temperature Control Mode Selections: Ambient Air Temperature
Changeover: Auto or Manual
Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
Heat Current: 0.02-1.0 A
Fan Current: 0.02-.5 A
External Sensors Available: Optional: Outdoor -- C7089U1006, Remote Indoor — C7189U1005
