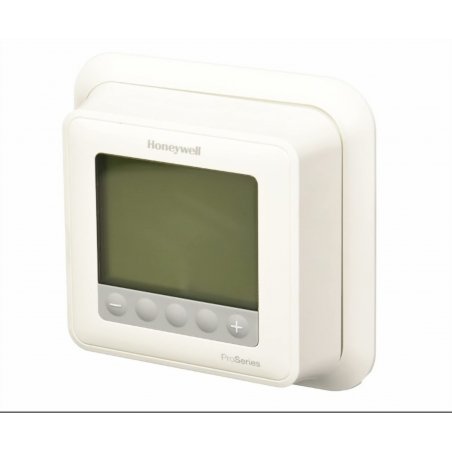

TH6320U2008 Termostato programable T6 pro con etapas de hasta 2 bombas de calor y 1 frío

Referencia TH6320U2008

Termostato programable T6 Pro con etapas de hasta 3 bombas de calor de calor/2 de frío o 2 sistemas convencionales de calor/2 de frío

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

TH6320U Up to 3H/2C heat pump and 2H/2C conventional
TH6220U Up to 2H/1C heat pump and 2H/2C conventional
TH6210U Up to 2H/1C heat pump and 1H/1C conventional
7-day, 5-2, 5-1-1 or non-programmable
Uses the UWP mounting system that’s standard across all T Series thermostats
Easy upsell to a connected Lyric T6 Pro Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
Optional dual fuel (TH6320U & TH6220U only)
Optional wired indoor/outdoor sensors (TH6320U & TH6220U only)
Simple push-button functionality
Filter change reminders
5-year warranty

Product Specifications

Application: 24 Vac systems; Gas, Oil, Electric Warm Air; Hot water Coil; Gas, Oil, Electric Hydronic; or Steam / Gravity Systems

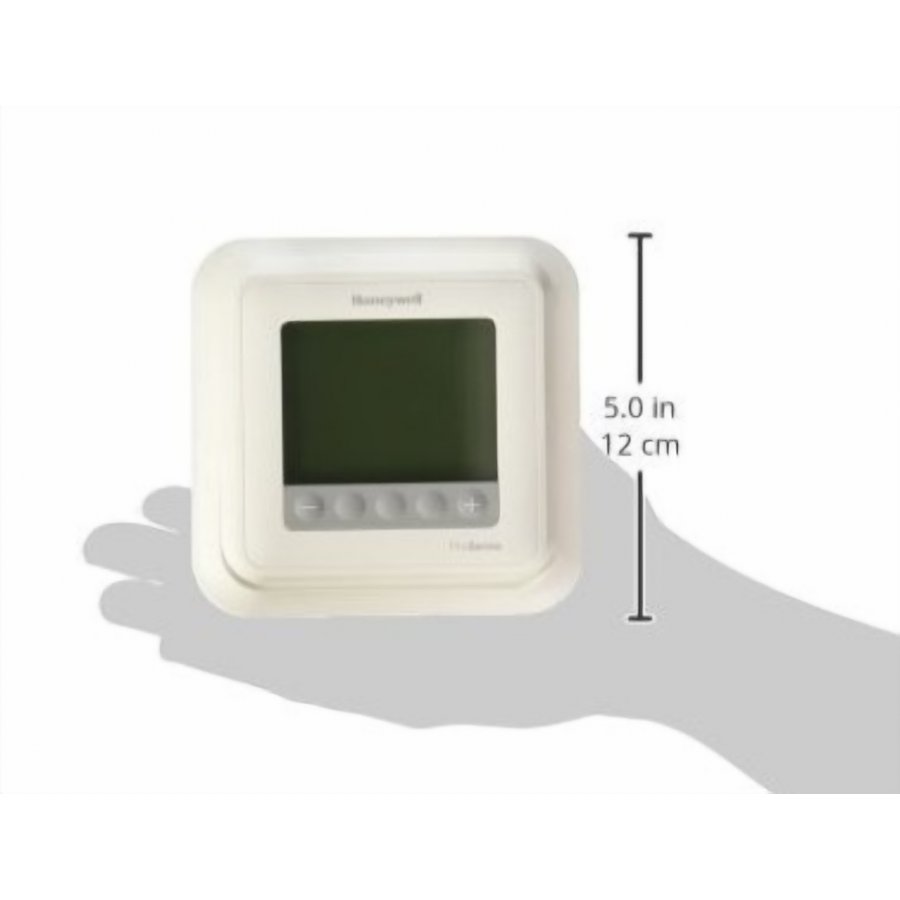

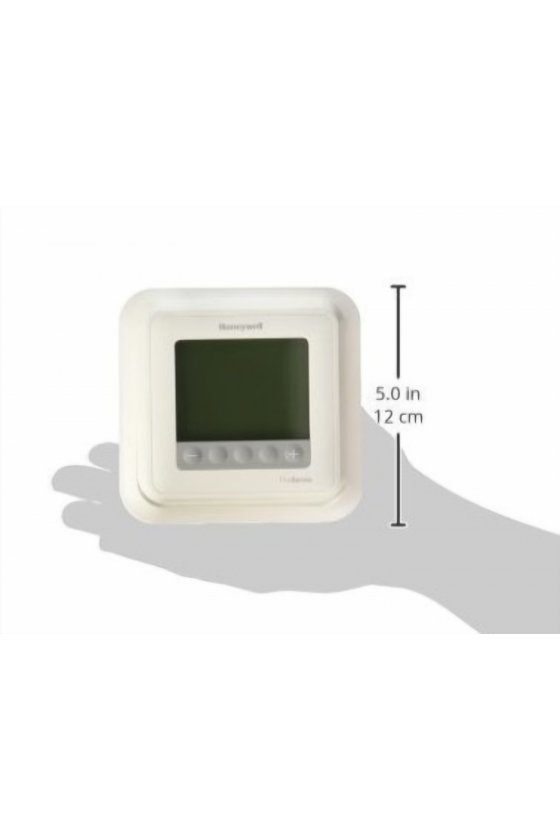

Dimensions (in.): 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Dimensions (mm): 103.6 mm long x 103.6 mm wide x 28 mm deep
Includes: Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
Item Type: Product
Mounting: UWP Mounting System
Electrical Ratings: 20 to 30 Vac
Stages: Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
Electrical Connections: Honeywell UWP Mounting System
Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
Supply Voltage: 20 to 30 Vac
Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
Operating Temperature Range (F): 37 F to 102 F
Operating Temperature Range (C): 2.7 C to 39 C
Shipping and Storage Temperature Range (F): - 20 F to 120 F
Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
LEDs: LED Back Light
Power Method: Battery or Hardwired
Ambient Temperature Range (C): 0 C to 50 C
Ambient Temperature Range (F): 32 F to 120 F

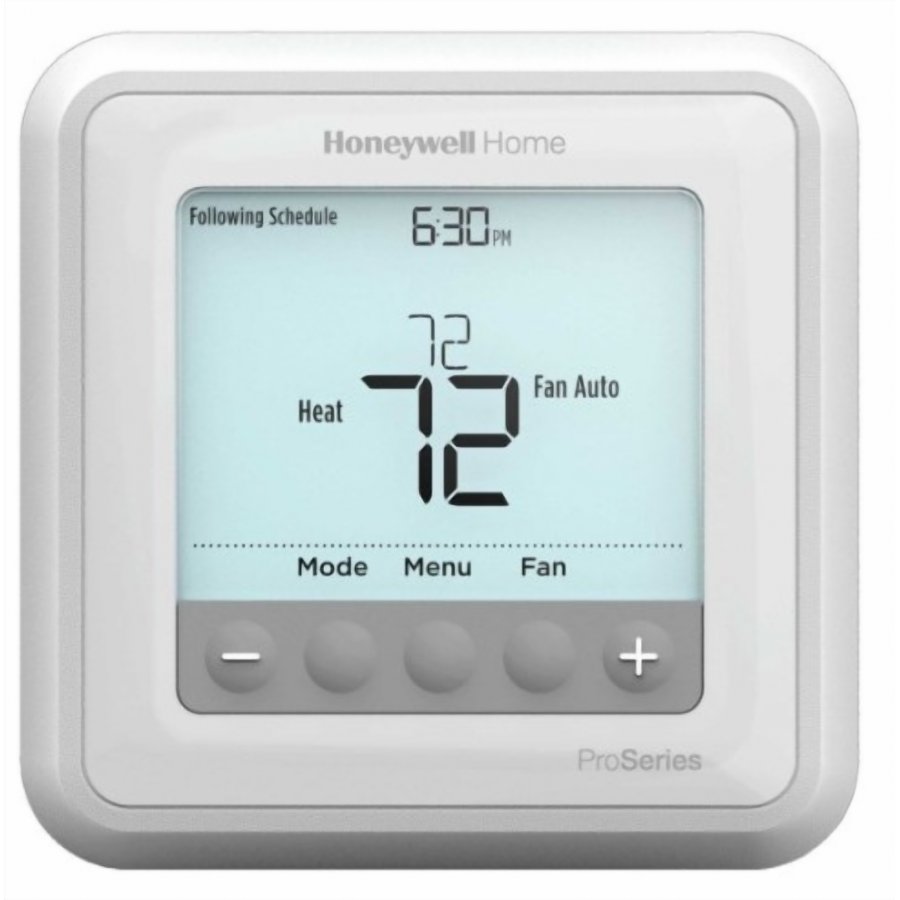

Display: Large Display, Soft Key Controls
Accuracy (F): 1 F
Accuracy (C): 0.5 C
Differential Temperature (F): ± 1 F
Differential Temperature (C): ± 0.5 C
Interstage Differential Temperature (F): 1 to 1.5 F Multistage models only
Programmability: 7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display Size: 5.44 sq. in.
Temperature Control Mode Selections: Ambient Air Temperature
Changeover: Auto or Manual
Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
Heat Current: 0.02-1.0 A
Fan Current: 0.02-.5 A
External Sensors Available: Optional: Outdoor -- C7089U1006, Remote Indoor — C7189U1005
