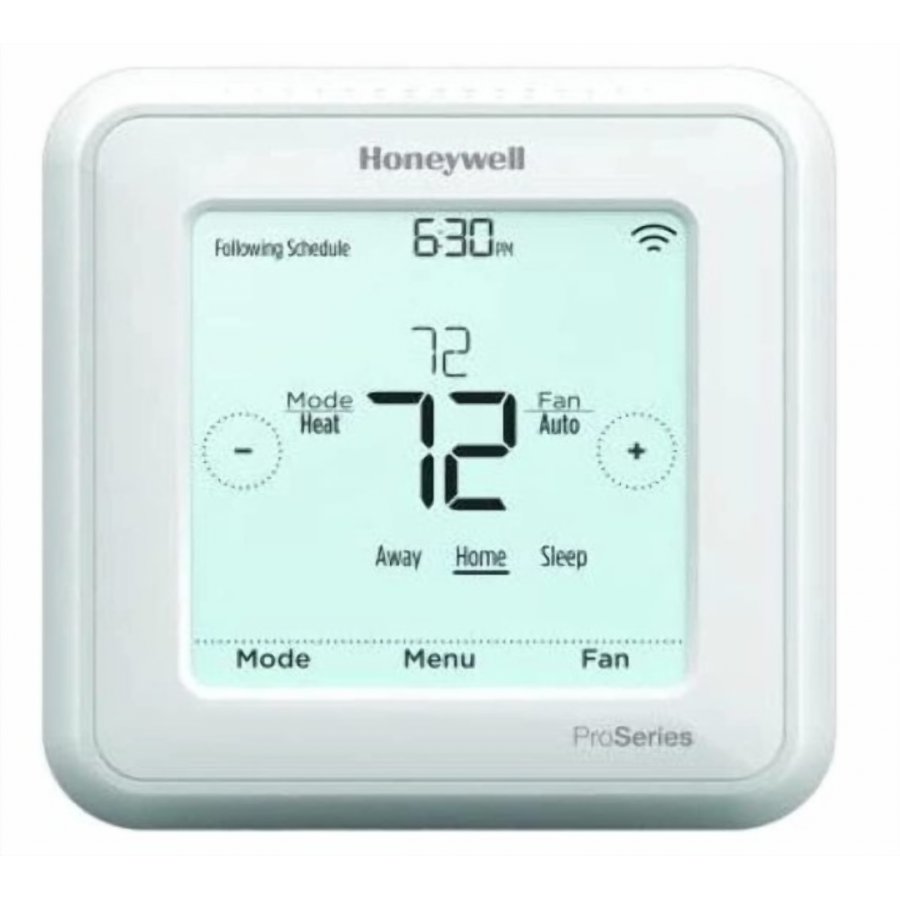

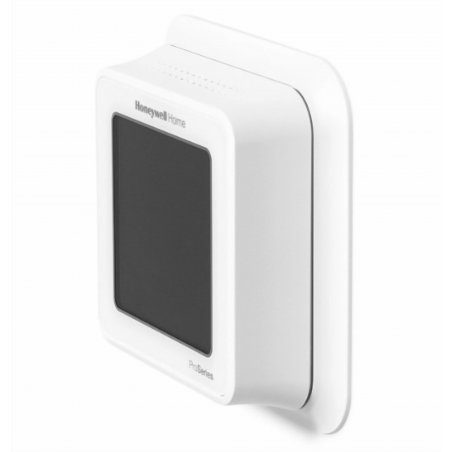

TH6320ZW2003 Termostato programable z-wave T6 Pro inteligente con etapas hasta 3h 2c heat pump o 2h 2c

Referencia TH6320ZW2003

Termostato programable T6 Pro diseñado para funcionar con cualquier controlador o puerta de enlace compatible con Z-Wave; sin embargo, se recomienda un controlador Z-Wave Plus habilitado para seguridad para utilizar todas las funciones del termostato. Funciona con bomba de calor o sistemas convencionales y tiene bloqueo de calor auxiliar y de combustible dual con sensor exterior.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

Up to 3H/2C Heat Pump systems or up to 2H/2C Conventional systems
Z-Wave Plus certified with improvement in range, battery life, and bandwidth
Backwards compatibility
Selectable ranges stops
Keypad lockout
DST Enabled
Time based 7-day, 5-1-1 or 5-2 day programmable, non-programmable, or occupancy controlled with Z-wave panel/app integration
5 Year Warranty

Product Specifications

Application: Z-wave systems. 24 Vac systems; Gas, Oil, Electric Warm Air; Hot water Coil; Gas, Oil, Electric Hydronic; or Steam / Gravity Systems
Dimensions (in.): 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Dimensions (mm): 103.6 mm long x 103.6 mm wide x 28 mm deep

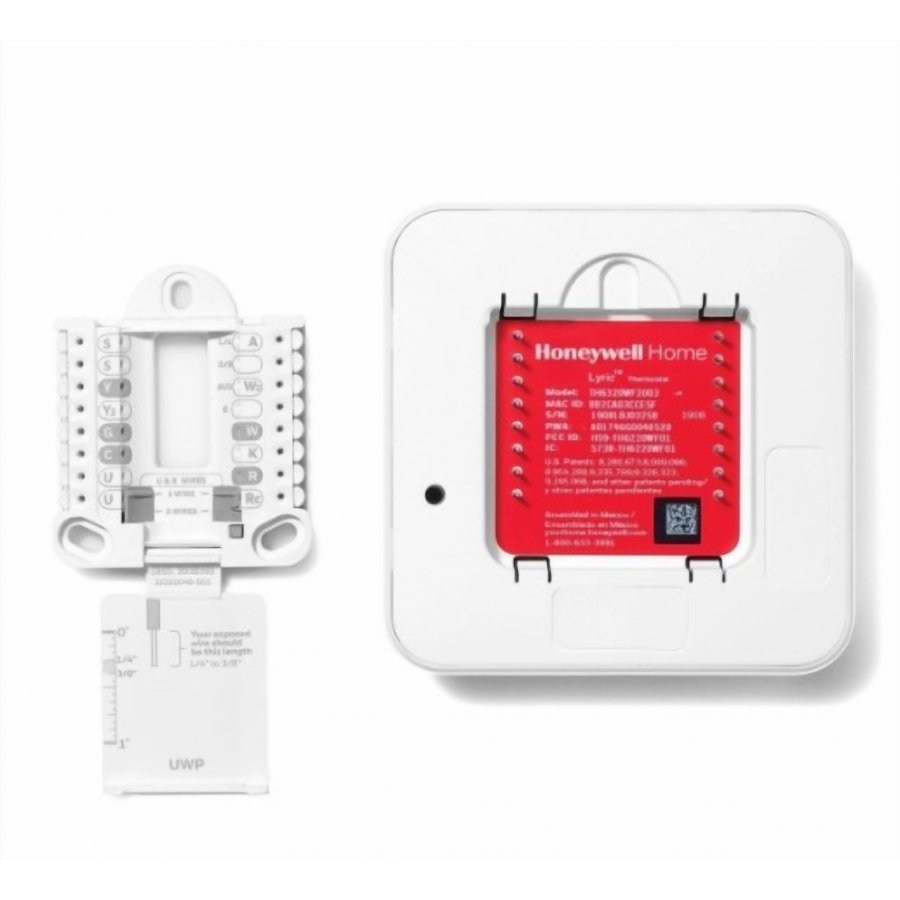

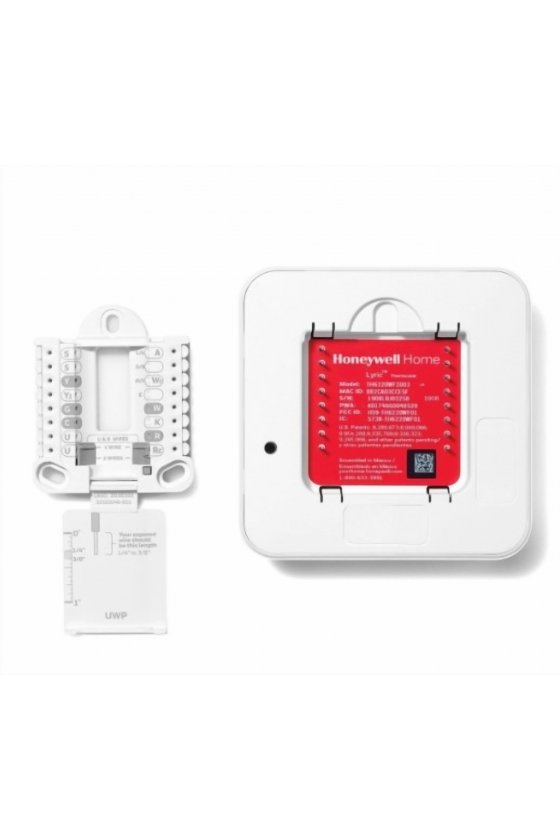

Includes: Thermostat, UWP mounting system, Installation (J-box) adaptor
Comments: Compliant with IC Regulations RSS-GEN
Item Type: Product
Mounting: UWP Mounting System
Electrical Ratings: 20 to 30 Vac
Frequency: 50 Hz; 60 Hz
Stages: Up to 3 Heat/2 Cool Heat Pumps + Dual fuel; Up to 2 Heat/2 Cool Conventional Systems
Electrical Connections: Honeywell UWP Mounting System
Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
Supply Voltage: 20 to 30 Vac
Switch Positions (System): HEAT-OFF-COOL-AUTO-EM HEAT
Switch Positions (Fan): AUTO-ON-CIRC
Operating Temperature Range (F): 37 F to 102 F
Operating Temperature Range (C): 2.7 C to 39 C
Shipping and Storage Temperature Range (F): - 20 F to 120 F
Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
Network Communications: Z-wave
LEDs: LED Back Light
Power Method: Battery or Hardwired
Ambient Temperature Range (C): 0 C to 50 C
Ambient Temperature Range (F): 32 F to 120 F
Color: White
Display: Touchscreen
Accuracy (F): 1 F
Accuracy (C): 0.5 C
Differential Temperature (F): ± 1 F
Differential Temperature (C): ± 0.5 C
Switch Type: Relay
Programmability: 7 day, 5-1-1 day, 5-2 day, 1 week, Occupancy through Z-wave app, or Non-programmable
Terminal Designations: RC, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, L/A, S, S
Display Size: 6.89 sq. in.
Temperature Control Mode Selections: Ambient Air Temperature
Changeover: Heat only
Setting Temperature Range (F): Heat: 40 F to 90 F
Setting Temperature Range (C): Heat: 4.5 C to 32.0 C
Cool Current: 0.02 A to 1.0 A running
Heat Current: 0.02-1.0 A
Fan Current: 0.02-.5 A
External Sensors Available: Optional: Outdoor -- C7089U1006, Remote Indoor — C7189U1005
Occupancy Sensor: Through Z-wave panel and App
