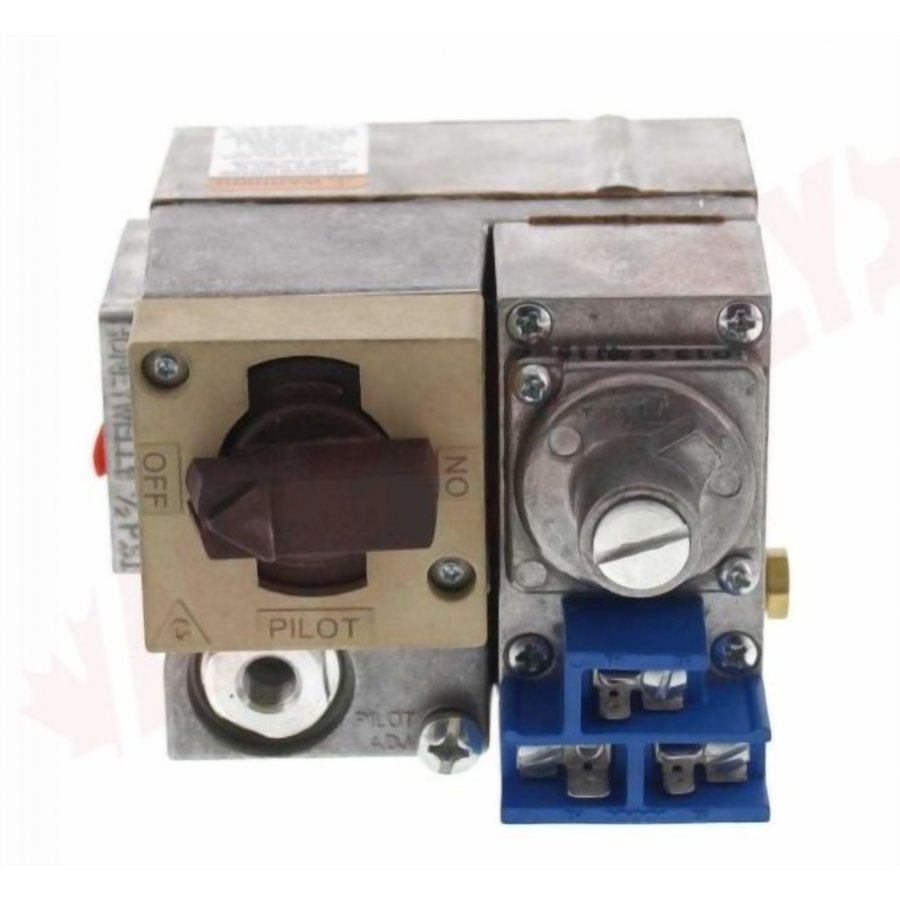

IMAGEN DE REFERENCIA

V800A1161 Válvula para gas natural 1/2x1/2 24v apertura estándar etapa única 3.5 in WC

V800A1161

Válvula de 1/2" x 1/2", 24 Vac, apertura estándar, 3.5" WC, válvula de gas de piloto permanente. Esta válvula se utiliza en aparatos de piloto permanente a gas con termopar de 30 mV. Estos controles de gas incluyen un control manual de gas. válvula, cierre de seguridad, operador automático de un solo milivoltaje, regulador de presión, filtro de gas piloto y ajuste de flujo, toma de presión y conector de termopar.

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Features

  • Include pilot flow adjustment screw.
  • Easy to install, adjust and service; all adjustments and connections are accessible from top of control.
  • Add separate energy cutoff (ECO) where codes call for dual safety shutoff.
  • Complete safety shutoff on pilot flame failure.
  • LITE-RITE (OFF-PILOT-ON) lighting sequence.
  • ECO connector for V800 models. Part No. 392451-1.

Product Specifications

Application
Single Stage
Dimensions (in.)
4 3/4 in high x 4 1/16 in. wide x 3 3/16 in. deep
Dimensions (mm)
121 mm high x 103 mm wide x 81 mm deep
Item Type
Product
Mounting
0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Frequency
60 Hz
Approvals, Underwriters Laboratories Inc.
UL Component Recognized MCCZ2.MH5323
Approvals, Canadian Standards Association
CSA International: 112395
Electrical Connections
Combination screw and 1/4 in. male quick connects.
Voltage
24 Vac
Operating Temperature Range (F)
32 F to 175 F
Operating Temperature Range (C)
0 C to 79 C
Body Pattern
Straight-through
Opening Characteristics
Standard Opening
Pressure Ratings (psi)
1/2 psi
Pressure Ratings (kPa)
3.5 kPa
Inlet/Outlet Size (in.)
1/2 in. x 1/2 in.
Pilot Gas Outlet
Compression fitting for 1/4 in. OD tubing
Pressure Tapping
Outlet pressure tap: 1/8 in. NPT with plug
Type of Fuel
Natural
Capacity (kBtuh)
At 1 in. wc p.d.-- 225,000 BTU/hr: 23,000 BTU/hr minimum, 225,000 BTU/hr maximum
Pressure Regulator
Standard
Pressure Regulator Setpoint (in. wc)
3.5 in. WC
Pressure Regulator Setpoint (kPa)
0.87 kPa
Ignition Type
Standing Pilot
