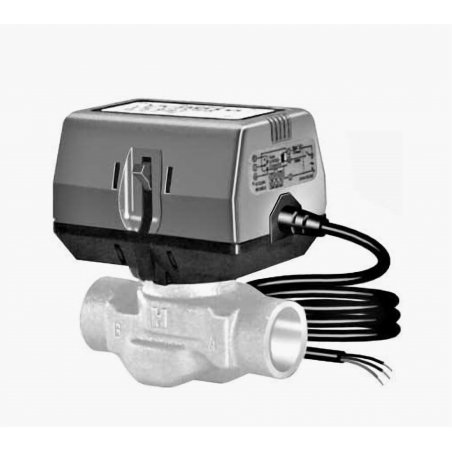

VC6931ZZ11 Actuador flotante de 0.4 in de 6 VA para válvulas serie VC de 2 vías

Referencia VC6931ZZ11

Actuador de válvula, 0,4 in, 5 a 95 % de HR, 6 VA, 120 s a 60 Hz Temporización, SP3T (Tri-State) flotante/señal de 24 VCA, suministro de 24 VCA, cable con clasificación plenum de 5 pies, 32 a 150 °F Ambiente, montaje de acoplamiento directo, cuerpo de plástico, para usar con: cuerpos de válvula de VC de la serie 3000 de 2 vías y de la serie 7000

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

Use with two-way or three-way valves.
Double insulated actuator.
Five foot plenum-rated cable.
Quick and easy replacement of moving parts.
Actuator head installation does not require draining the system.
Selectable/switchable electronic fail safe normally open or normally closed.
Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction.
All VC Series actuator-valve combinations provide 60 psi close-off.

Product Specifications

Application: HVAC
Dimensions (in.): 2.8 in. high x 3.7 in. wide x 2.7 in. deep
Dimensions (mm): 70 mm high x 94 mm wide x 68 mm deep
Includes: Flexible conduit adapter
Used With: 3000 Series 2-way and 7000 Series VC valve bodies only
Weight (lb): 0.84 lb
Weight (kg): 0.38 kg
Materials: Plastic housing
Item Type: Product
Mounting: Direct Coupled
Frequency: 50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.: UL Recognized, File# MH11826
Approvals, Canadian Standards Association: CSA Certified: LR1322-367
Electrical Connections: Cable
Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
Supply Voltage: 24 Vac
Power Consumption: Driving-- 6 VA
Shipping and Storage Temperature Range (F): -40 F to +150 F
Shipping and Storage Temperature Range (C): -40 C to +65 C
Approvals, CE: 89/336/ECC, 73/23/EEC
Ambient Temperature Range (C): 0 C to 65 C
Ambient Temperature Range (F): 32 F to 150 F
Electrical Connections (in.): 39 in.
Electrical Connections (mm): 1 m
Environmental, Electrical or Ingress Protection Rating: Double Insulated, IP40
Internal Auxiliary Switch: 0
Fluid Temperature (C): 95 C
Fluid Temperature (F): 203 F
Actuator Type: Valve
Control Signal: SP3T (tri-state) Floating; 24 Vac
Fail Safe Mode: Stays in place
Stroke (in.): 0.4 in.
Stroke (mm): 10 mm
Cable: Molded strain relief
Timing, Nominal: Driving @ 60 Hz (sec)-- 120 sec
Maximum Differential Pressure Ratings (Close-off) (psi): 60 psid
Maximum Differential Pressure Ratings (Close-off) (kPa): 400 kPa
Shaft Adapter Type: Self-alignment
Manual operation: Lever
