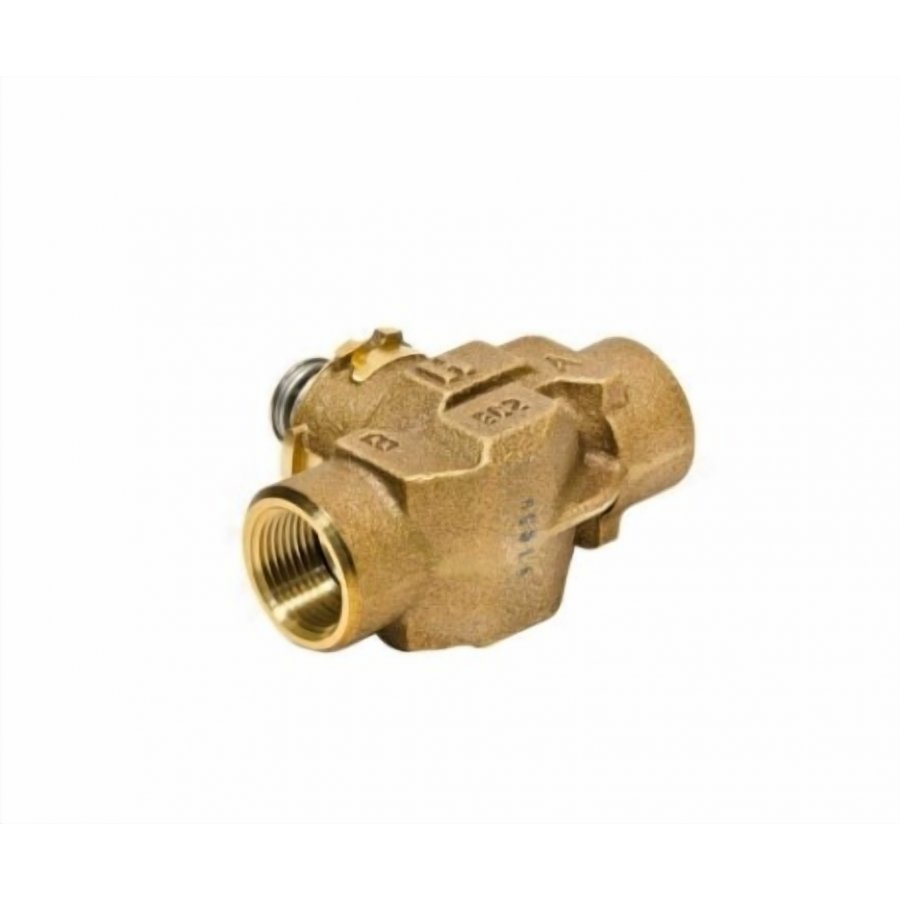

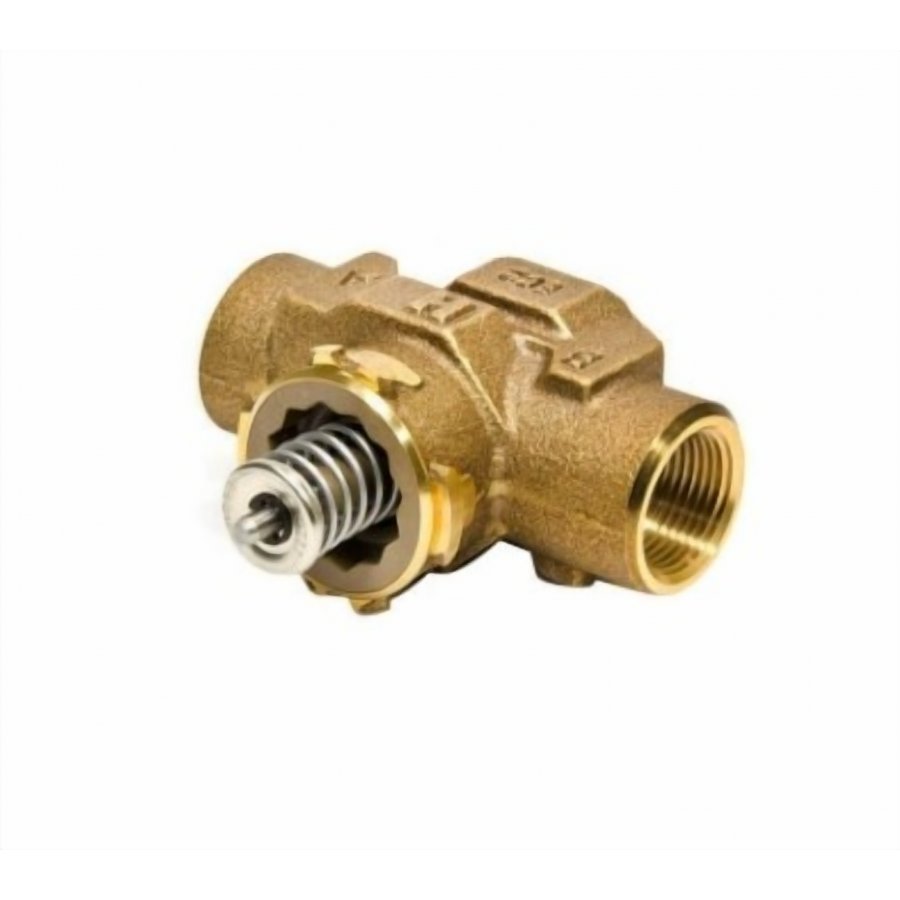

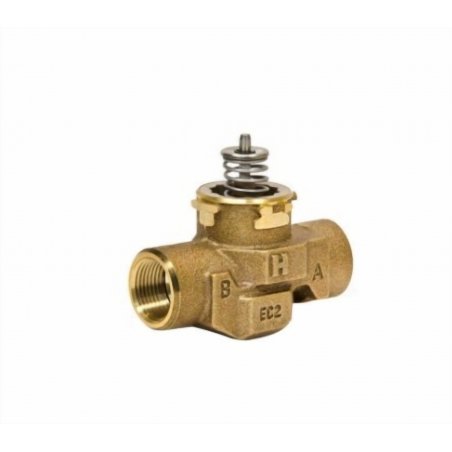

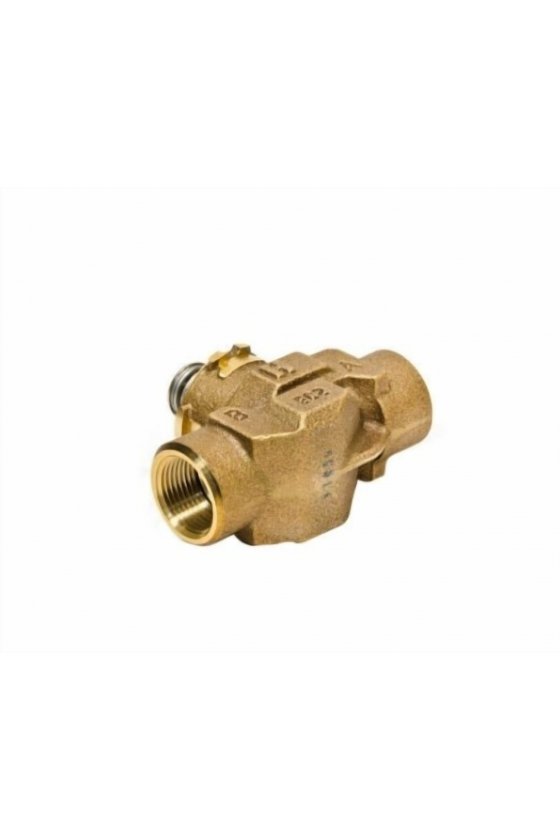

VCZBD1100 Válvula roscada de cuerpo de bronce de 1 1/4 in de 2 vías Cv 7 para actuador Vc

Referencia VCZBD1100

Válvula de jaula de cartucho, paso directo de 2 vías, tamaño nominal de 1-1/4 pulg., FNPT, operación segura de 300 psi, fluido de 34 a 203 °F, cuerpo de bronce, vástago de acero inoxidable, juntas tóricas de EPDM/goma de EPDM Empaque, 4-5/8 pulg. de alto x 4-5/16 pulg. de ancho

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

Bi-directional installation
1000-series valves for two-position control
High close-off rating independent of Cv
No tools required for actuator installation or removal
Actuator removal does not require draining system
Service is by replacement of cartridge, not valve body
Cartridge replacement rebuilds valve to factory-new condition
Used with VC actuators, on-off type
Timing: When used with VC series actuator - ON/OFF models with 6 sec
Ambient temperature range: 32 to 150 deg F
60 psi maximum differential pressure rating (close-off)
Capacity: 7 Cv
Valve action: Stem up to close A port
Controlled fluid: Chilled or hot water with up to 60% glycol
Ryton™, Noryl™ engineering plastic cartridge
Linear flow characteristic
Actuation must be purchased separately
Stem travel: 0.4 in
Characterized cartridge, can be controlled by either a low or a line voltage SPDT or SPST or floating controller
