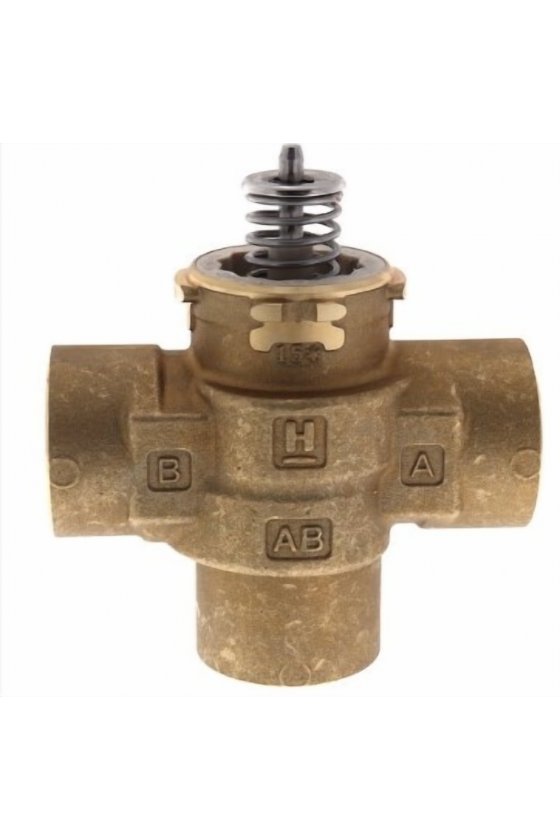

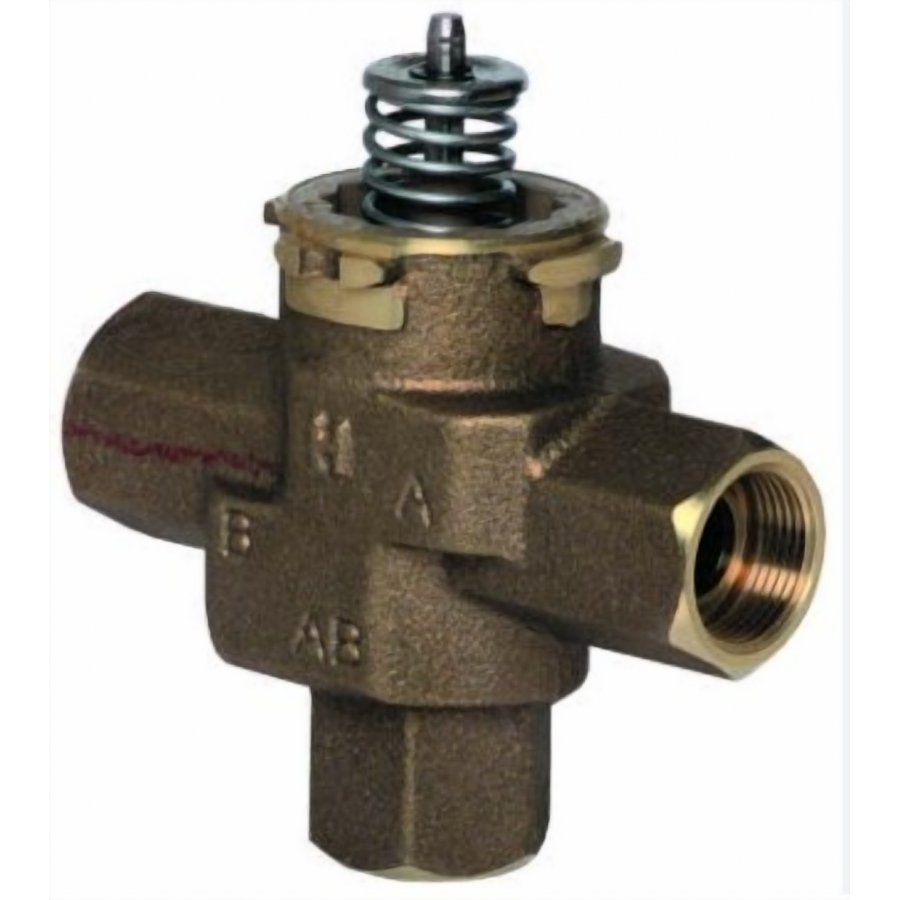

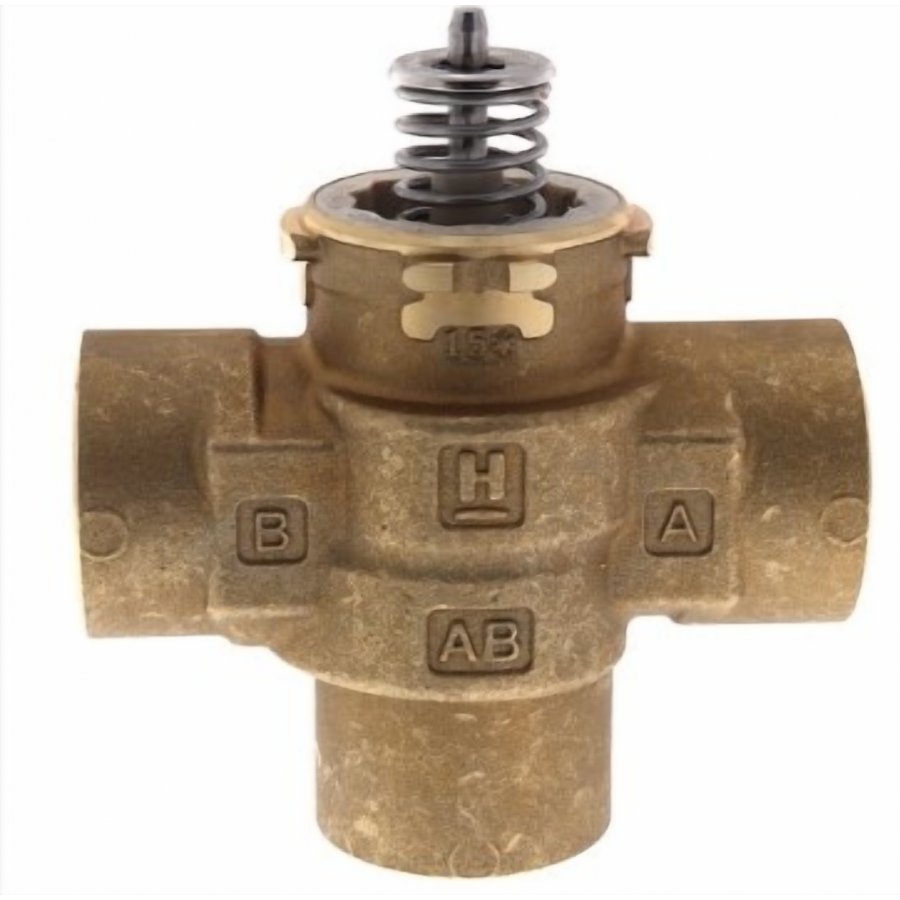

VCZMR6100 Válvula hidrónica roscada de 1 in de 3 vías Cv 8.6 para usar actuador Vc

Referencia VCZMR6100

Las válvulas de jaula de cartucho de tres vías están diseñadas para aplicaciones hidrónicas en un ambiente interior normal para controlar el flujo de solución de glicol de agua fría/caliente hasta una concentración del 60 %. Estas válvulas están diseñadas para el control de zona de los sistemas de calefacción/refrigeración.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

Quick open and linear flow characteristics available
Mixing or diverting application
A-AB-B body pattern
7000-series valves for floating and modulating non-fail safe applications
6000-series valves for two-position control
High close-off rating independent of Cv
Available with a variety of North American and international pipe fittings
No tools required for actuator installation or removal
Actuator removal does not require draining system
Service is by replacement of cartridge, not valve body
Cartridge replacement rebuilds valve to factory-new condition

Product Specifications

Maximum Safe Operating Pressure (psi): 300 psi
Maximum Safe Operating Pressure (kPa): 2068 kPa (20 Bar)
Used With: VC actuators, 2-position, On-Off Type
Comments: Characterized cartridge. Can be controlled by either a low or a line voltage SPDT or SPST or floating controller
Approvals, Canadian Standards Association: CSA Certified
Ambient Temperature Range (C): 0 C to 65 C
Ambient Temperature Range (F): 32 F to 150 F
Connection Type: Female NPT
Timing: When used with VC series Actuator--On/Off models with 6 seconds
Body Pattern: Three-way A-AB-B
Pipe Size (inch): 1 in.
Pipe Size (DN): DN25
Fluid Temperature (C): 1 C to 95 C
Fluid Temperature (F): 34 F to 203 F
Maximum Differential Pressure Ratings (Close-off) (psi): 60 psi
Maximum Differential Pressure Ratings (Close-off) (kPa): 414 kPa (4 bar)
Capacity (Cv): 8.3 Cv
Capacity (Kv): 7.1 kvs
Valve Action: Stem up to close A port
Valve Type: Cartridge Cage Valve
Controlled Fluid: Chilled or hot water with up to 60% Glycol
Materials (Body): Bronze
Materials (Seat): EPDM O-ring seals on Noryl piston
Materials (Stem): Stainless Steel
Materials (Cartridge): Ryton™, Noryl™ engineering plastic
Flow Characteristic: Linear
Actuation: Must be purchased separately
Stem Travel (in.): 0.4 in.
Stem Travel (mm): 10 mm
Materials (Packing): EPDM rubber
