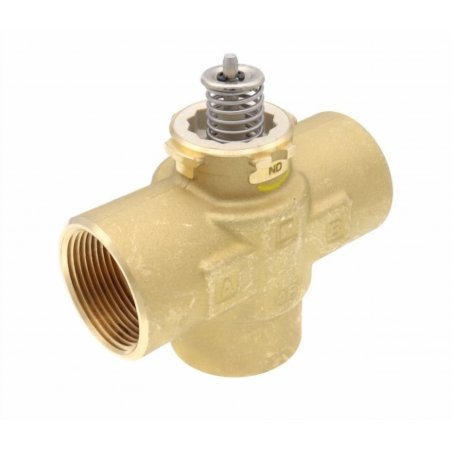

IMAGEN DE REFERENCIA

VCZND6100 Válvula hidrónica roscada de 1 1/4 in de 3 vías Cv 9 para usar actuador Vc

VCZND6100

Las válvulas de cartucho de tres vías están diseñadas para aplicaciones hidrónicas en un ambiente interior normal para controlar el flujo de solución de glicol de agua fría/caliente hasta una concentración del 60 %. Estas válvulas están diseñadas para el control de zona de los sistemas de calefacción/refrigeración.

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Features

  • Quick open and linear flow characteristics available
  • Mixing or diverting application
  • A-AB-B body pattern
  • 7000-series valves for floating and modulating non-fail safe applications
  • 6000-series valves for two-position control
  • High close-off rating independent of Cv
  • Available with a variety of North American and international pipe fittings
  • No tools required for actuator installation or removal
  • Actuator removal does not require draining system
  • Service is by replacement of cartridge, not valve body
  • Cartridge replacement rebuilds valve to factory-new condition

Product Specifications

Maximum Safe Operating Pressure (psi)
300 psi
Maximum Safe Operating Pressure (kPa)
2068 kPa (20 Bar)
Used With
VC actuators, 2-position, On-Off Type
Comments
Characterized cartridge. Can be controlled by either a low or a line voltage SPDT or SPST or floating controller
Approvals, Canadian Standards Association
CSA Certified
Ambient Temperature Range (C)
0 C to 65 C
Ambient Temperature Range (F)
32 F to 150 F
Connection Type
Female NPT
Timing
When used with VC series Actuator--On/Off models with 6 seconds
Body Pattern
Three-way A-AB-B
Pipe Size (inch)
1 1/4 in.
Pipe Size (DN)
DN32
Fluid Temperature (C)
1 C to 95 C
Fluid Temperature (F)
34 F to 203 F
Maximum Differential Pressure Ratings (Close-off) (psi)
60 psi
Maximum Differential Pressure Ratings (Close-off) (kPa)
414 kPa (4 bar)
Capacity (Cv)
9.0 Cv
Capacity (Kv)
7.7 kvs
Valve Action
Stem up to close A port
Valve Type
Cartridge Cage Valve
Controlled Fluid
Chilled or hot water with up to 60% Glycol
Materials (Body)
Bronze
Materials (Seat)
EPDM O-ring seals on Noryl piston
Materials (Stem)
Stainless Steel
Materials (Cartridge)
Ryton™, Noryl™ engineering plastic
Flow Characteristic
Linear
Actuation
Must be purchased separately
Stem Travel (in.)
0.4 in.
Stem Travel (mm)
10 mm
Materials (Packing)
EPDM rubber
