Technical Specifications:

• Description Provide electronic control of intermittent pilot ignition systems used on gas fired furnaces, boilers, and other heating appliances. ;
• Ignition System Type Intermittent Pilot ;
• Ignition Sequence Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place ;
• Typical Gas Control VR8204, VR8304 ;
• Type of Gas Natural or LP ;
• Flame Sense Single Rod or Two Rods ;
• Ignition Source Internal high voltage spark generator ;
• PrePurge 0 or 30 seconds ;
• Ignition Trials To Lockout continuous retry ;
• Lockout Timing 15 or 90 seconds ;
• Ignition Trial Time (sec) 15 or 90 seconds ;
• Maximum Valve Load @ 24 Vac (Amps) 1A Pilot, 2A Main @ 24Vac ;
• Typical Ignition Hardware Q345, Q3451 ;
• Dimensions (in.) 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep ;
• Dimensions (mm) 100 mm high x 138 mm wide x 67 mm deep ;
• Electrical Ratings 24 Vac ;
• Frequency 60 Hz ;
• Maximum Ambient Temperature (F) -40 F to +165 F ;
• Maximum Ambient Temperature (C) -40 C to +74 C ;

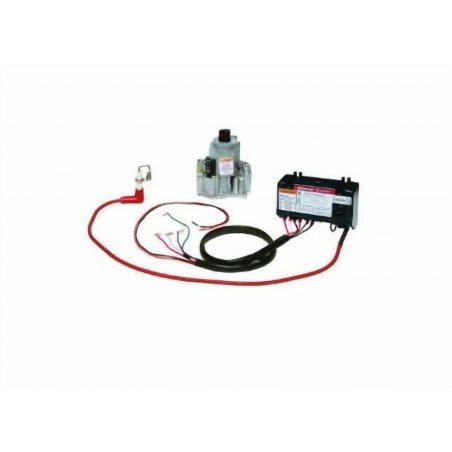

• Includes VR8204A2142 valve (1/2 x 1/2; 3.5″ WC setting; 150 kBtu/hr at 1″ p.d.) ;
• Flame Failure Response Time (sec) 2.0 sec ;
