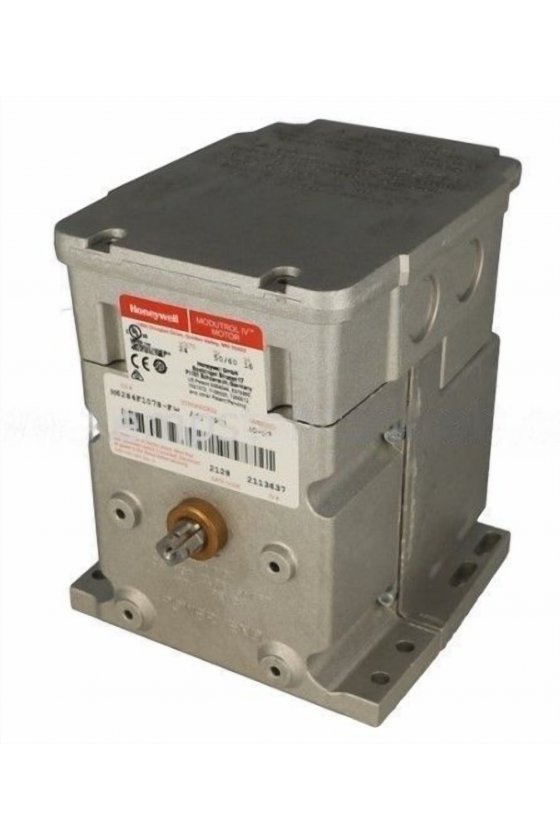

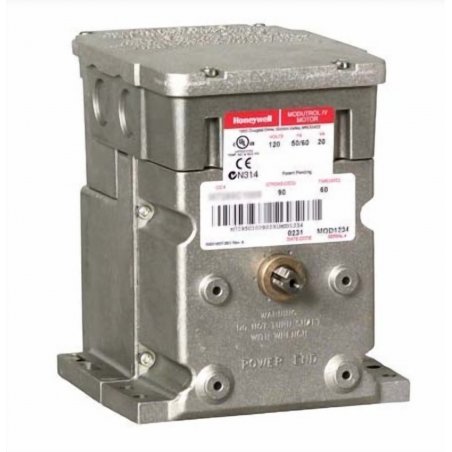

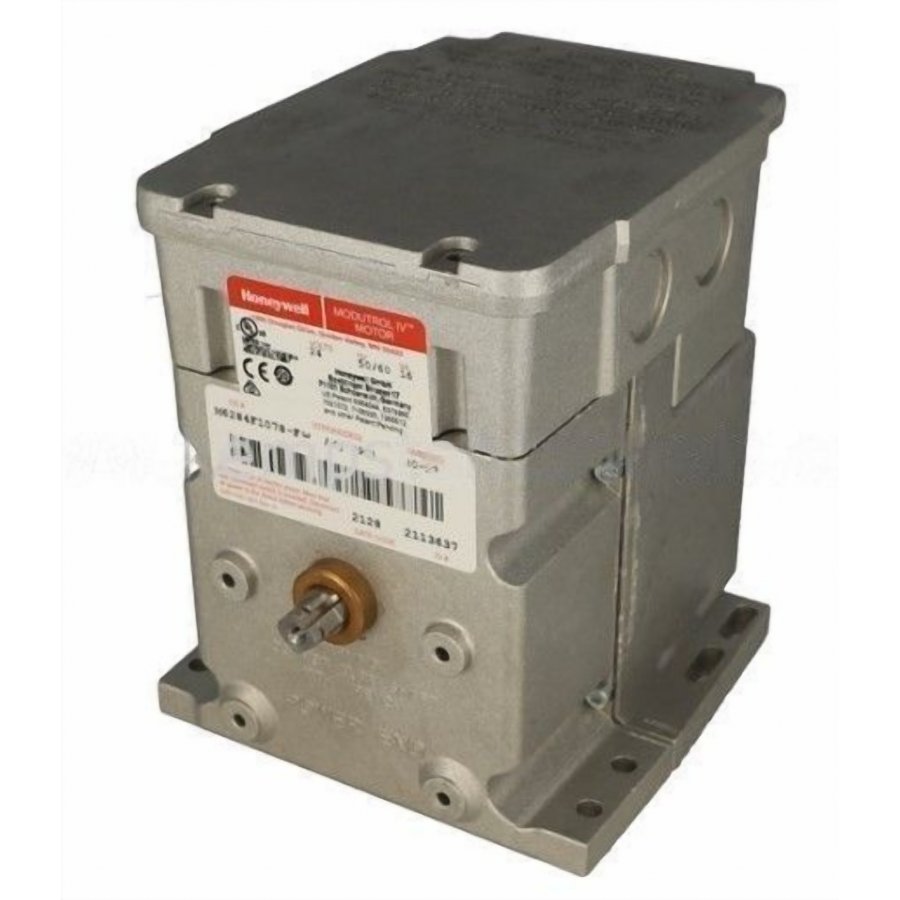

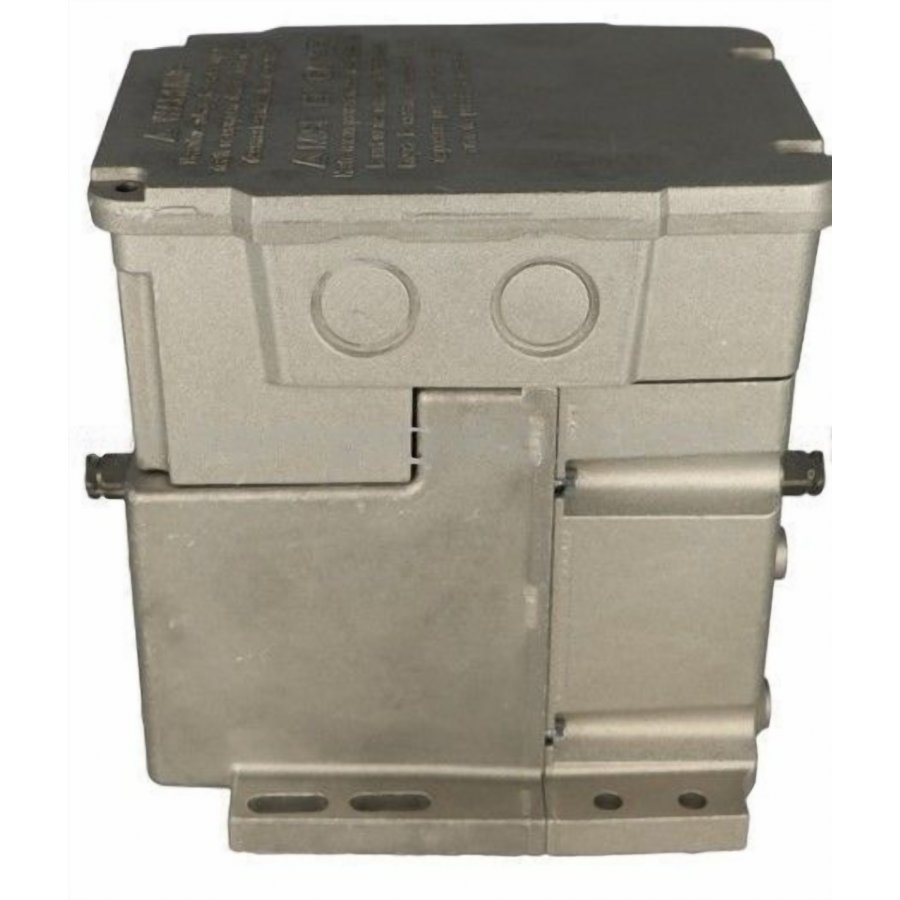

M7284Q1082 Modutrol 4-20ma 150 Lb-In 24/120/230v 2sw

Referencia M7284Q1082

Motor Modutrol IV, 24 V CA/120 V CA/230 V CA, sin retorno por resorte, par de 150 Lb-In, 2 interruptores auxiliares internos, temporización nominal de 30 segundos, modulación, señal de control de 4-20 Ma, carrera de 90 grados, ajuste de carrera de fábrica de 90 grados, pie Montado, eje cuadrado de doble extremo, caja de conexiones integral que proporciona protección contra la intemperie Nema 3.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Product Specifications

Application:Electric
Dimensions (in.):6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Dimensions (mm): 164 mm high x 140 mm wide x 185 mm deep
Includes:Transformer
Weight (lb): 5 lb
Comments:Enhanced models, additional repositions (160°); Adjustable zero and span for split range applications
Item Type:Product
Mounting:Foot-mounted
Frequency:50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc:Listed: File No. E4436, Guide No. XAPX for USA and Canada
Electrical Connections:Screw terminals
Supply Voltage:24V; 120V; 230V
Power Consumption:Driving– 15 VA
Approvals, CE: EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
Ambient Temperature Range (F):-40 F to +150 F
Ambient Temperature Range (C):-40 C to +60 C
Internal Auxiliary Switch:2
Auxiliary Switch Ratings: AFL – 120 Vac– 7.2A; ALR- 120 Vac– 43.2A; AFL – 240 Vac– 3.6A; ALR- 240 Vac– 21.6A
Shaft Dimensions (in.):375 in. Square
Control Signal:Modulating, 4-20 mA
Fail Safe Mode:Non-Spring Return
Torque Rating (lb-in.):150 lb-in.
Torque Rating (Nm):17 Nm
Shaft Rotation (upon control signal increase):Clockwise (as viewed from power end) (normally closed)
Factory Stroke Setting:90 degrees
