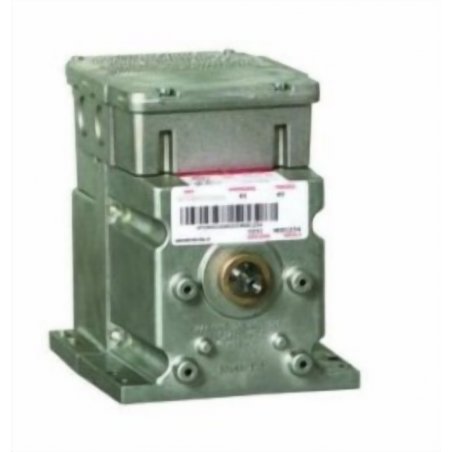

M9185D4008 Modutrol IV 24 V 50/60 Hz estructura NEMA 3 montaje en pie

Referencia M9185D4008

Motor eléctrico Modutrol IV™, serie: M9185, 24 V, 50/60 Hz, estructura NEMA 3, eje de 3/8 pulg., CCW, 60 pulg.-lb, montaje en pie, temperatura ambiente de -40 a 150 °F al ciclo de trabajo del 25 %, Aluminio fundido a presión, 5-1/2 pulgadas de ancho x 8-3/4 pulgadas de profundidad x 6-7/16 pulgadas de alto

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

Integral junction box provides NEMA 3 weather protection
Integral spring return returns motor to normal position when power is interrupted
Motor and circuitry operate from 24 VAC models available with factory installed transformer or a field added internal transformer
Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications
All models have dual shafts (slotted and tapped on both ends)
All models have auxiliary switch cams
Fixed torque throughout the entire voltage range
Field addable interface modules can be mounted in the junction box to upgrade the motor to series 70 (electronic) control
Motors are designed for either normally open or normally closed valves and dampers
