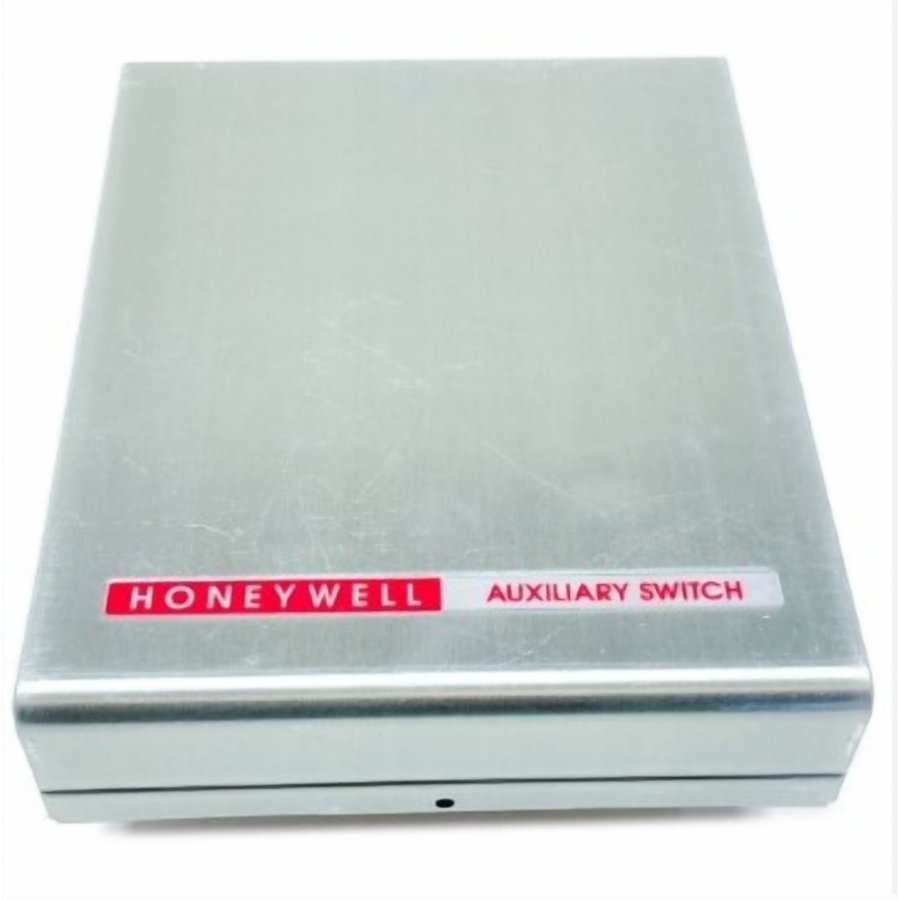

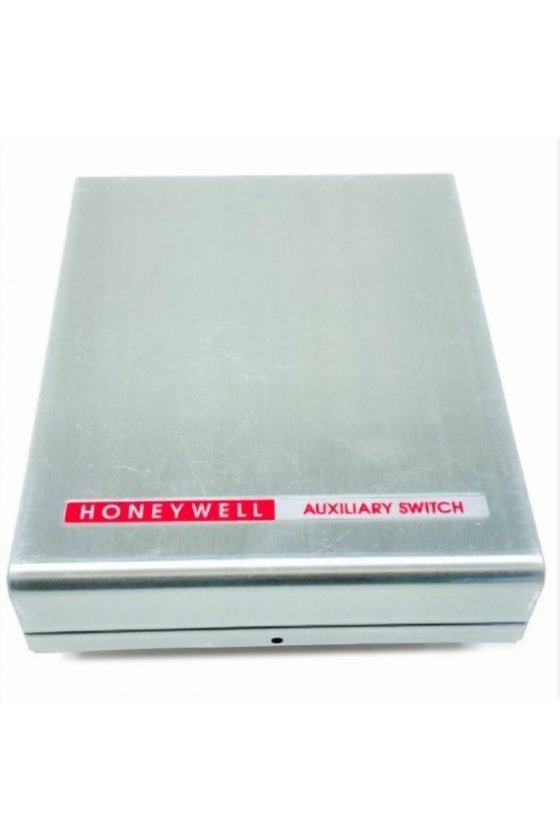

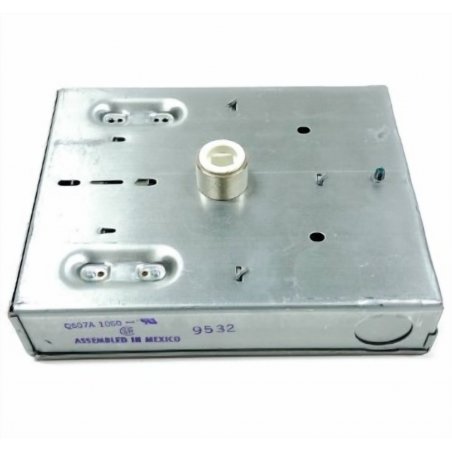

Q607A1050 Interruptor auxiliar para Modutrol 1p 2t

Referencia Q607A1050

Interruptor para el control de equipos auxiliares en función de la posición del eje del motor. Interruptor auxiliar, para usar con: Motor Modutrol III y IV, acero, cincado, 6-7/16 in de alto x 5-3/16 in de ancho x 2-1/8 in de profundidad, importado

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Features

Requires 220738A adapter bracket for use with Modutrol IV motors
Micro switch precision switches, adjustable
Indicate motor position by use of a scale plate anchored to a common shaft, which allows Q607 to be adjusted for operational sequence before mounting
Adjustable plate allows universal mounting on either end of motor
Wrap-around cover for easy access to switch adjustments and wiring
Maintenance-free protection of the switches and cams
Post 1969 Honeywell Modutrol Motors
Cover or gear end mounting
Screw terminals electrical connection
(1) Internal auxiliary switch
Auxiliary switch ratings: AFL - 120 VAC - 9.8 A, ALR - 120 VAC -58.8 A, AFL - 240 VAC - 4.9 A, ALR - 240 VAC - 29.4 A
Control signal: SPDT, ON/OFF switch
