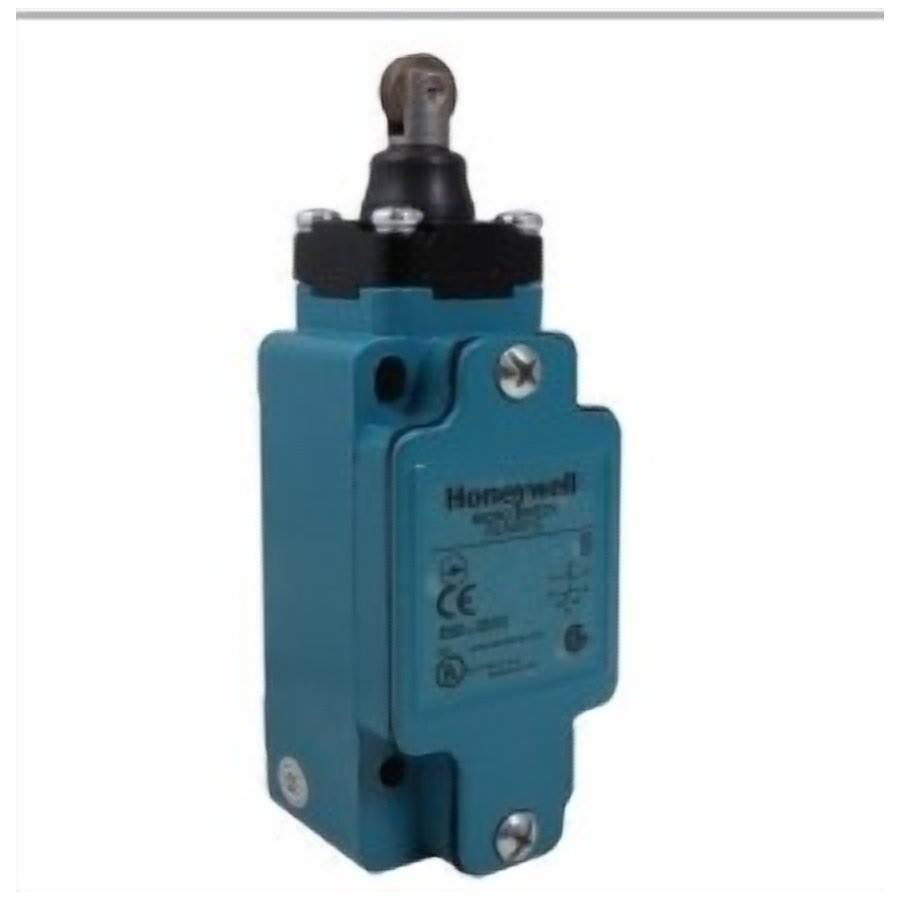

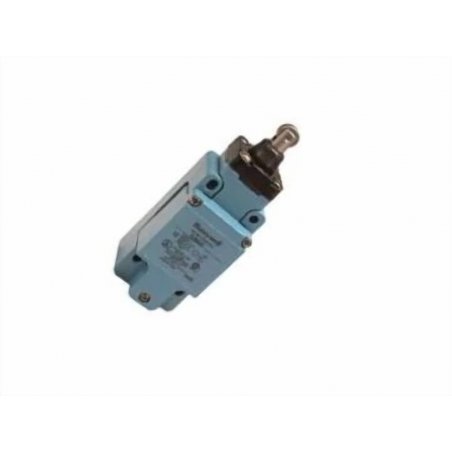

GLCC01E7B Interruptor 240 V AC 10 A

Referencia GLCC01E7B

Interruptor 240 V AC 10 A

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Features:
Designed to EN50041 standard, 30 mm x 60 mm mounting
Available as a standard body or plug-in body with same footprint
Wide range of actuator heads and levers
Side rotary switches factory set for CW and CCW actuation; field adjustable for CW only or CCW only
Certified for global applications; UL/CSA (Americas/Canada), CE (Europe), CCC (Asia-Pacific)
Conforms to IEC/EN 60947-5-1, EN45545-2 (GLA/GLF Series)
Sealed to IP67 and NEMA/UL 1, 4, 12, and 13
Operating temperatures as low as -40 degC to 85 degC [-40 degF to 185 degF]
Multiple connectivity options to meet most applications: four different threaded conduits, micro-change connectors, minichange connectors, Deutsch style 4-pin connector
One or two LED indicators available in switch body
Single pole double throw, two pole single throw contact blocks (1NC/1NO, 2NC, 2NO) are galvanically (electrically) isolated (Zb) and designed with bifurcated contacts
Two pole double throw contact block (2NC/2NO) has each pole galvanically (electrically) isolated (Zb)
Normally closed contacts are positive opening , except center neutral style
Contact blocks are available as snap action or slow action
Analog output available with side rotary actuator
Mechanical life up to 15 million operations

Applications:
Aerial lifts, boom lifts
Automotive assembly lines and machining centers
Agriculture equipment
Conveyors
Doors and apertures
Material handling
Machine tools
Railroad locomotives and railroad signaling equipment
Transportation hubs
Valves
