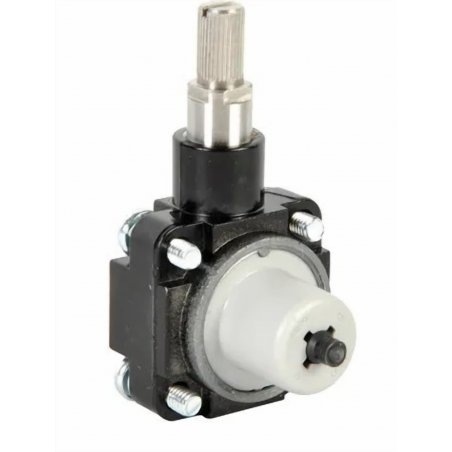

GLZ1AA Actuador de límite rotatorio momentáneo serie GLZ3

Referencia GLZ1AA

La serie de interruptores de límite MICRO SWITCH™ GLA de Honeywell está diseñada según los estándares globales EN50041 y es adecuada para aplicaciones en todo el mundo. El diseño modular (cabezales/actuadores, cuerpos y bloques de contacto) del interruptor de límite permite una respuesta rápida para cumplir con las aplicaciones del cliente. La resistente carcasa de metal fundido a presión del interruptor es ideal para aplicaciones en interiores y exteriores donde se requiere un grado de sellado de carcasa IP o NEMA. Los contactos de acción rápida normalmente cerrados y los contactos de acción lenta normalmente cerrados son de apertura positiva.

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Features:
Designed to EN50041 standard, 30 mm x 60 mm mounting
Available as a standard body or plug-in body with same footprint
Wide range of actuator heads and levers
Side rotary switches factory set for CW and CCW actuation; field adjustable for CW only or CCW only
Certified for global applications; UL/CSA (Americas/Canada), CE (Europe), CCC (Asia-Pacific)
Conforms to IEC/EN 60947-5-1, EN45545-2 (GLA/GLF Series)
Sealed to IP67 and NEMA/UL 1, 4, 12, and 13
Operating temperatures as low as -40 degC to 85 degC [-40 degF to 185 degF]
Multiple connectivity options to meet most applications: four different threaded conduits, micro-change connectors, minichange connectors, Deutsch style 4-pin connector
One or two LED indicators available in switch body
Single pole double throw, two pole single throw contact blocks (1NC/1NO, 2NC, 2NO) are galvanically (electrically) isolated (Zb) and designed with bifurcated contacts
Two pole double throw contact block (2NC/2NO) has each pole galvanically (electrically) isolated (Zb)
Normally closed contacts are positive opening , except center neutral style
Contact blocks are available as snap action or slow action
Analog output available with side rotary actuator
Mechanical life up to 15 million operations

Applications:
Aerial lifts, boom lifts
Automotive assembly lines and machining centers
Agriculture equipment
Conveyors
Doors and apertures
Material handling
Machine tools
Railroad locomotives and railroad signaling equipment
Transportation hubs
Valves
